  • YASKAWA Servo Cable

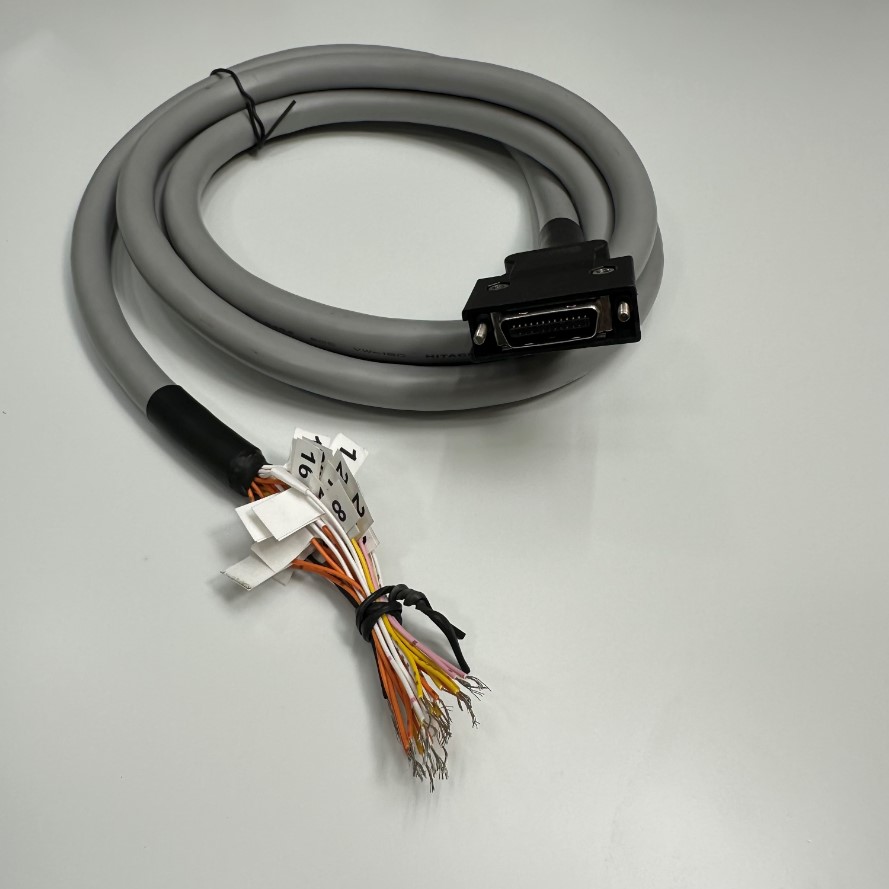

  • Cáp 5M 17ft Yaskawa JZSP-CSI02-5-E Cable For AC Servo Drive Yaskawa Sigma 5 Series, Sigma 7 Series I/O Signal CN1 Connector MDR 26 Pin Male to 26 Core OD 10mm Grey 80℃ 300V 26x0.15mm²

Cáp 5M 17ft Yaskawa JZSP-CSI02-5-E Cable For AC Servo Drive Yaskawa Sigma 5 Series, Sigma 7 Series I/O Signal CN1 Connector MDR 26 Pin Male to 26 Core OD 10mm Grey 80℃ 300V 26x0.15mm²

Mã SP: 12219

Thương hiệu: KTT Servo Drive I/O Cable

Loại sản phẩm: MDR 26 Pin Male to 26 Core

Đánh giá

:

Giá

:

3.000.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Việt Nam/KTT Servo Drive I/O Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

JZSP-CSI02-5-E Cable Servo Connector CN1 26 Core Signal Cable JZSP-CSI02-5-E For Yaskawa Servo Drive Sigma 5 Series, Sigma 7 Series I/O Signal

Yaskawa Servo Drive Sigma 7 Series I/O Signal Connector (CN1)

JZSP-CSI02-1-E

Yaskawa Servo Drive Sigma-5 Series

Specifications
Brand: Việt Nam/KTT Servo Drive I/O Cable
Model number: JZSP-CSI02-5-E I/O Cable Servo Drive Motor
Connector Type 1: MDR 26 Pin Male (3M 10326 Connector 26 Core Pitch 1.27mm Gold Plated SCSI MDR 26 Pin Male With Screw)
Connector Type 2: 26 Core Bare Wire Open
Number of Conductors: 26 x 0.15mm²
Conductor Size AWG: 26AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Cable Hitachi E41447 STYLE 2464 VW-1 Shielded
Outer diameter: 10.0mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 5M ~ 17ft
Cáp 5M 17ft Yaskawa JZSP-CSI02-5-E Cable For AC Servo Drive Yaskawa Sigma 5 Series, Sigma 7 Series I/O Signal CN1 Connector MDR 26 Pin Male to 26 Core OD 10mm Grey 80℃ 300V 26x0.15mm²
