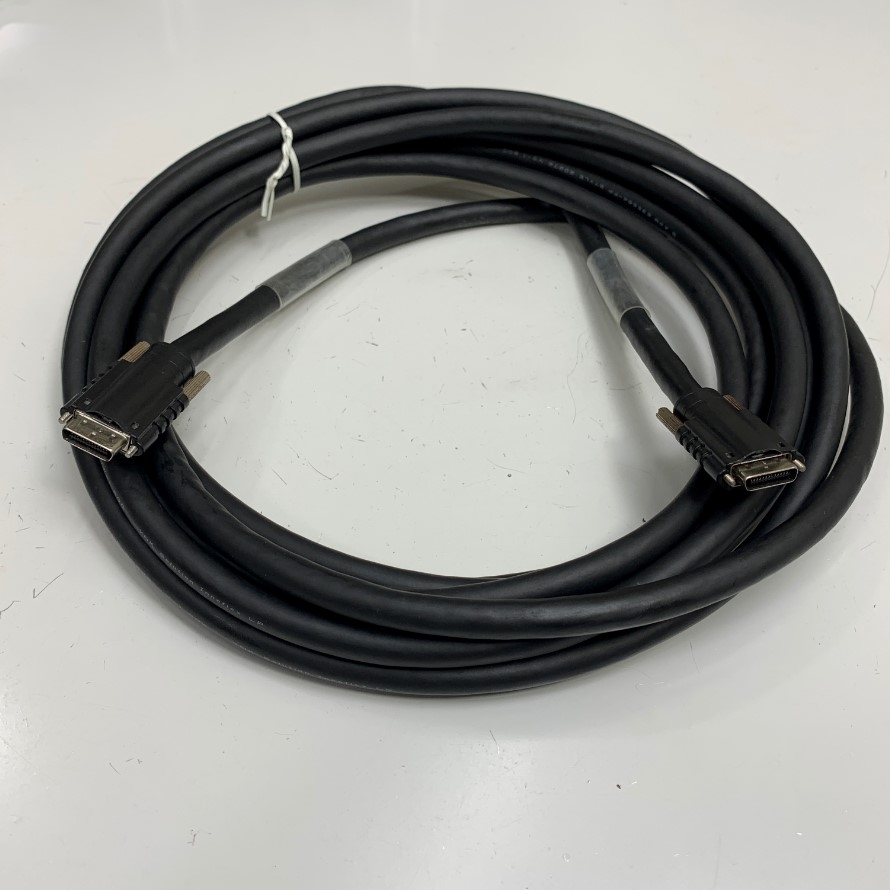

Cáp 5M 17ft Original Cable Camera Link PoCL SDR/SDR 26 Pin Male Plug For Camera Link Interface Industrial Camera Cable SDR/SDR

Mã SP: 10936

Thương hiệu: Original Camera link Cable

Loại sản phẩm: Cable Camera link SDR/SDR

Đánh giá

:

Giá

:

5.100.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Korea/Original Camera link SDR/SDR Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

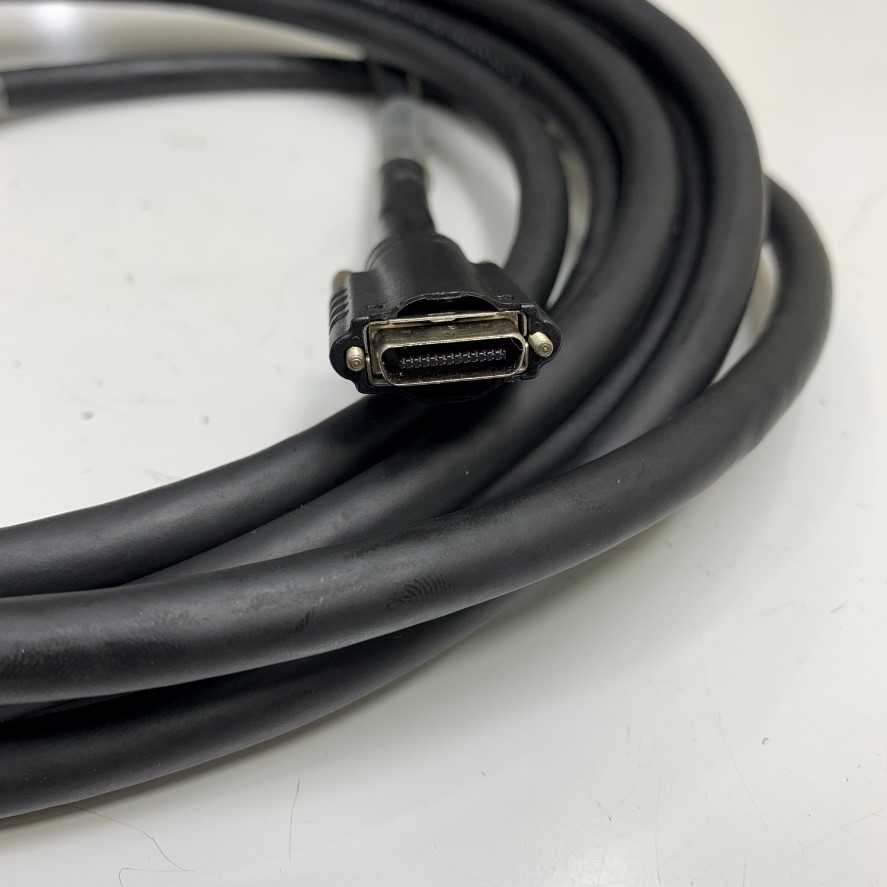

Camera Link Interface cable with SDR plug

Wiring Diagram MDR Straight To SDR Straight Cable

Wiring Diagram MDR Straight To SDR Straight Cable

Hàng tiêu chuẩn chất lượng cao đi thieo thiết bị camera link Industrial camera cable SDR-SDR
Korea/Original Camera link SDR/SDR Cable
Model: Camera Link Interface
Product Details
The Camera Link MDR to SDR/SDR cable has a larger MDR male connector and a smaller SDR/SDR male connector
Specification:
Connectors:
1 x SDR 26 Pin Connector Male Plug with screws
1 x SDR 26 Pin Connector Male Plug with screws
Camera Link 1.3 specification
Supports Power over Camera Link (PoCL)
Voltage: 12V
Cable gauge: 28 AWG Data line

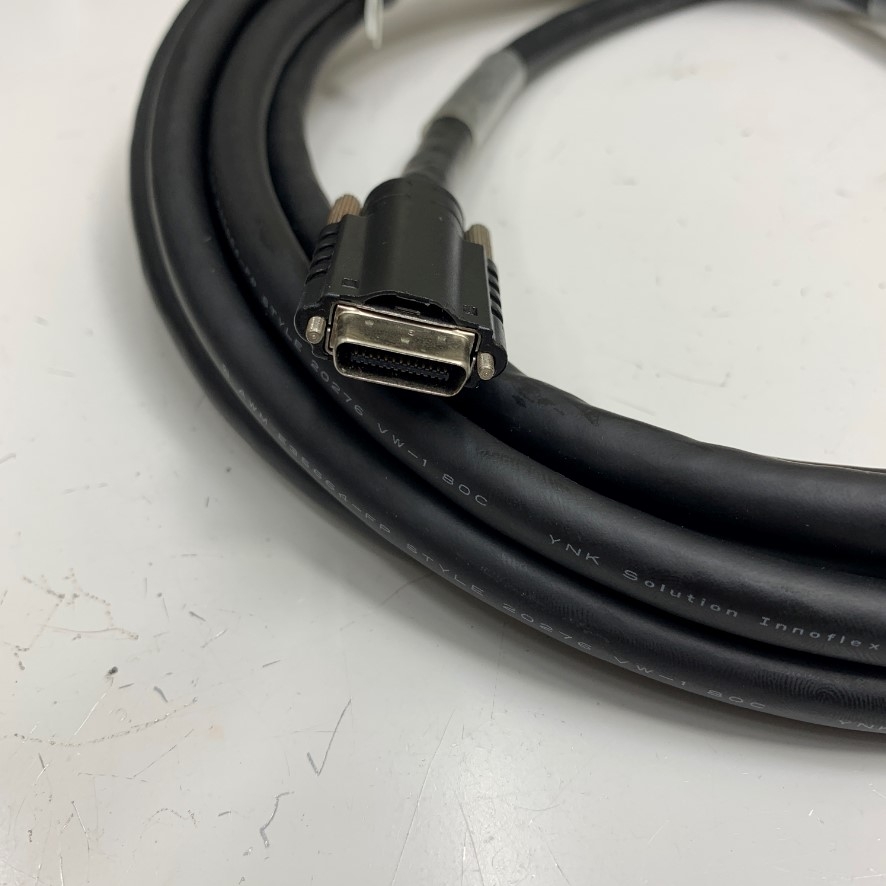

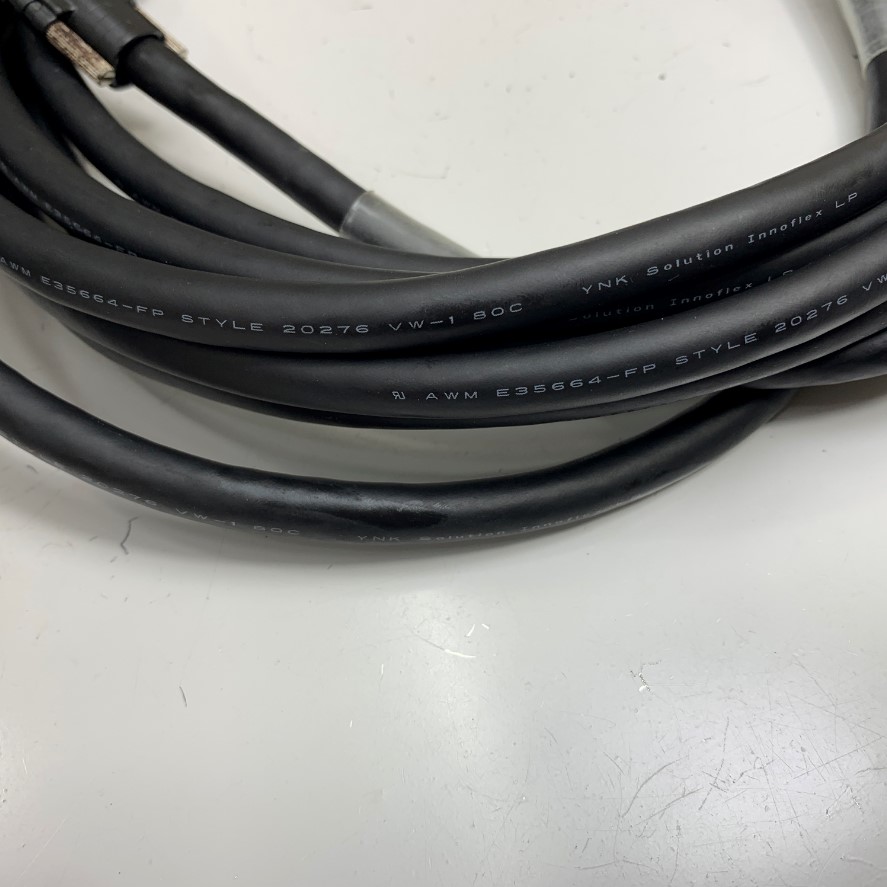

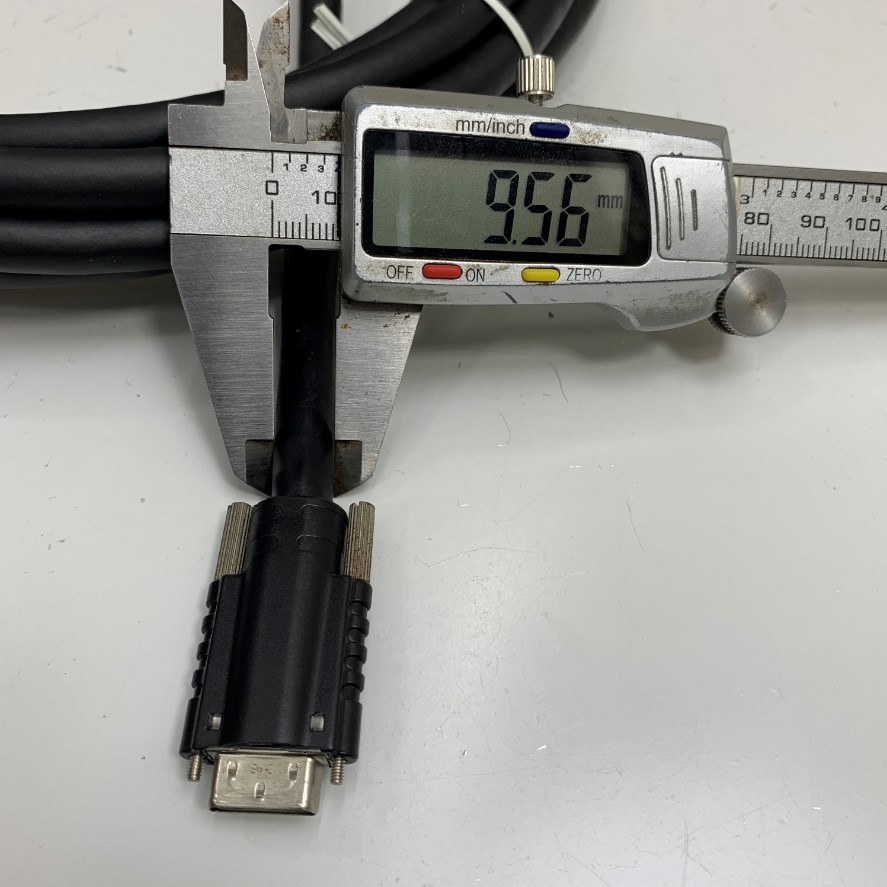

Cable diameter: 9.5mm - Cable AWM E35664-FP STYLE 20276 VW-1 80°C YNK Solution Innoflex LP
AWG: (28AWG*1P+AM)*11PCS+24AWG*2C+2D.
Data transfer rate up to: Base Configuration 2.04 Gb/s
Medium Configuration 4.08 Gb/s
Full Configuration 5.44 Gb/s
Colour: Black
PoCL: Yes
Cable Length: 5M ~ 17ft
Cáp 5M 17ft Original Cable Camera Link PoCL SDR/SDR 26 Pin Male Plug For Camera Link Interface Industrial Camera Cable SDR/SDR
