Cáp 5M 17ft MV-ACP-H12P-Open-HF-5M HIKROBOT Power/IO Cable Hirose 12 Pin Female HR10A-10P-12S(73) to 12 Core Open End

Mã SP: 11205

Thương hiệu: Original Power/IO Cable Camera

Loại sản phẩm: Connector HR10A-10P-12S to Open

Đánh giá

:

Giá

:

2.500.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Korea/Original Hirose Camera Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

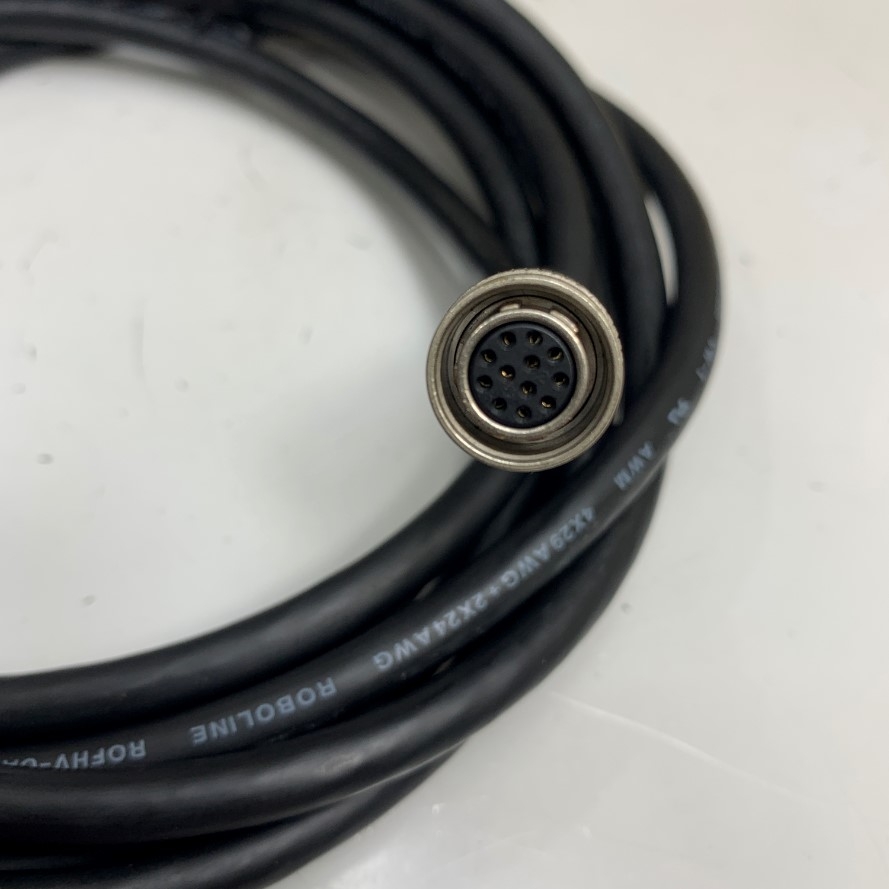

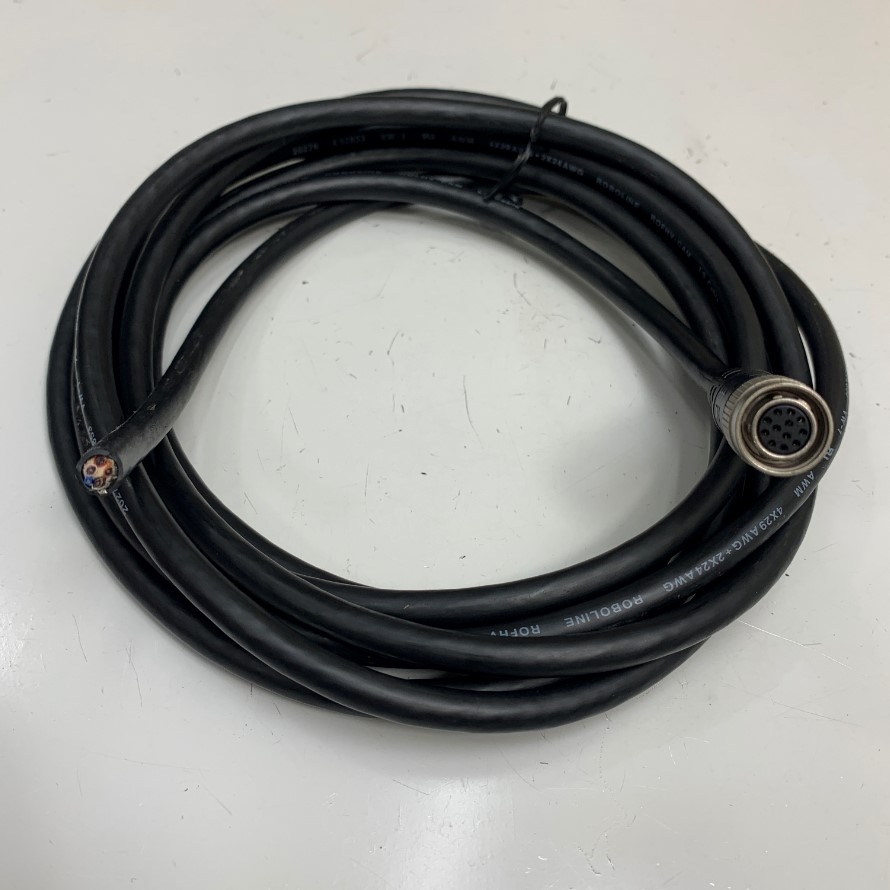

MV-ACP-H12p-open-HF-5m HIKROBOT Power/IO Cable, Hirose 12pin High Flexible, HR10A-10P-12S to Open, 5m, Black

Connector Hirose 12 Pin Female HR10A-10P-12S(73)

Pin Definition

Camera, GigE; Camera Link, Hikvision camera, MV-CH650-90TC, MV-CH650-90TM, MV-CH650-90TM

Hirose HR10A-10J-12P 12 Pin Male Plug Connector Panel Mount HR10 Series

HIKROBOT MV-CH650-90TM-M58S-NF

Specifications
Product Model: MV-ACP-H12p-open-HF-5m
Type: High-flex 12pin power & I/O cables，5 meters
End A: Connector Hirose 12 Pin Female HR10A-10P-12S(73)
End B: 12 Core Open End
Cable: diameter 7.0 mm
Length: 5m
Cable mechanical: 5P*26AWG+1P*24AWG+F+B
Jacket: PVC
Cable color: Black
Connector model: Korea/Original Hirose Camera Cable
Connector durability: ≥ 750 cycles
Min. bending radius: 84 mm
Applicable scenario: Drag chain
Max. U-type bending cycles: ≥ 5 million times
Max. voltage: 30 VDC
Working temperature: -20℃~80℃
Cáp 5M 17ft MV-ACP-H12P-Open-HF-5M HIKROBOT Power/IO Cable Hirose 12 Pin Female HR10A-10P-12S(73) to 12 Core Open End
