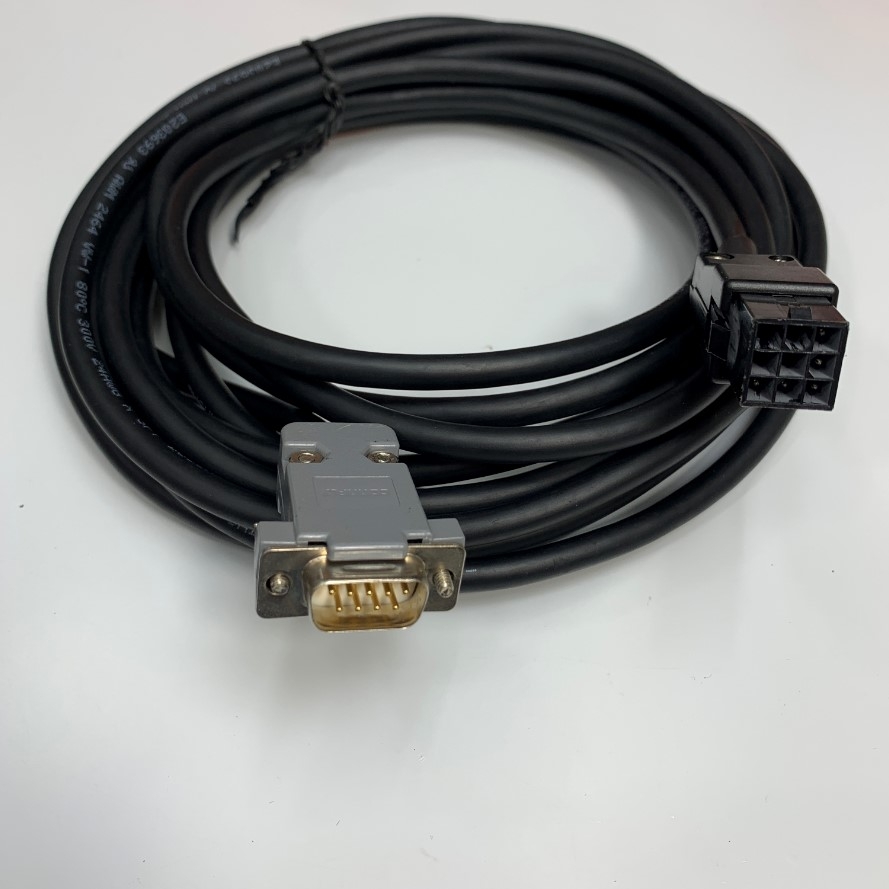

Cáp 3M 10ft Delta Encoder Cable ASDBCAEN0003 Connector 1-172161-9 9 Pin to DB9 Male Cable For Delta Servo Drive witch AC Motor Delta

Delta ASD-ABEN0003 AC Servo Motors and Drives Cable

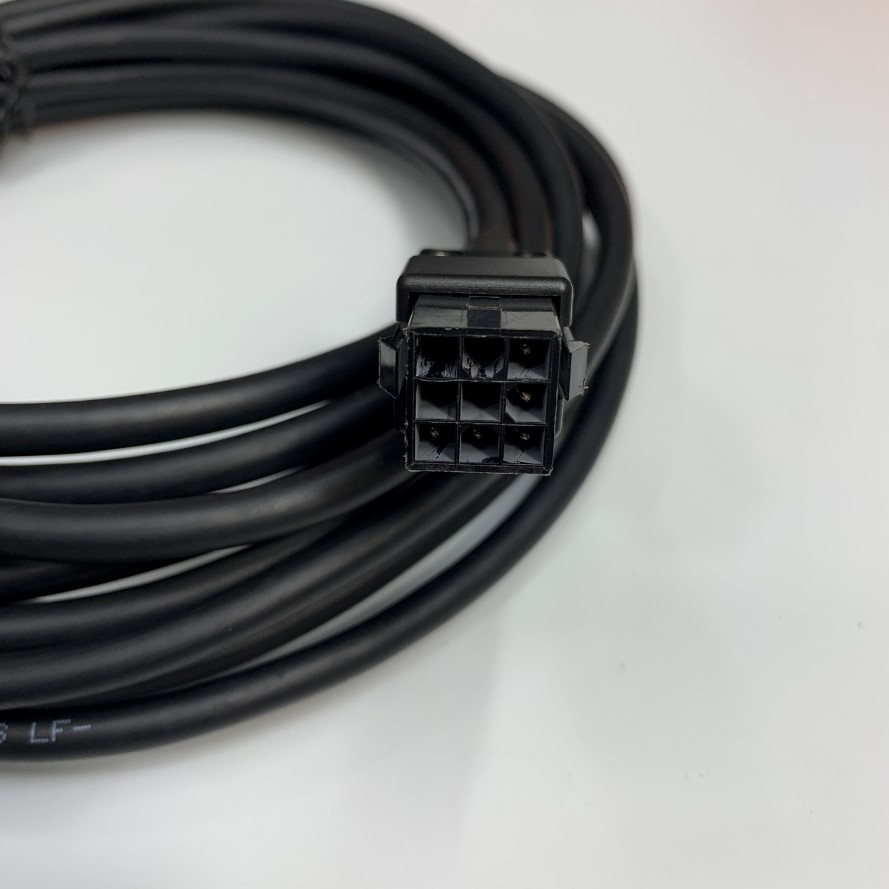

Connector 1-172161-9 9 Pin For AC Motor Delta

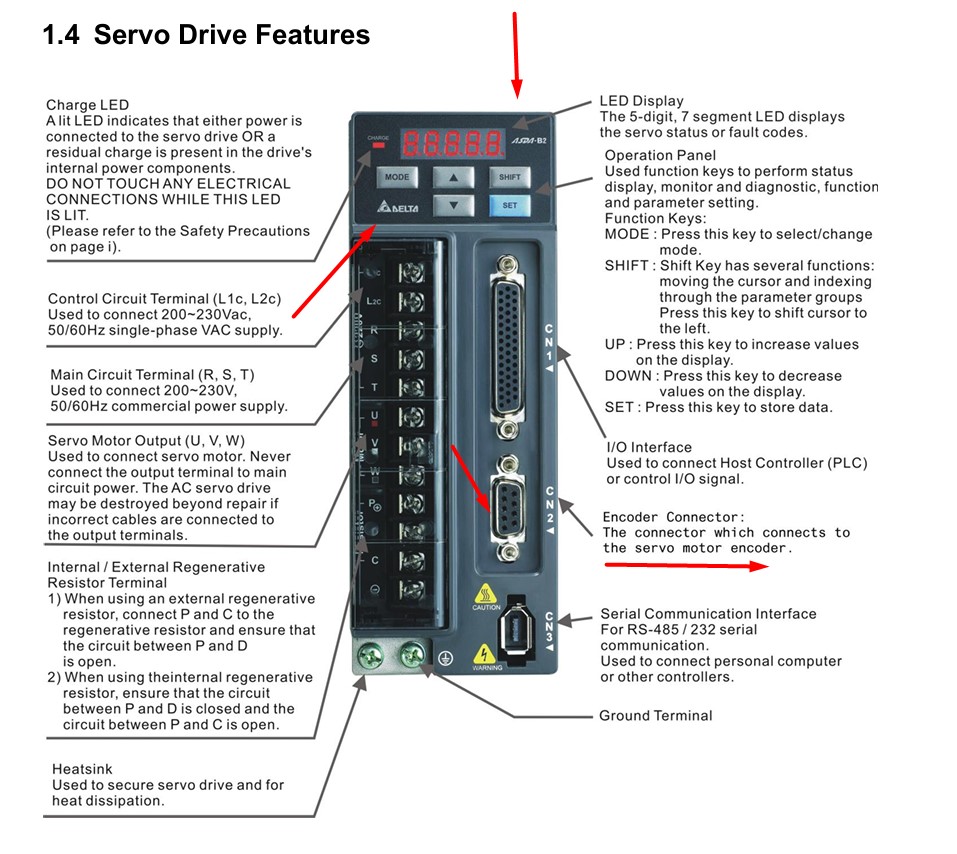

Servo Drive Delta ASDA-B2 Series

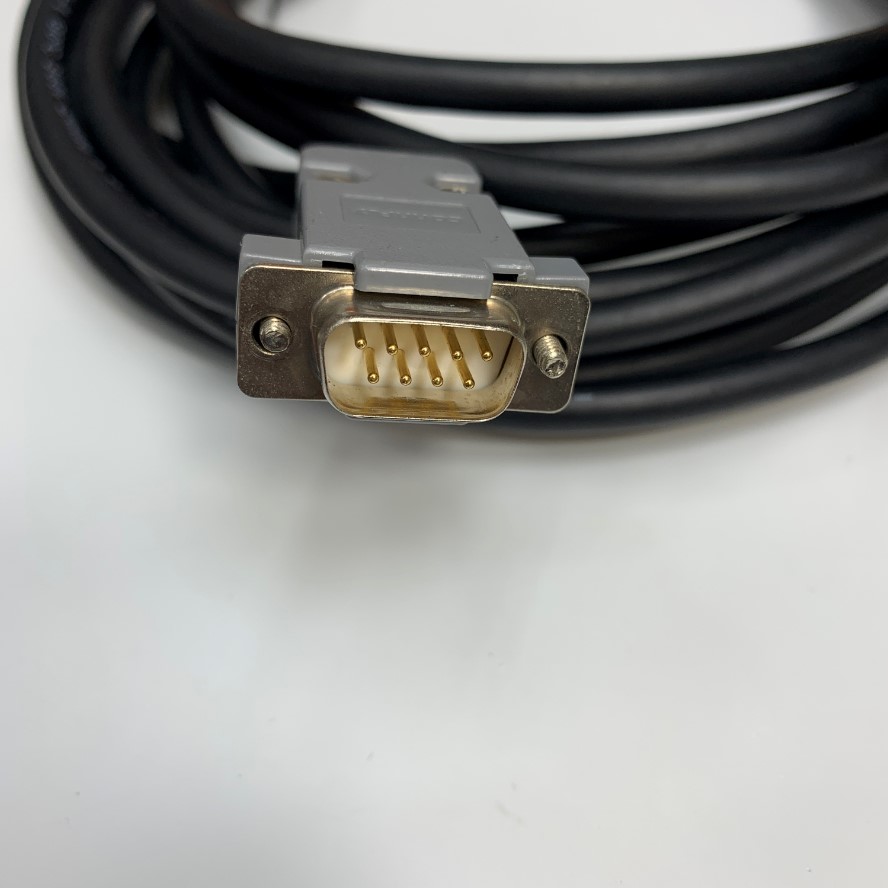

D-Sub DB9 Male For Servo Drive Delta ASDA-B2 Series CN2 Connector

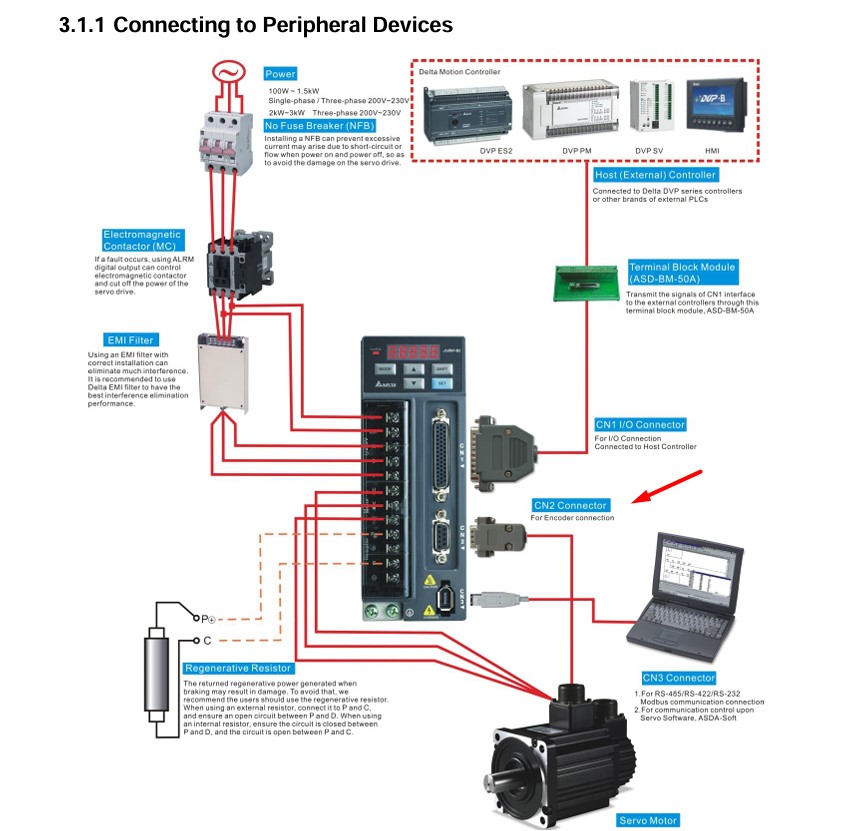

Connecting to Peripheral Devices

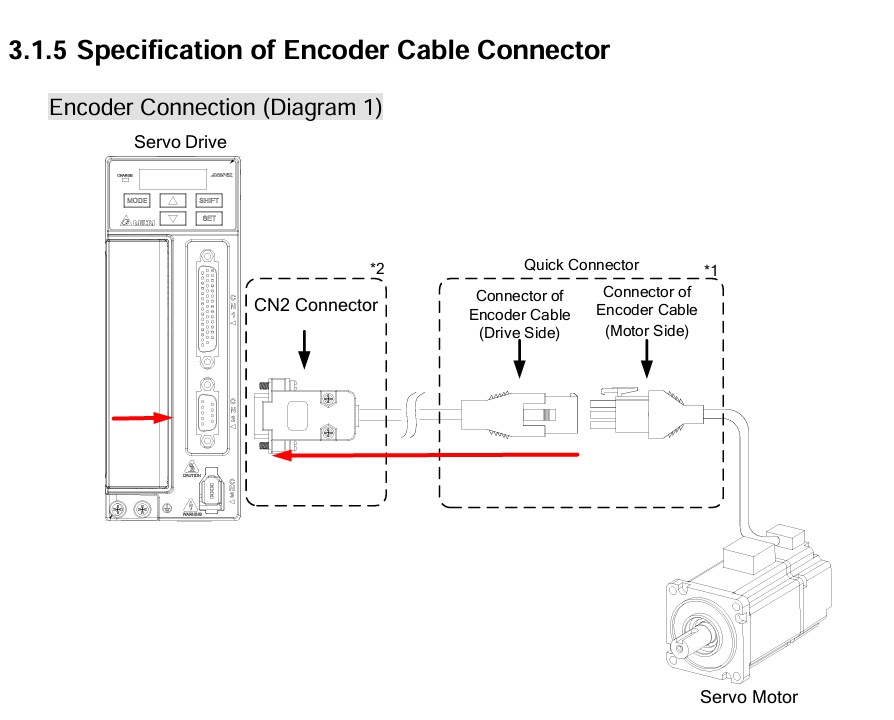

Specification of Encoder Cable Connector Encoder Connection (Diagram 1)

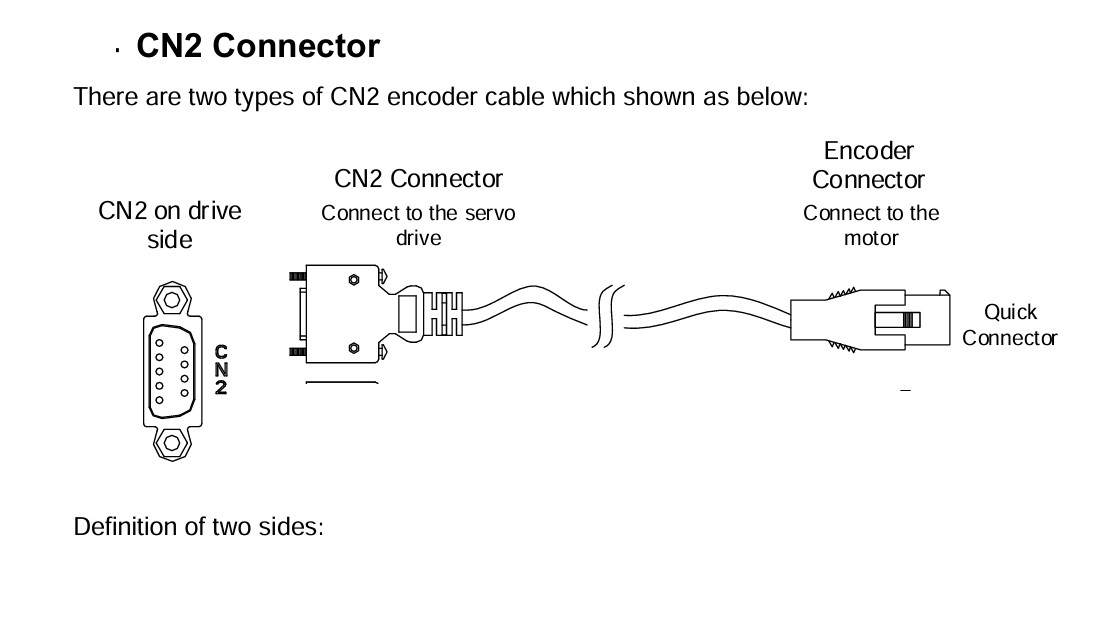

CN2 Connector CN2 on drive side witch Encoder Connector to the motor

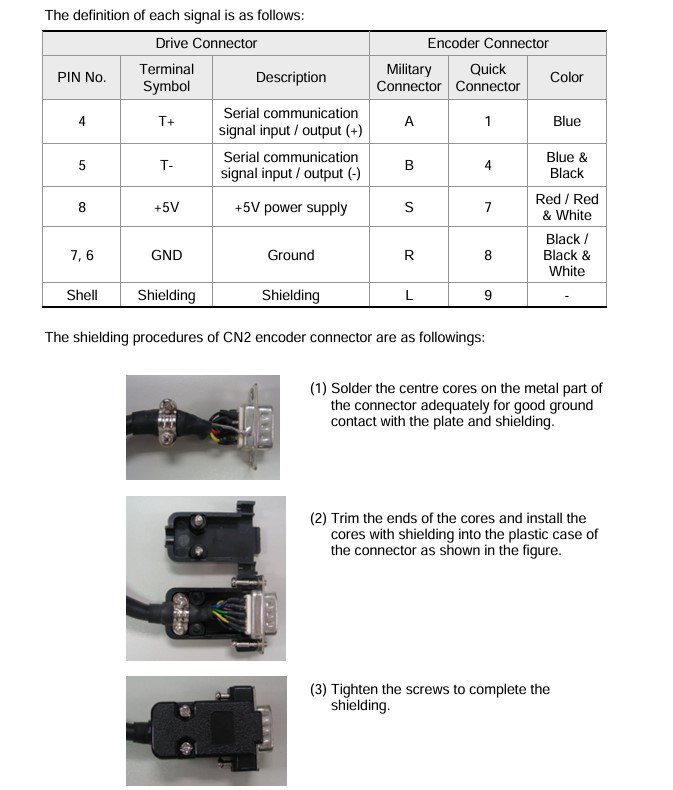

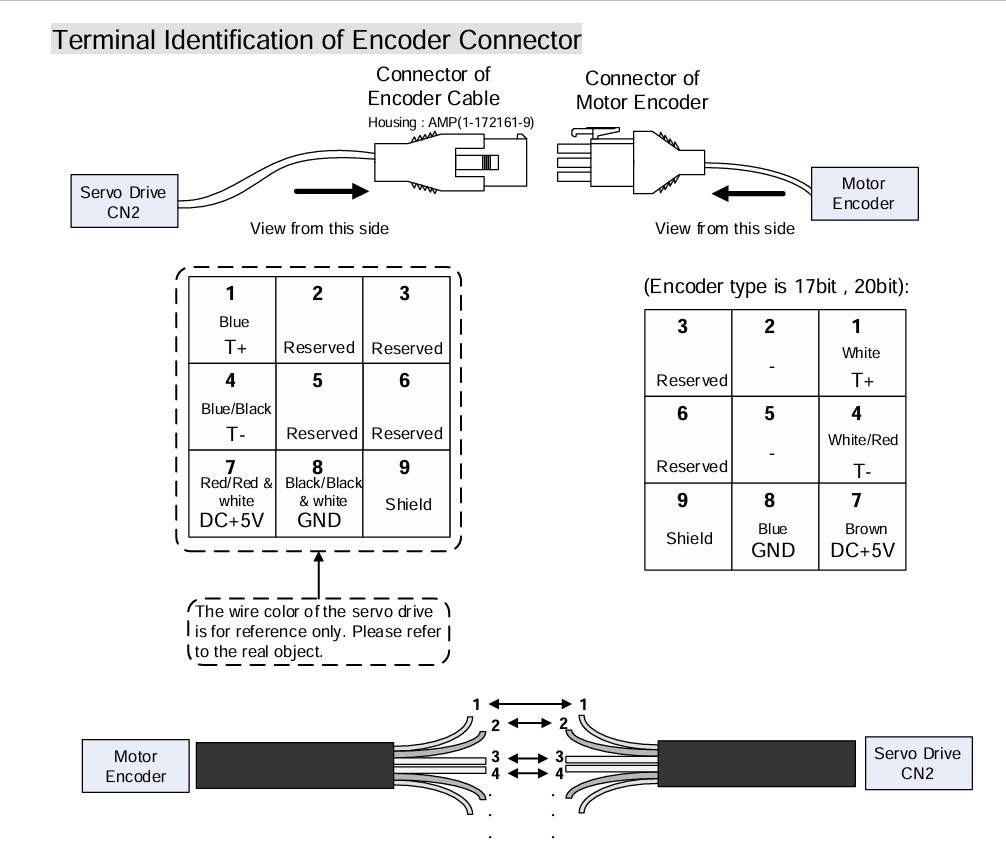

Terminal Identification of Encoder Connector

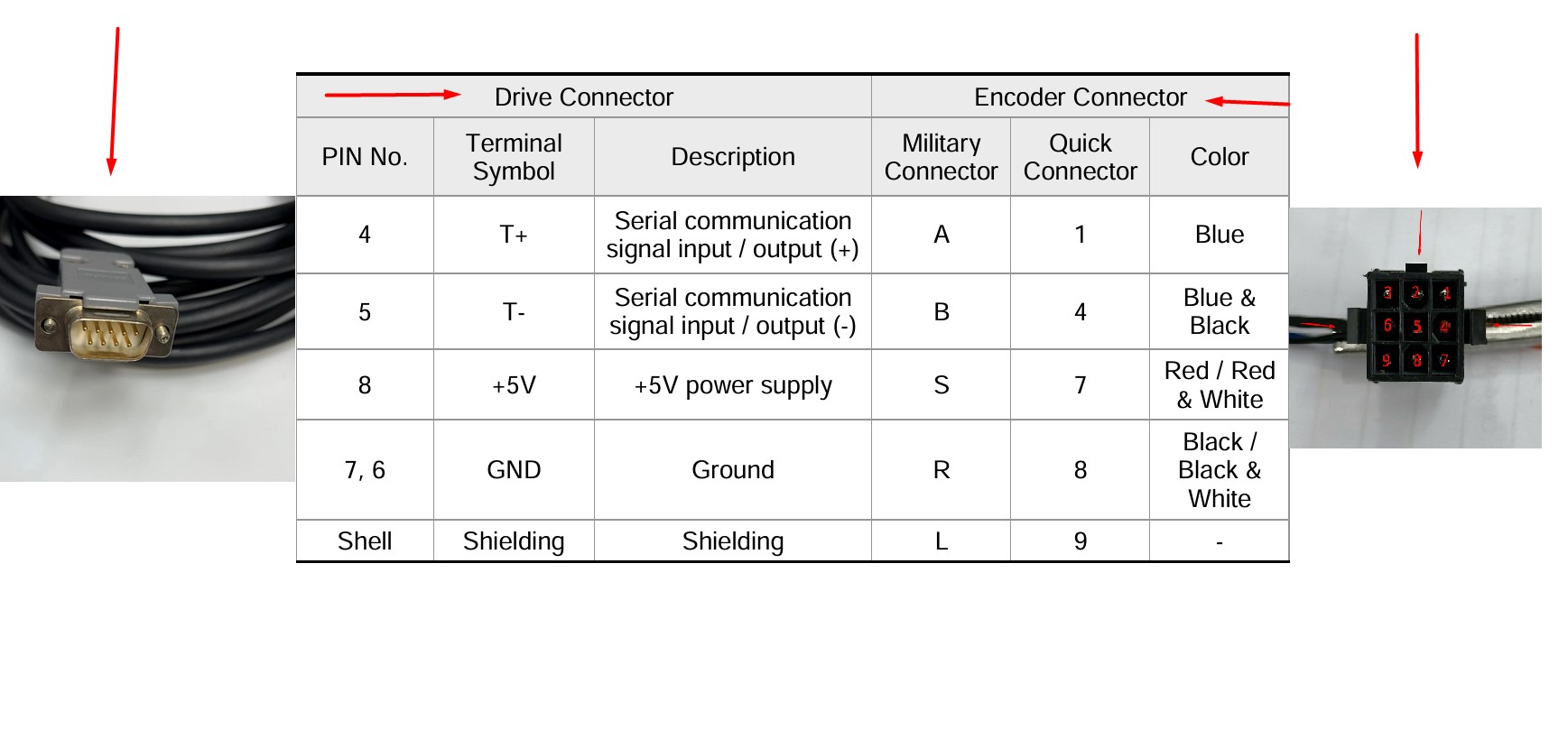

WIRING DIAGRAM - Delta ASD-ABEN0003 Cable

Specifications
Brand: Taiwan/Encoder Cable Original
PartNumbe: ASDBCAEN0003
Connector 1: Connector 1-172161-9 9 Pin
Connector 2: Connector D-Sub DB9 Male
Cable Type: 1-172161-9 TE AMP to DB9 Male
Number of Conductors: 5
Connector plating: Gold Plated
Cable E52853 (UL) 24AWG 80C 300V
Wire Gauge (AWG): 24AWG
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 7.0mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Length : 3M ~ 10ft
