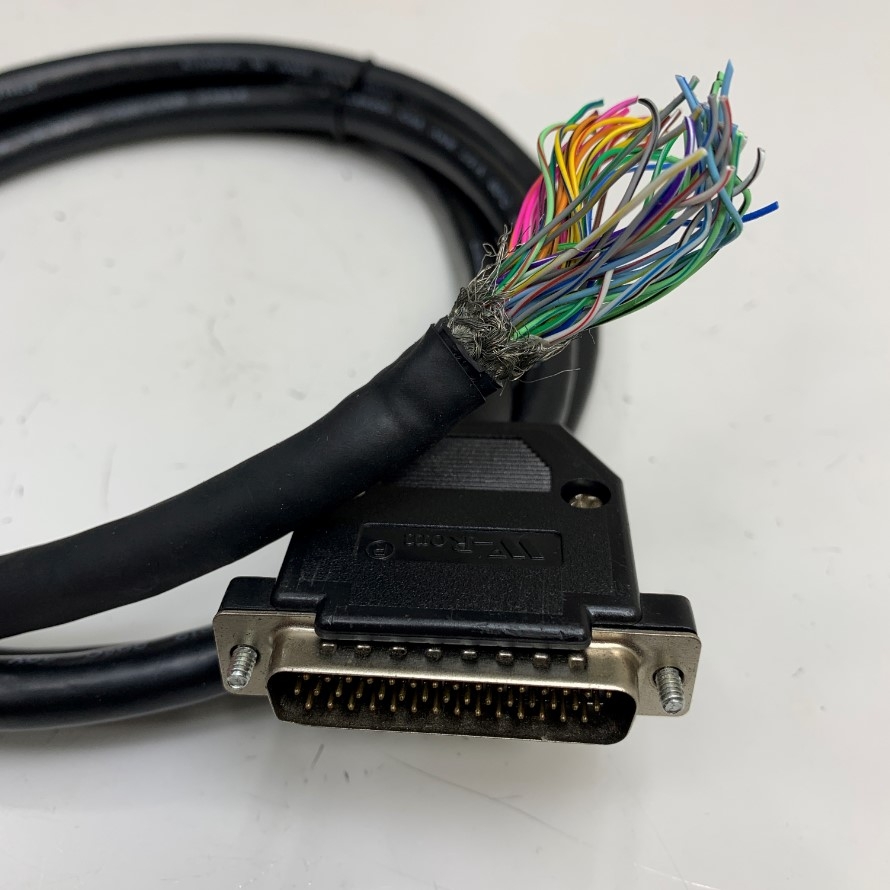

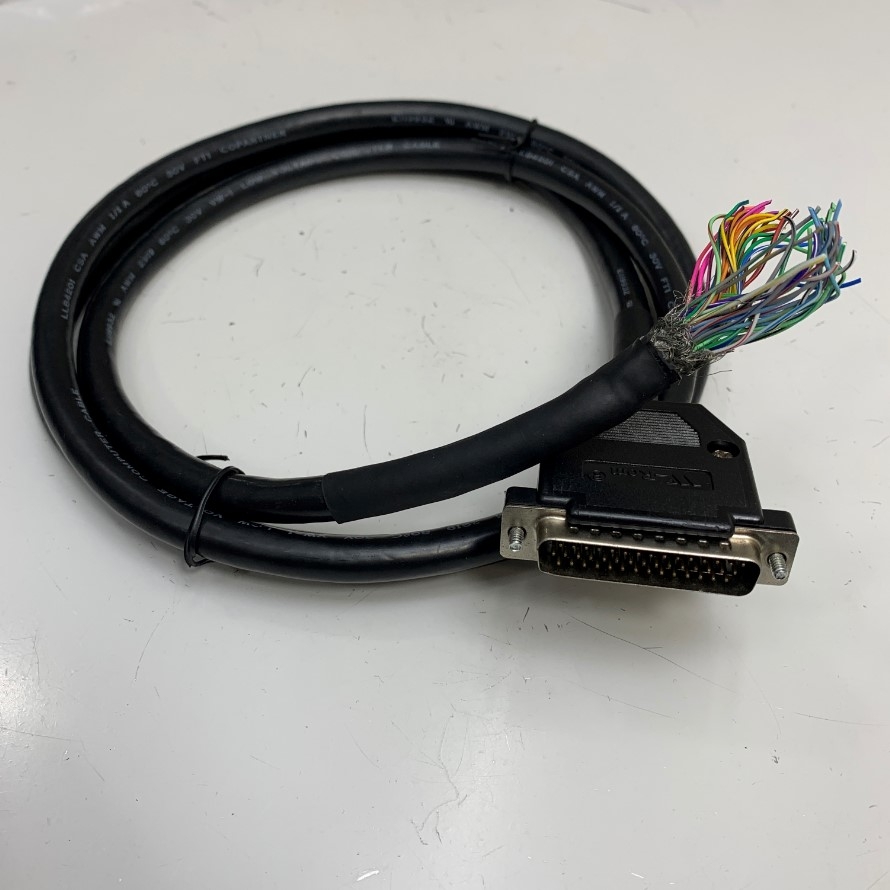

Cáp 1.5M 5ft ASDBCNDS0044 Delta A2/B2 Servo Drive CN1 Pulse Control Signal Cable Connector DB44 Male D-Sub 3 Rows 44 Pin to 44 Core Bare Wire Open End Cable Black OD 10mm

Delta A2/B2 Servo Drive CN1 Pulse Control Signal Cable 44/50 Pin IO Connector ASDBCNDS0044

CN1 I/O signal interface DB44 Pin

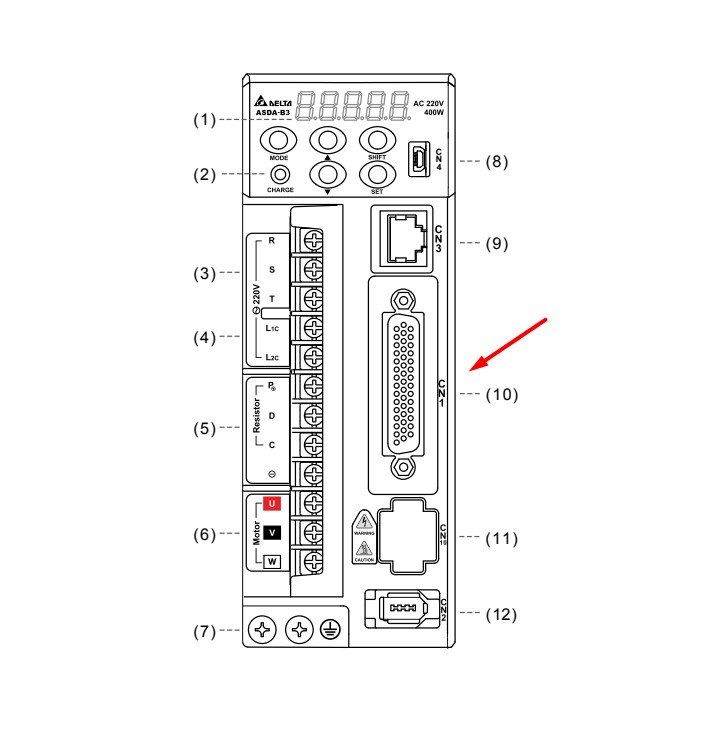

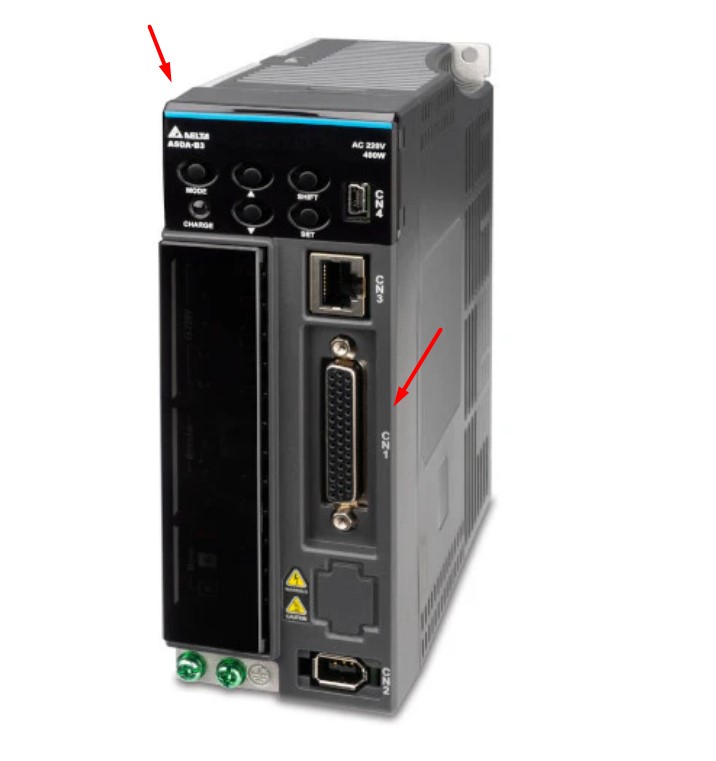

Delta ASD-B3-0421-L B3 Servo Drive 400W

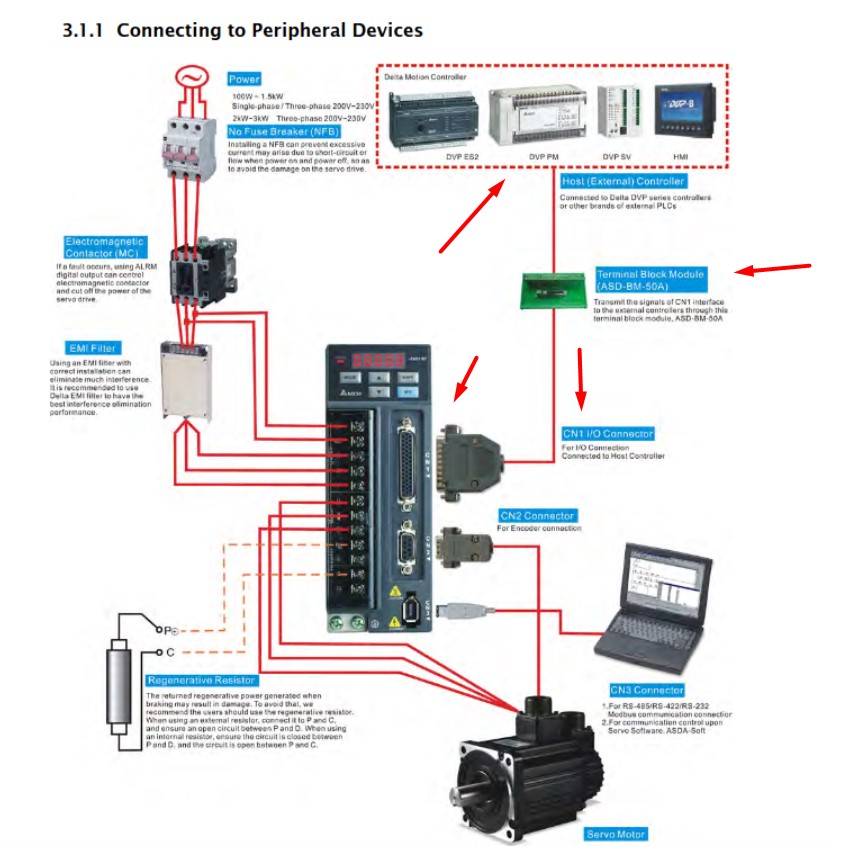

Connecting Delta Servo Drive

Specifications
DB44 CN1 connector with I/O control cable for Delta ASDA B2 B3-L AC servo motor driver
Brand: ViệtNam/Thientruongpc I/O Signal Data Cable
Model: ASDBCNDS0044 DB44 CN1 Connector with I/O Control Cable
Cable Type: Communication I/O Data Cable
Connector 1: Jack DB44 3 Rows Male Solder Connector With Screw
Connector 2: 44 Core Bare Wire Open End
Connector plating: Connector Gold Plated
Gender: DB 44 Pin Male to 44 Core
Wire: 28AWG - Cable OD=10mm 44 Core x 0.1mm² Shielded
Cable: 80°C 300V VW-1
Max Operating Temperature: 85 °C
Min Operating Temperature: -25 °C
Pin-Out: Connection: 1-Core Bare Wire Open / 2-Core Bare Wire Open / 3-Core Bare Wire Open / .-. / .-.  44-Core Bare Wire Open / Shield-Shield
Cable Length: 1.5M ~ 5ft
Color: Black
Cáp 1.5M 5ft ASDBCNDS0044 Delta A2/B2 Servo Drive CN1 Pulse Control Signal Cable Connector DB44 Male D-Sub 3 Rows 44 Pin to 44 Core Bare Wire Open End Cable Black OD 10mm
