Cáp 2M 6.5ft IFM Electronic IFM E80021 M12 A-Code Straight 8 Pin Female to Open Cable For Industrial Sensor Cable M12 Connector Circular

Mã SP: 12121

Thương hiệu: IFM Electronic

Loại sản phẩm: M12 8 Pin A-Code Female to 8 Core

Đánh giá

:

Giá

:

1.700.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Germany/Sensor M12 Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

IFM E80021 ADOGH080MSS0002K08 M12 Straight 8 wire 2m PUR screened cable

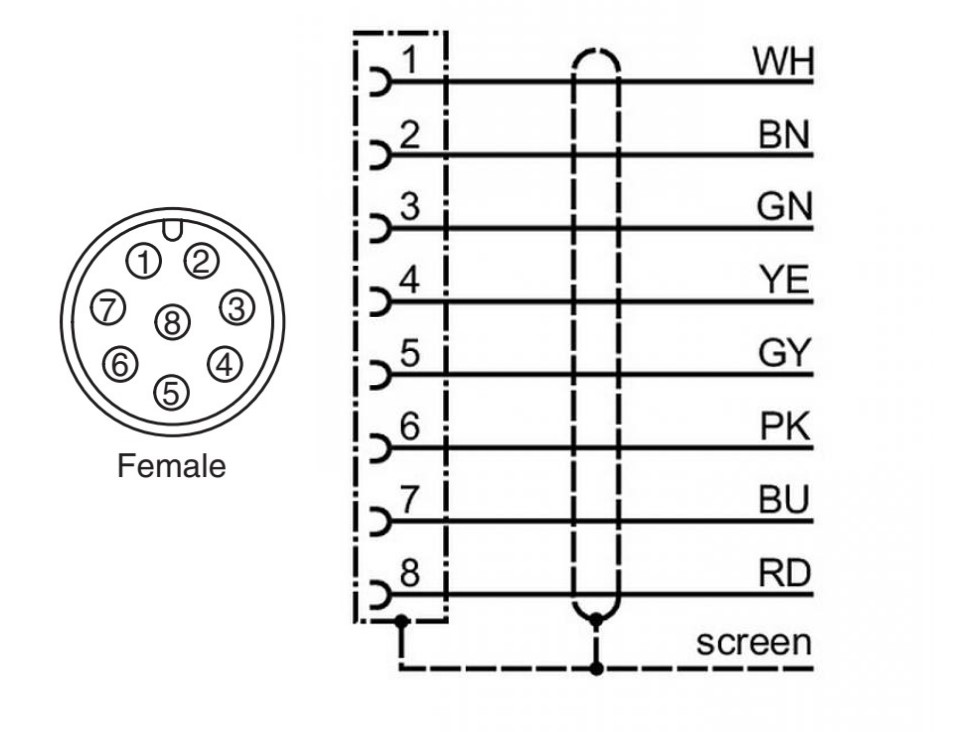

Wiring Diagram M12 A-Code Straight 8 Pin Female to Open Cable

Manufacturer: IFM Electronic - Germany
Description: Sensor cable
Operating voltage [V]: < 30 AC / < 36 DC
Protection class : III
Max. current load total [A] : 2
Ambient temperature [°C] : -25...90
Protection : IP 67
Weight [g] : 159.8
Dimensions [mm]: 15 x 15 x 43
Materials: TPU
Material nut: brass, nickel-plated
Notes: For 8-pole sockets the core colours are not standardised. Please note the wiring of the sensor and the sockets (see data sheet).
Cable: 2M, PUR, black, shielded; 8 x 0.25 mm² (14 x Ø 0.15 mm)
Connection : 1 x M12 female, straight
Tightening torque: 1...1.5 Nm
Cáp 2M 6.5ft IFM Electronic IFM E80021 M12 A-Code Straight 8 Pin Female to Open Cable For Industrial Sensor Cable M12 Connector Circular
