Cáp 0.3M 1ft Cognex CCB-M12X12FS-05 In-Sight Power & IO Breakout Cable M12 A-Code 12 Pin Female to 12 Core For Barcode Scanner Cognex DataMan Reader

Mã SP: 11202

Thương hiệu: Original Industrial Camera

Loại sản phẩm: M12 A-Code 12 Pin to 12 Core

Đánh giá

:

Giá

:

800.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/Original Cognex Barcode Scanner Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

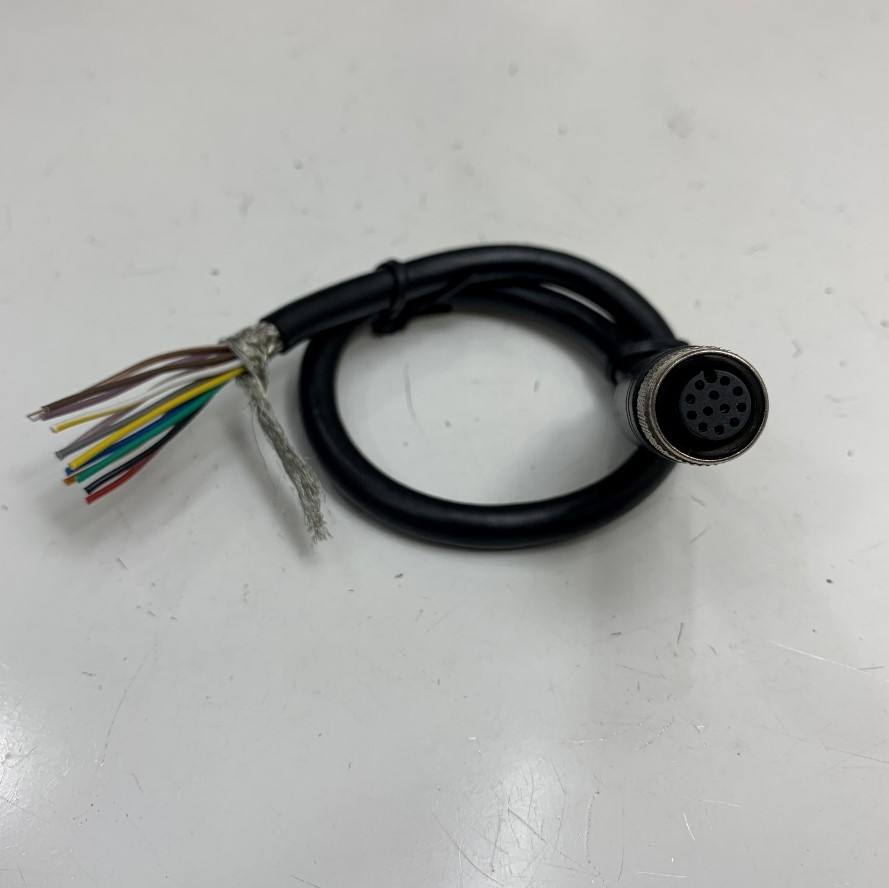

COGNEX CCB-M12X12FS-05 CABLE

Dimension(mm) ΦA=8, ΦB=12.3, D=14.8

PRODUCT DESCRIPTION
Manufacturer: Connector Single Ended Power/IO Cable
Model: CCB-M12X12FS-05
Brand: Made in China - Original Industrial Camera For COGNEX in-Sight 2000 7000 8000 Series Version systerm DataMan 260 Reader

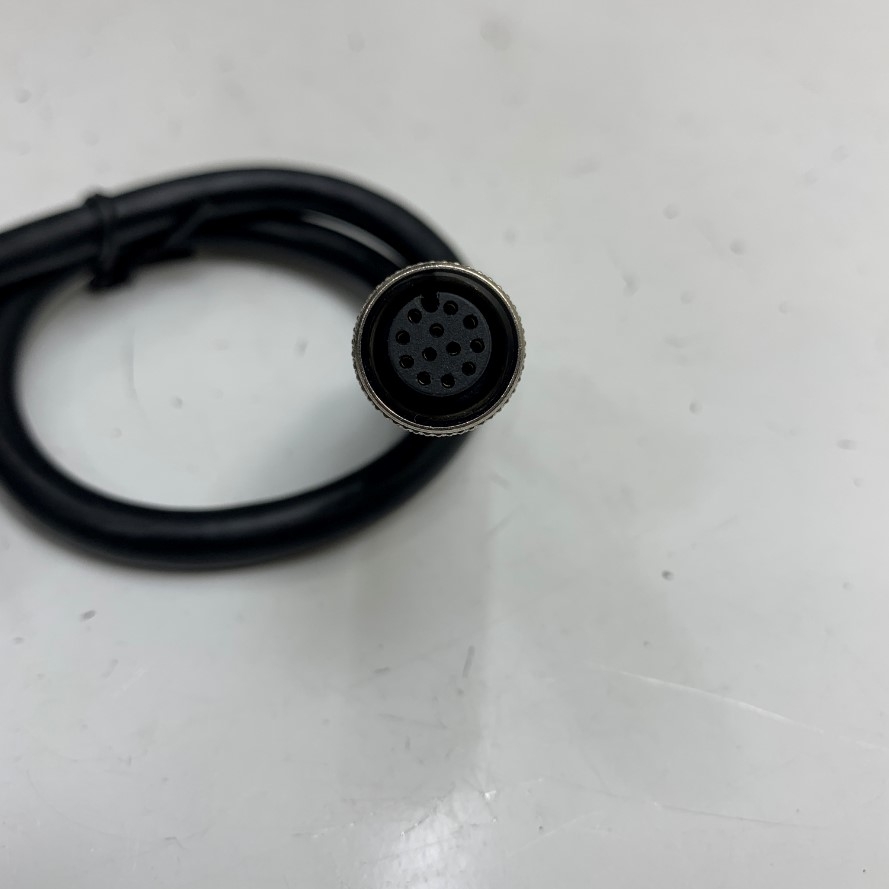

Side 1 Connector Type: M12 A-Code 12 Pin Female Circular interface

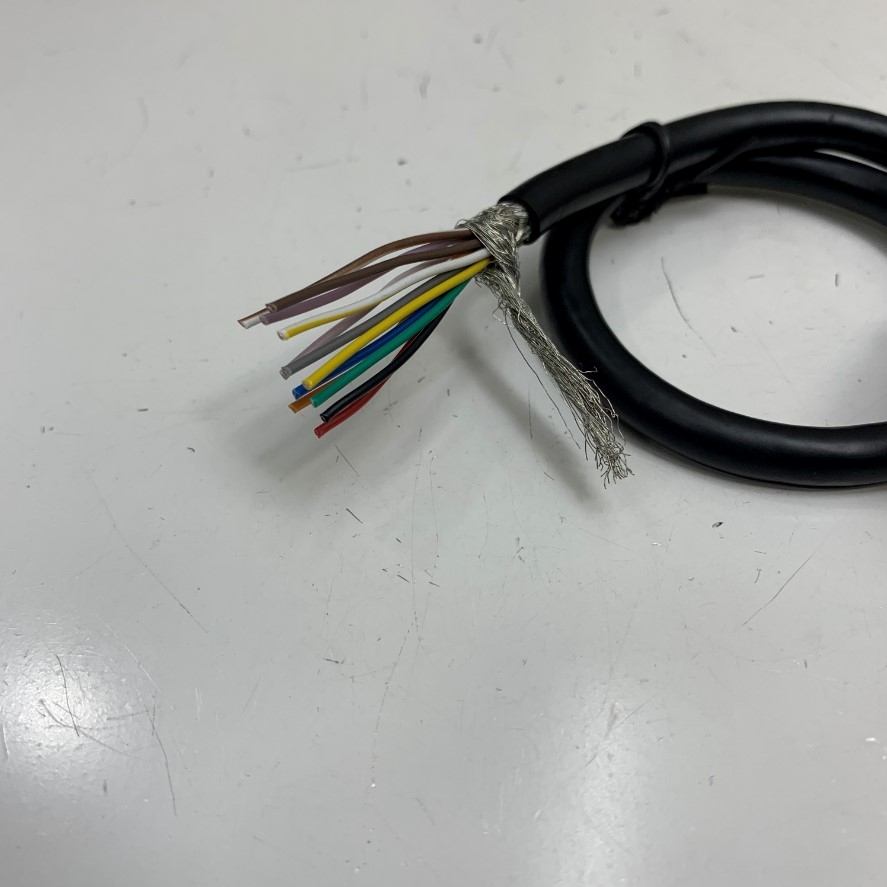

Side 2 Connector Type: 12 Core Open end
Contacts Poles: 12 Pin
Connector Gender: Female connector
Coding: A-Coded
Current Rating: 1.5 A
Voltage Rating: 30V
Contact Resistance: ≤ 10 mOhm
Insulation Resistance: ˃ 10^9 Ohm
Mating Cycles: ≤ 100
Ambient Temperature (Operation): - 25 °C - + 90 °C
Ingress Protection: IP67
Conductor Size: 12 x 0.25mm²
Shieding: Metal shell shielding
Connection direction: Straight
Cable Jacket: PVC, PUR, halogen-free, TPE 80℃, Custom cable material
Outside diameter: 7.0mm
Colour: Black
Length: 0.3M ~ 1ft
Cáp 0.3M 1ft Cognex CCB-M12X12FS-05 In-Sight Power & IO Breakout Cable M12 A-Code 12 Pin Female to 12 Core For Barcode Scanner Cognex DataMan Reader
