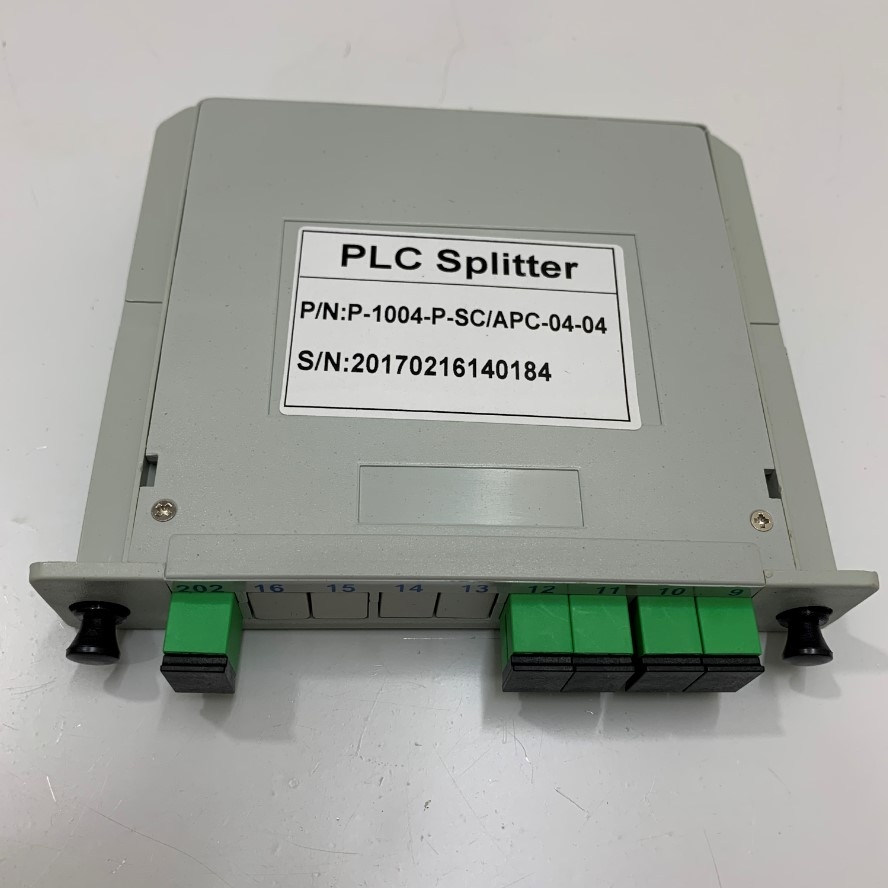

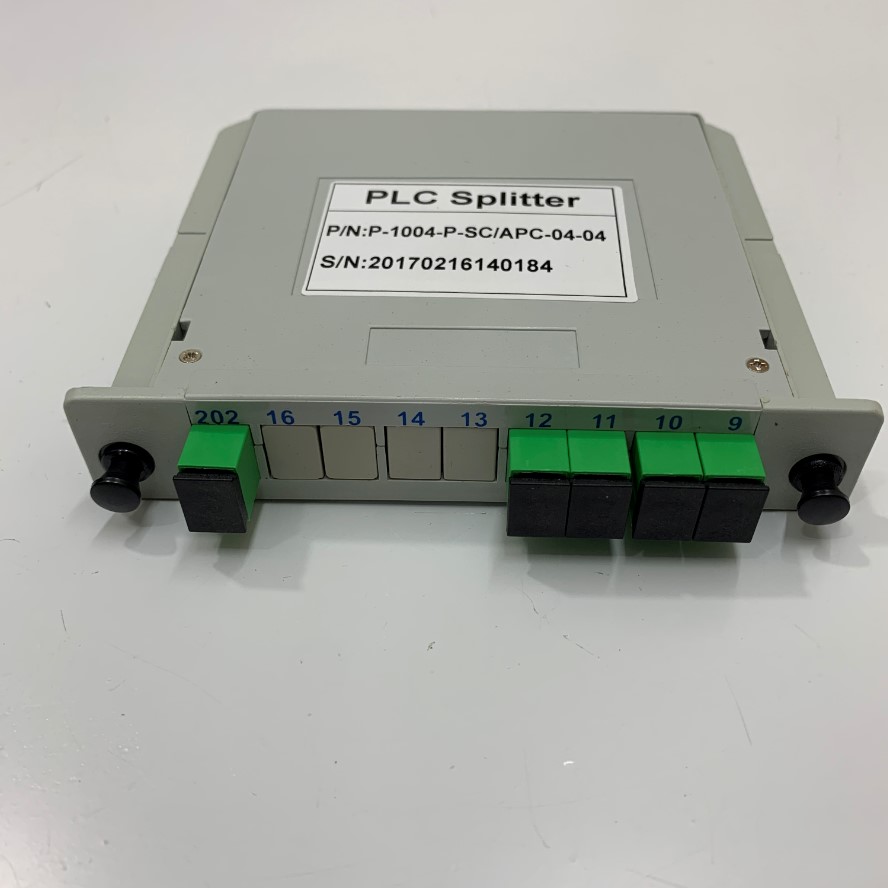

Bộ Chia Quang PLC Splitter 1X4 SC UPC Fiber Optical P-1004-P-SC/APC-04-04 Cassette Card Insertion FTTH ABS PLC Planar Waveguide Type

SC UPC/APC 1X4 Fiber Optic FTTH Cassette Box Optical Coupler ABS PLC 1X4 Fiber Splitter Box

Product introduction :
Planar waveguide optical splitter (PLC Splitter) is an integrated waveguide optical power distribution device based on quartz substrate. It has the characteristics of small size, wide wavelength range, high reliability and good spectral uniformity. Particularly suitable for passive optical networks (EPON, BPON, GPON, etc.) to connect local and terminal devices and achieve optical signal splitting. We can provide 1xN and 2xN series products and customize optical splitters for customers in various situations.
Working environment:
Working temperature: -45℃~+95℃
Environmental humidity: ≤95%(+40℃)
Atmospheric pressure: 60kPa-160kPa
Features
*Excellent Mechanical,Small Size
*High Reliability
*Low insertion Loss and low Polarization Dependent loss
*High channel counts
*Excellent Environmental Stability and Widely Used
Applications
1.FTTX Systems Deployments(GPON/BPON/EPON)
2.FTTH Systems
3.Passive optical networks PON
4.Cable television  CATV Links
5.Optical Signal Distribution
6.Local area networks (LAN)
7.Test equipment
SC UPC/APC 1X4 Fiber Optic FTTH Cassette Box Optical Coupler ABS PLC 1X4 Fiber Splitter Box
Bộ Chia Quang PLC Splitter 1X4 SC UPC Fiber Optical P-1004-P-SC/APC-04-04 Cassette Card Insertion FTTH ABS PLC Planar Waveguide Type
