  • Adapter FS PSM-CW6APE POE 54V 1.11A 59.94W 4 Pair Powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-) 10/100/1000M Gigabit PoE For Outdoor Wifi Access Point

Adapter FS PSM-CW6APE POE 54V 1.11A 59.94W 4 Pair Powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-) 10/100/1000M Gigabit PoE For Outdoor Wifi Access Point

Mã SP: 9386

Thương hiệu: FS PoE Injector

Loại sản phẩm: Adapter POE 54V 60W

Đánh giá

:

Giá

:

950.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/FS PoE Injector
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Hiển: ‭094.816.2498‬
:hien.thientruong
‬
‬ Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Khanh: 091.301.5851
:khanh81b

Mr Khoa: ‭‭‭098.131.9702
‬
‬ Mr Lam: ‭085.514.0226

Mr Khôi: ‭‭‭037.308.1800

Specifications
Model: FS PSM-CW6APE

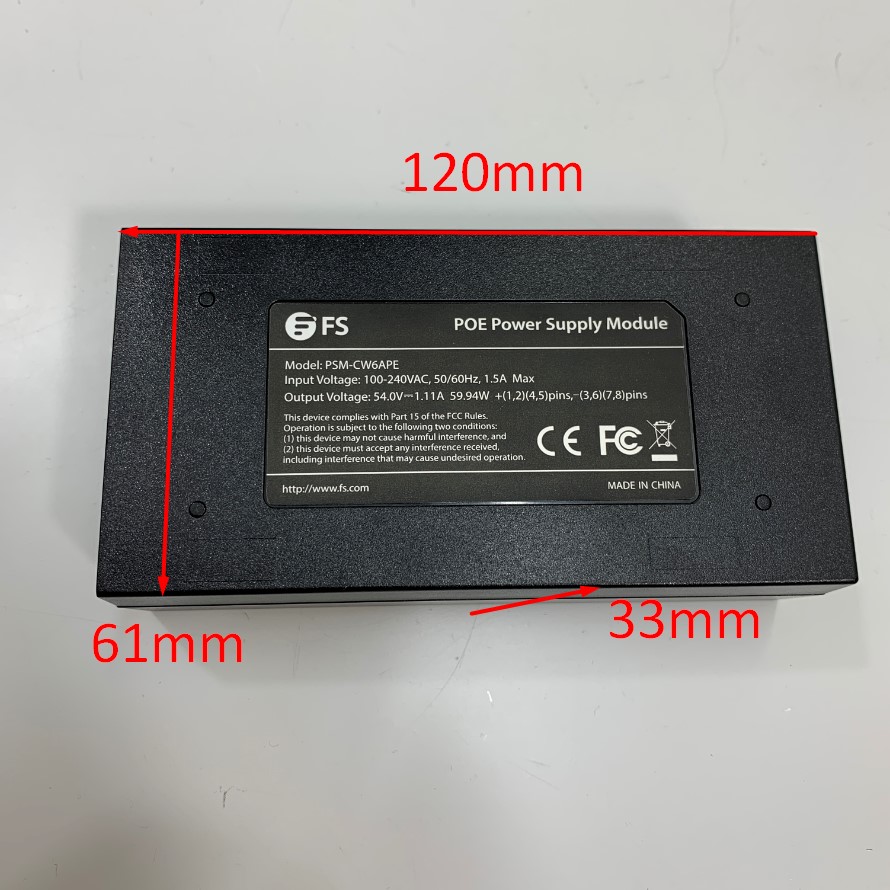

Dimensions: 120 x 62 x 32 mm
Weight: 330g
Output Voltage: 54VDC 1.11A
LAN Activity Indicator: No
Gigabit LAN Port: Yes
Remote Reset Capability: No
Reset Button: No
Rated Voltage: 100-240VAC @ 50/60Hz 1.5A
Efficiency: 85+%
Output Ripple: 1% Max.
Switching Frequency: 65 kHz
Line Regulation: ≤ 3%
Load Regulation: ≤ 5%
2-Pair Powering: -
4-Pair Powering: Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
Operating Temperature: 0 to 40° C (32 to 104° F)
Storage Temperature: -30 to 70°C (-22 to 158° F)
Operating Humidity: 35 to 95% Noncondensing

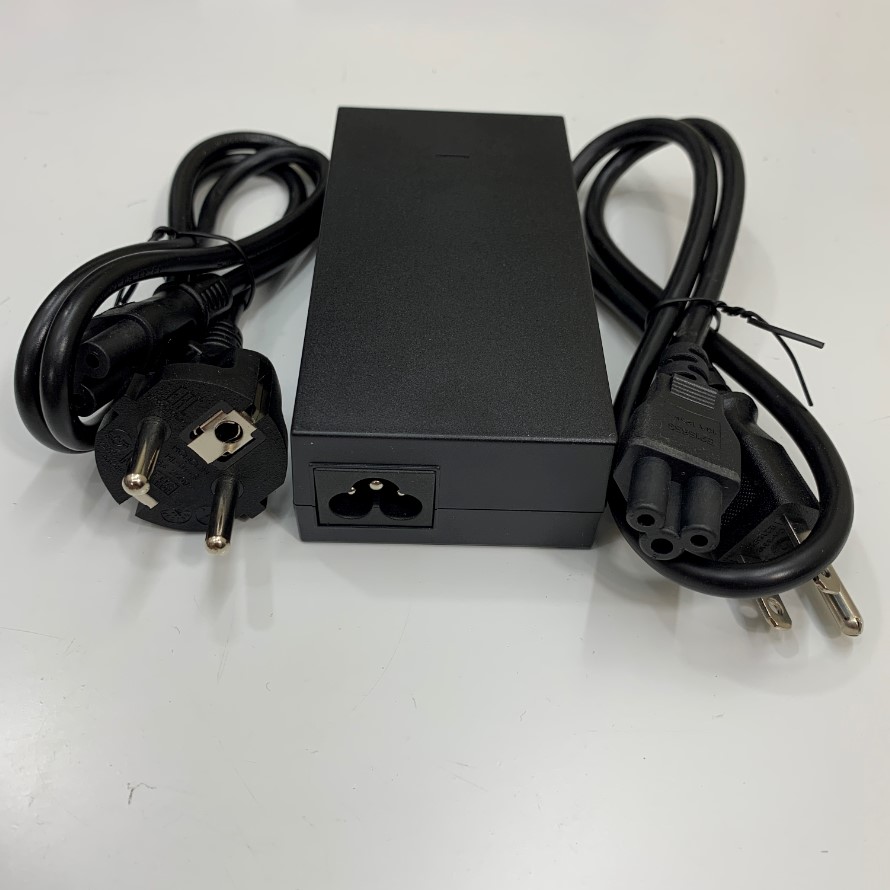

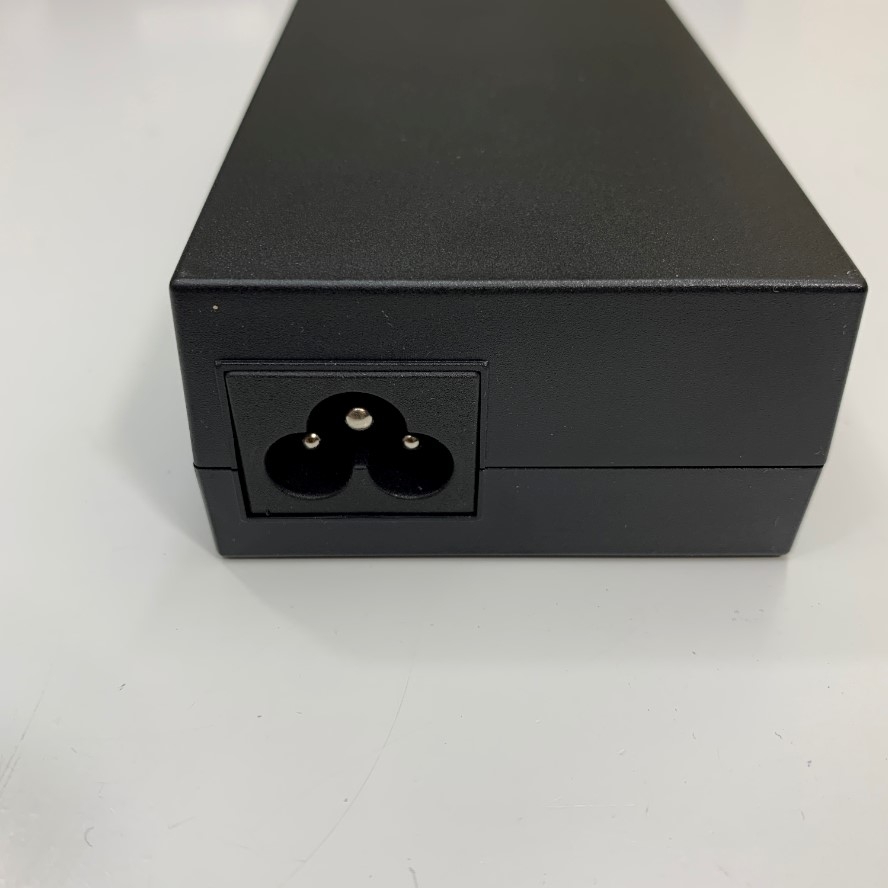

AC Connector: IEC-320 C6

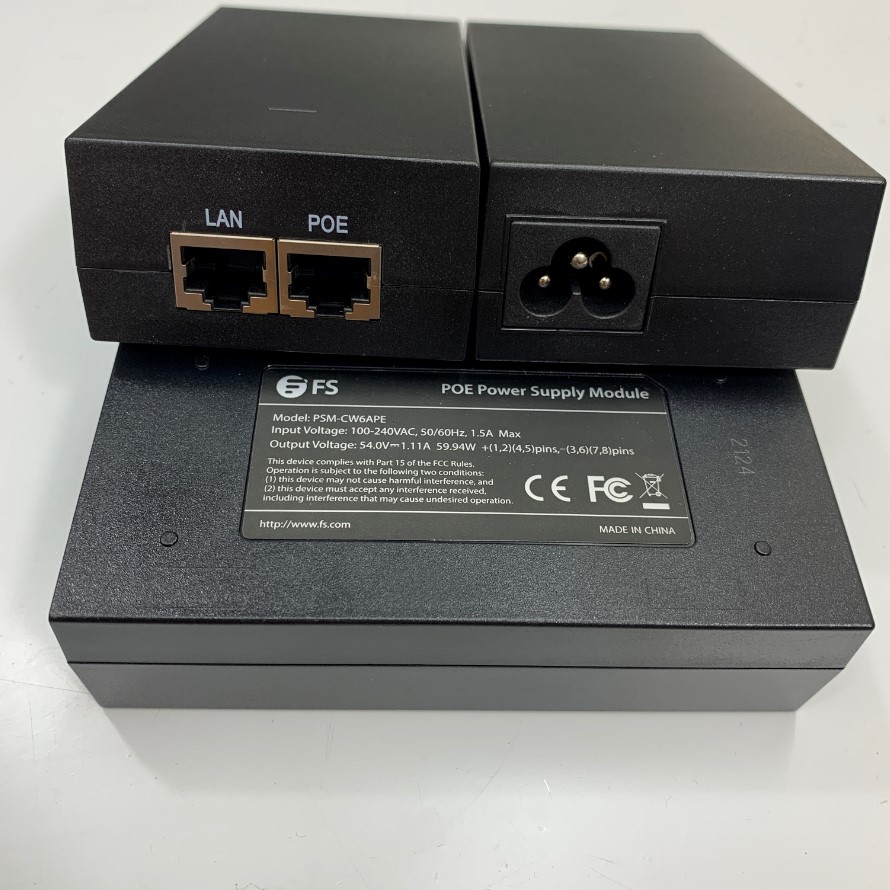

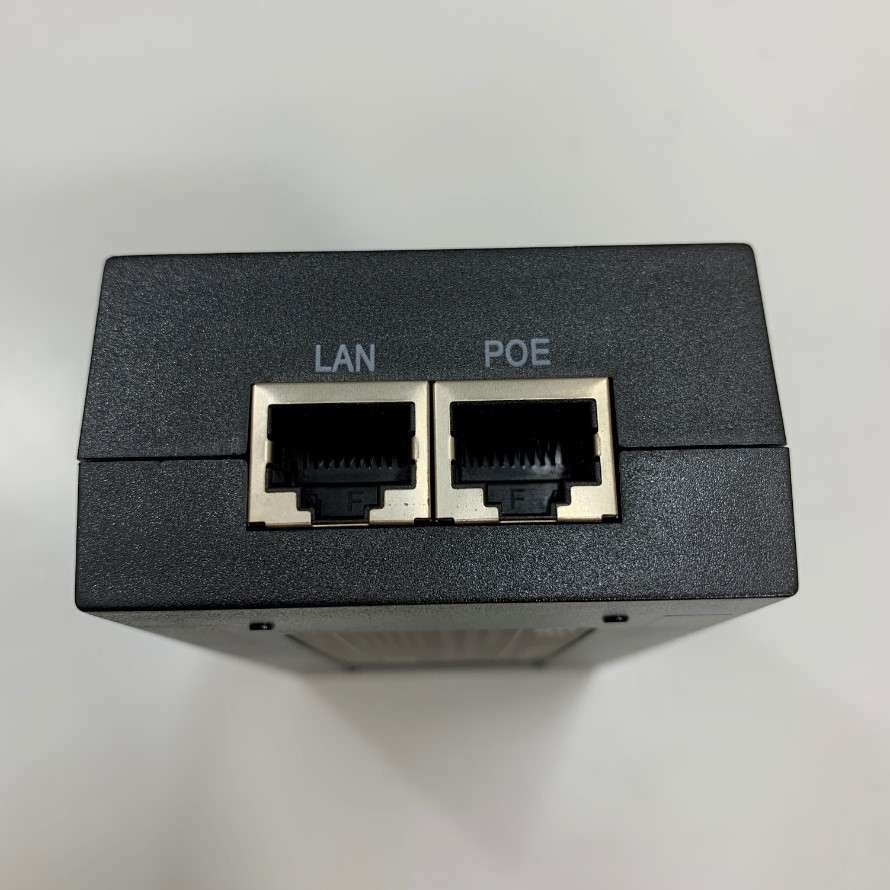

Data IN / POE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A (8/20 μs) Power
Peak Pulse Current: 36A (10/1000 μs) Data
Shunt Capacitance: <5 pF data
Response Time: <1 ns
Certifications: CE, FCC, IC, UL
Adapter FS PSM-CW6APE POE 54V 1.11A 59.94W 4 Pair Powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-) 10/100/1000M Gigabit PoE For Outdoor Wifi Access Point
