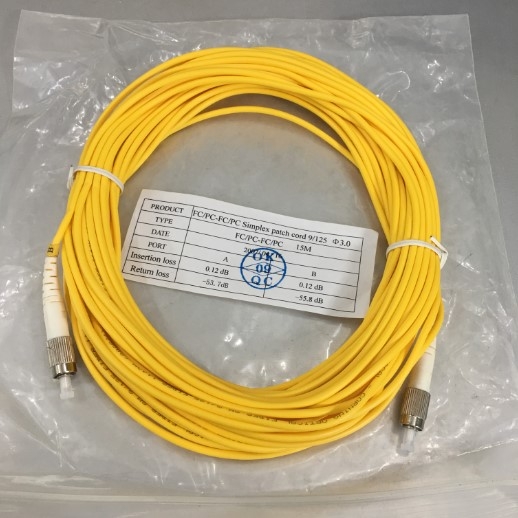

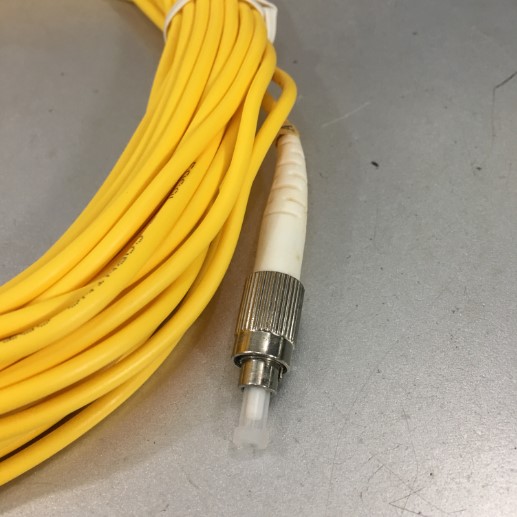

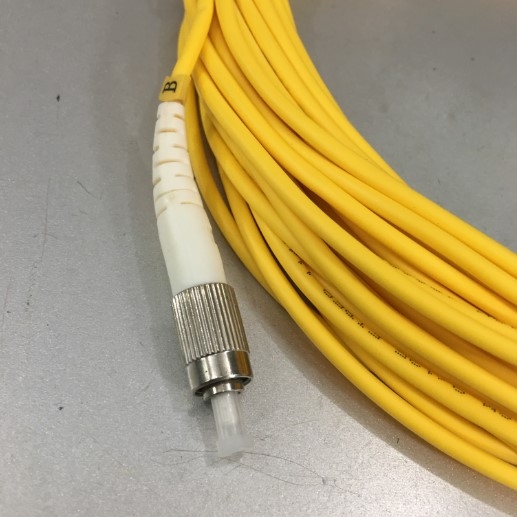

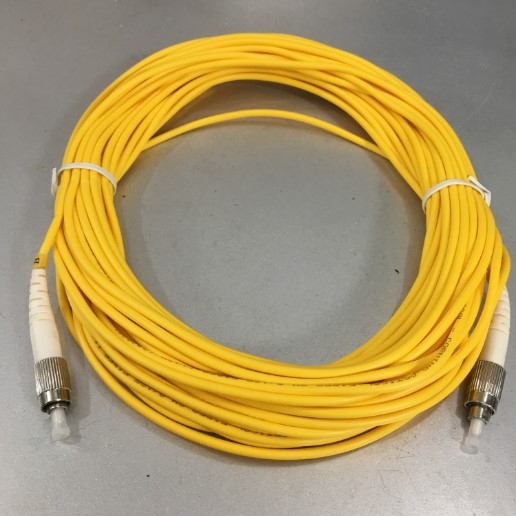

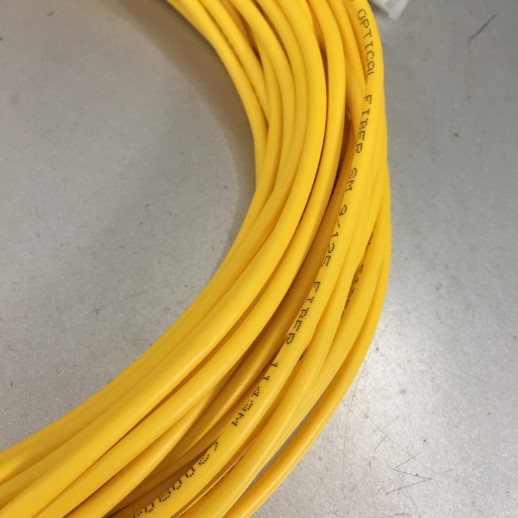

Dây Nhẩy Quang FC to FC 9/125 Singlemode Simplex Fiber Optical Patch Cord 3.0mm PVC Length 15M
Mã SP: 5238
Thương hiệu: China Optical Fiber
Loại sản phẩm: FC to FC Simplex Single-mode
Đánh giá
:Giá
:120.000₫
(Giá sản phẩm chưa bao gồm VAT)
Mô tả :
Xuất xứ/Nguồn hãng: China/Optical Fiber Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng
Mua Hàng Online
Mr Khanh: 091.301.5851
:khanh81b
Mr Đức: 034.694.3558
: vuvietduc8586
Mr Hiển: 094.816.2498
:hien.thientruong
Mr Khôi: 037.308.1800
Mr Lam: 085.514.0226
Mr Khoa: 098.131.9702
Features
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• PVC jacket as default
• Ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment
Specification
Fiber Type: 9/125µm Singlemode
Connector Type: FC to FC
Cable Length: 15M
Tensile Strength: 70 N
Insertion Loss: ≤0.2dB
Repeatability: ≤0.2dB
Jacket Material: PVC (OFNR riser-rated)
Environment:
Operating: -20°C to 70°C
Storage: -40°C to 85°C
Fiber Count: Simplex (1-fiber)
Polish: UPC to UPC
Cable Diameter: 3.0 mm
Return Loss: ≥50dB
Interchangeability: ≤0.2dB
Jacket Color: Yellow
Application:
Optical fiber communications system
Optical fiber access networks
Optical fiber CATV
Optical fiber test equipment
Optical fiber data communication
Premises Distribution
Local Area Networks (LAN)
Fiber-to-the-Home (FTTX)
Device Terminations
