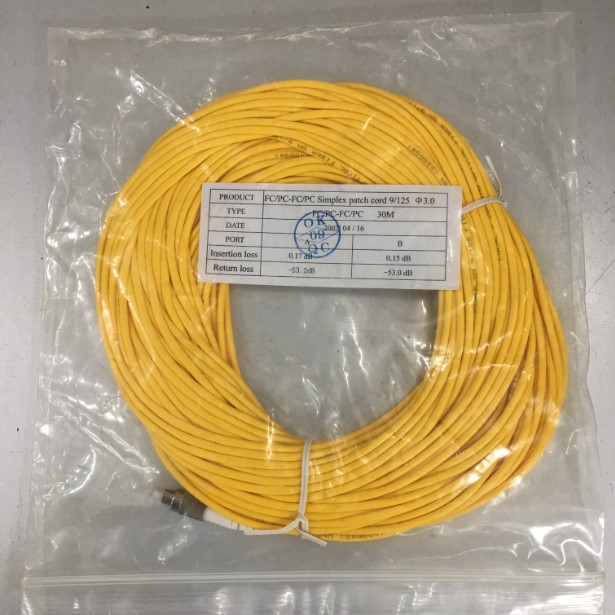

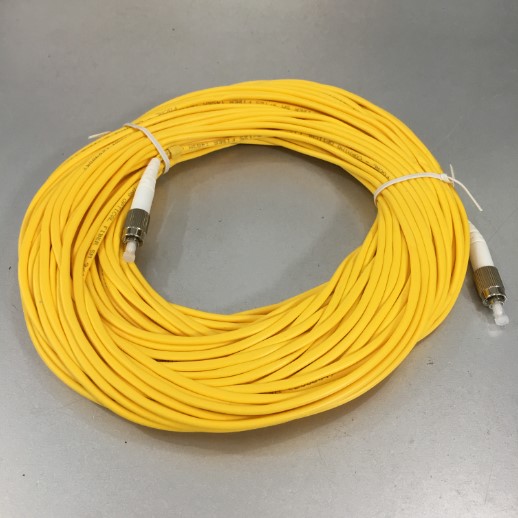

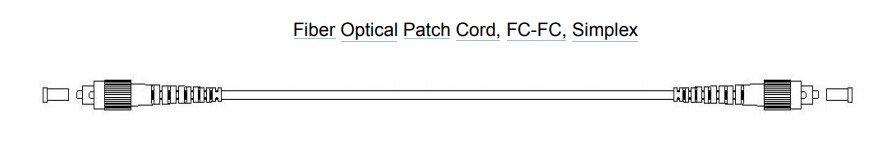

Dây Nhẩy Quang FC/PC-FC/PC Fiber Patch Cord Simplex SM 9/125μm 3.0mm Length 30M

Mã SP: 5232

Thương hiệu: China Optical Fiber

Loại sản phẩm: FC to FC Simplex Single-mode

Đánh giá

:

Giá

:

200.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/Optical Fiber Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

Features
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• PVC jacket as default
• Ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment

Specification

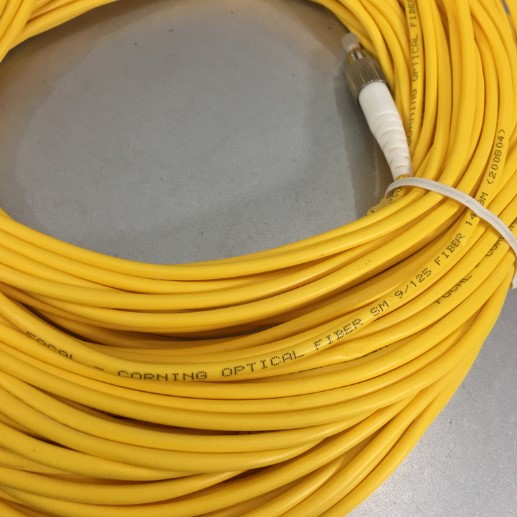

Fiber Type: 9/125µm Singlemode

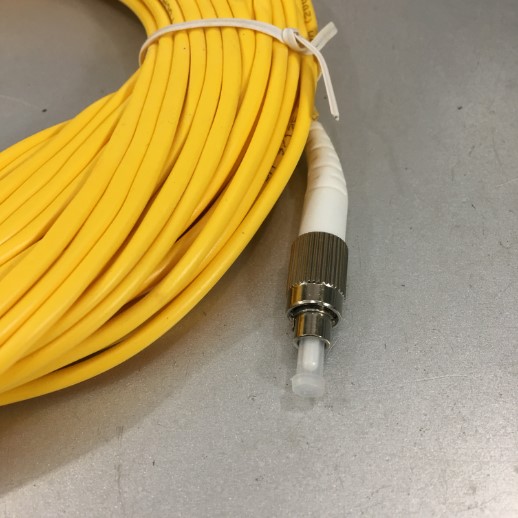

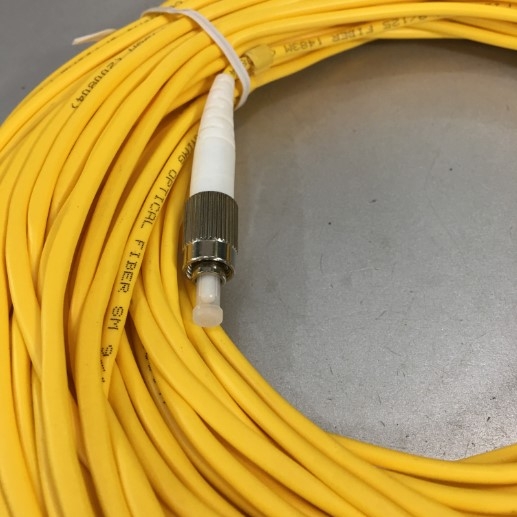

Connector Type: FC to FC
Cable Length: 30M
Tensile Strength: 70 N
Insertion Loss: ≤0.2dB
Repeatability: ≤0.2dB
Jacket Material:    PVC (OFNR riser-rated)
Environment:
Operating: -20°C to 70°C
Storage: -40°C to 85°C
Fiber Count: Simplex (1-fiber)
Polish: UPC to UPC

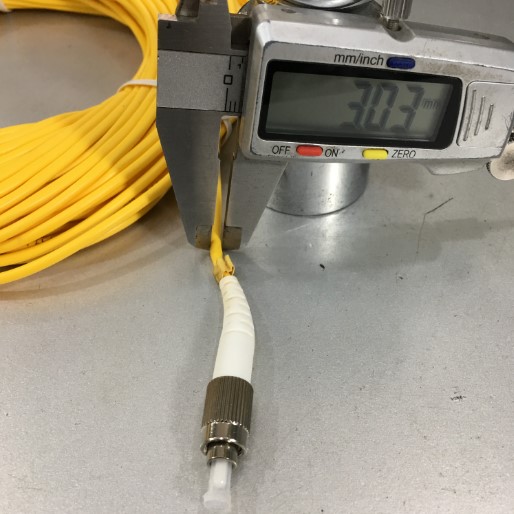

Cable Diameter: 3.0 mm
Return Loss: ≥50dB
Interchangeability: ≤0.2dB
Jacket Color: Yellow
Application:
Optical fiber communications system
Optical fiber access networks
Optical fiber CATV
Optical fiber test equipment
Optical fiber data communication
Premises Distribution
Local Area Networks (LAN)
Fiber-to-the-Home (FTTX)
Device Terminations
