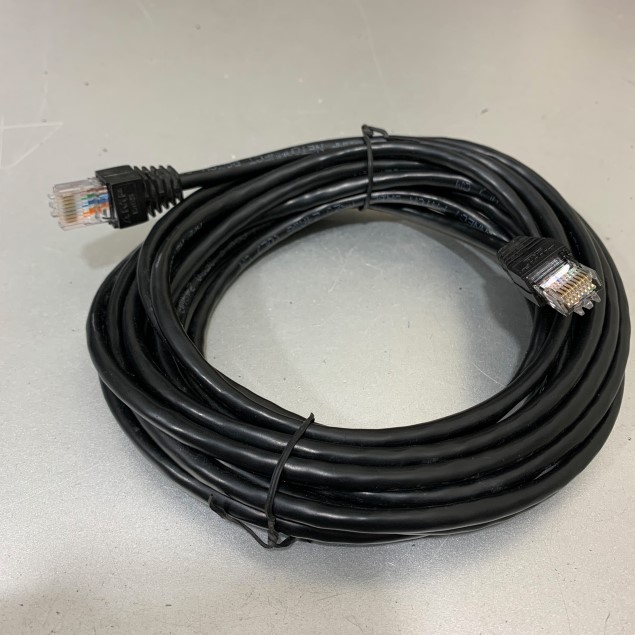

Dây Nhẩy Chuẩn Chéo CAT5E U/UTP Patch Cord Crossover Cable Ethernet 4PR 24AWG Black Length 5M

Mã SP: 6095

Thương hiệu: KTT

Loại sản phẩm: Patch Cord Crossover Cable

Đánh giá

:

Giá

:

120.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViêtNam/KTT
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

‬ Mr Đức: ‭‭‭034.694.3558‬
: vuvietduc8586

Mr Khanh: 091.301.5851
:khanh81b

Mr Khoa: ‭‭‭098.131.9702

‬ Mr Lam: ‭085.514.0226

Mr Khôi: ‭‭‭037.308.1800

What Is Crossover Cable?

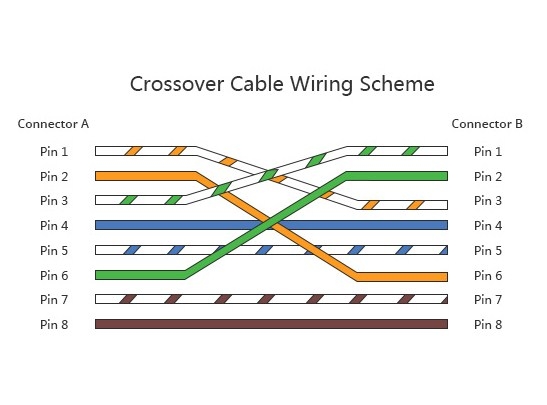

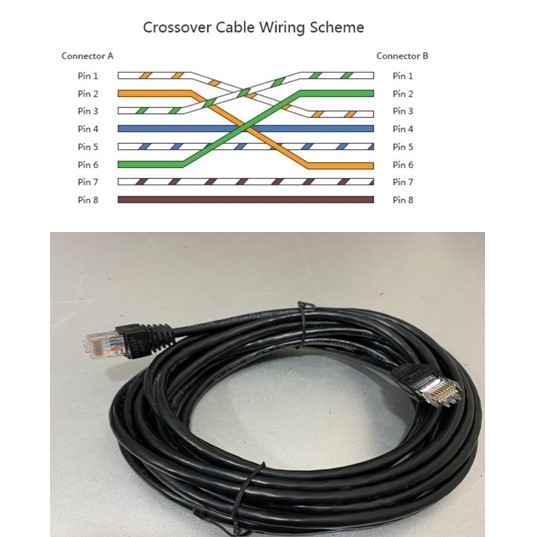

Crossover cable, as the name suggests, cross over or swap on its way when coming from one end to the other. Unlike patch cable, crossover cable uses two different wiring standards on both end: one end uses the T568A wiring standard, and the other end uses the T568B wiring standard. Both side (connector A and connector B) of crossover cable have wire arrangement with different color, and the wires that come out of the connector A should match the correct pin at the connector B. As shown in the following wiring scheme, you can see that Pin 1 on connector A goes to Pin 3 on connector B, pin 2 to pin 6, pin 3 to pin 1 and pin 6 to pin 2, etc. The crossover cables are mainly used for connecting two routers, computers, or hubs.

Patch Cables vs. Crossover Cable: When to Use?
In brief, a crossover cable connects two devices of the same type to communicate together, like a PC to a PC, or a switch to a switch. The patch cable connects two different devices to each other, like a PC and a switch. The following scenarios will explain the different applications.

Scenario 1: PC to PC

If we have two computers connected directly to each other. And both PCs try to transmit on TX wire, their signals will collide. Moreover, nothing will be sent on RX wire. Therefore, neither computer will be able to receive anything. At this point, the crossover cable is needed to make connections between two PCs. Since this kind of cable is crossed, the signal sent on TX wire from PC 1 can be received on the RX wire of PC 2. This is the reason why the crossover cables are often used to connect two same devices.

Scenario 2: PC to Switch to PC

What happens if a switch is mixed between two computers? In fact, switch is designed to communicate in between two computers, which has an innate crossing of the wires. Therefore, we do not need the cable to cross for us. What the PC 1 sends on its TX wire is received by the switch on its RX wire, and then transmits on its TX wire, finally is received by the other PC's RX wire. And vice versa. Therefore, when a switch is connected to a PC, it can simply use a patch cable.

Scenario 3: PC to Switch to Switch to PC

What then happens if we have two switches in the mix? Two switches separately cross the wire once, therefore another pair crossing in between the switches is emerges. As mentioned above, two same devices need a cross cable to make a connection. From the diagram above, we can see:
(1) When PC 1 connects to the Switch 1, we require a patch cable.
(2) When Switch 1 connects to the Switch 2, we require a crossover cable.
(3) When Switch 2 connects to the PC 2, we require a patch cable.

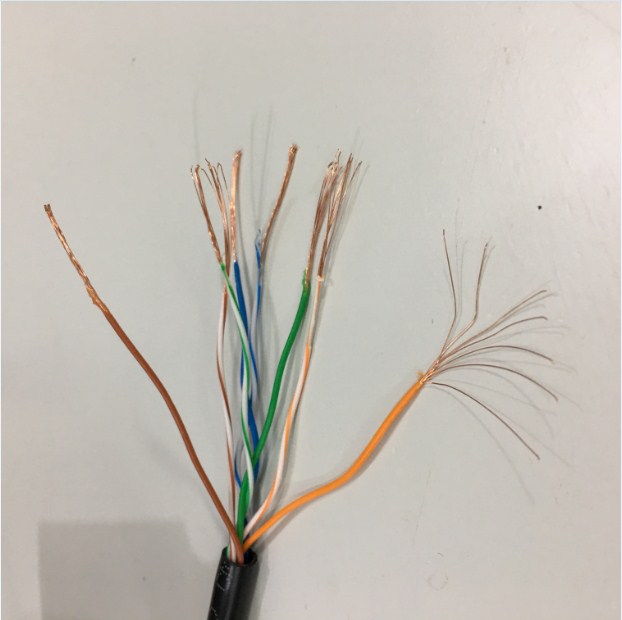

Cáp UTP xoắn chính xác 8 lõi được xoắn thành 4 cặp và mỗi lõi được xoắn bởi 7 sợi dây

Đồng không có oxy. Việc xoắn chính xác có thể chống lại hiệu quả

nhiễu xuyên âm giữa các cặp, đảm bảo sự ổn định của việc truyền tín hiệu.

Thương hiệu: Patch Cord Crossover Cable Ethernet
Xuất xứ/Nguồn hãng: Viêt Nam/ Thiên Trương PC- KTT
Loại sản phẩm: Dây Nhẩy Chuẩn Chéo CAT5E U/UTP Patch Cord Crossover Cable Ethernet 4PR 24AWG Black Length 5M
Chuẩn cáp kết nối: 8 Wire Crossover Ethernet Cable
Cáp loại: Cat5e TIA/EIA-568B-CM 100 MHz
Chỉ số chỉ cỡ dây dẫn theo tiêu chuẩn: 24 AWG (cáp đồng bên nhiều sợi 7x0.20mm)
Đường kính ngoài sợi cáp: 5.0mm
Chuẩn sắp xếp dây mạng TIA/EIA-568B.2: 1-2 / 3-6 / 4-5 / 7-8
Chuẩn đấu cáp Chuẩn Chéo TIA/EIA-568C.2 RoHS: 1-3 / 2-6 / 3-1 / 4-4 / 5-5 / 6-2 / 7-7 / 8-8
Sợi cáp đồng 8 lõi 4 cặp xoắn đôi Size: 8x0.45mm
Chất lượng cáp: Đồng 8 lõi 4 đôi sợi vỏ bọc cách nhiệt PVC tròn mềm dẻo
Tốc độ tối đa: 1 Gbps
Nhiệt độ : 0 ° C đến + 60 ° C
Trọng lượng của sản phẩm: 120g
Mầu sắc: Black
Chiều dài sợi cáp: 5M
Đóng gói bao bì sản phẩm: Tem nhãn hàng hóa bằng túi nilon mỗi túi một sợi

Dây Nhẩy Chuẩn Chéo CAT5E U/UTP Patch Cord Crossover Cable Ethernet 4PR 24AWG Black Length 5M là sản phẩm cáp mạng chất lượng cao Patch Cord…Cáp được sản xuất theo tiêu chuẩn Cat5E TIA/EIA-568B 24 AWG UTP PVC 100 MHz 8 Wire Crossover Ethernet Cable đáp ứng tấc độ truyền dữ liệu tốt đa 1 Gbps đầu bấm RJ45 UTP Cat5E đầu nối RJ45 Connector (8P8C) Modular Plug and jack Network Male cho khả năng truyền dữ liệu tốt.
Cáp được sử dụng phù hợp trong nhiều lĩnh vực kết nối công nghệ thông tìn và truyền dữ liệu cho các ứng dụng sử dụng kết nối mạng 1 Gbps. Các ứng dụng trên 1 Gbps trở lên cáp không đáp ứng được.

HARDWARE



Cable Jacket Type

PVC - Polyvinyl Chloride



Cable Type

Molded



Fire Rating

CMG Rated (General Purpose)



Number of Conductors

4 Pair UTP



Wiring Standard

TIA/EIA-568B.2

PERFORMANCE



Cable Rating

CAT5E - 100 MHz

CONNECTOR(S)



Connector A

1 - RJ-45 Male



Connector B

1 - RJ-45 Male

PHYSICAL CHARACTERISTICS



Cable Length

5M



Color

Black



Conductor Type

Crossover Ethernet Cable



Product Weight

120g



Wire Gauge

24 AWG

Thiên Trường có thu mua lại và đổi các những sản phẩm của Thiên Trường với sản phẩm của khách hàng như dây nguồn C5, C7, C13, C14, C15, C19, C20, C21 của máy tính, máy chủ, PDU, cáp mạng, cáp quang, dây nhẩy mạng lan, dây nhẩy quang, Adapter chuyển nguồn các loại, đầu bấm mạng, Patch Panel, Wallplate….tất cả các sản phẩm liên quan đến kết cáp kết nối máy tính và thiết bị mạng và văn phòng.

Những sản phẩm khách hàng đã mua từ nhà cung cấp khác về không thể hợp nhất với hệ thống cần sử dụng có thể liên hệ với Thiên Trường để đổi các sản phẩm với Thiên Trường hoặc bán lại cho Thiên Trường người bên công ty Thiên Trường sẽ qua tận nơi để mua lại sản phẩm với giá tốt nhât.

Các sản phẩm Thiên Trường bán ra được bảo hành đổi mới 100 % theo tiêu chuẩn của nhà sản xuất. Khác hàng mua hàng của Thiên Trường về không thể kết nối với thiết bị hoặc bị bên đối tác không cần hàng nữa Thiên Trường sẽ hoàn trả 100 % số tiền giao dịch với khách hàng trong vòng 10 ngày kể từ ngày bán.
