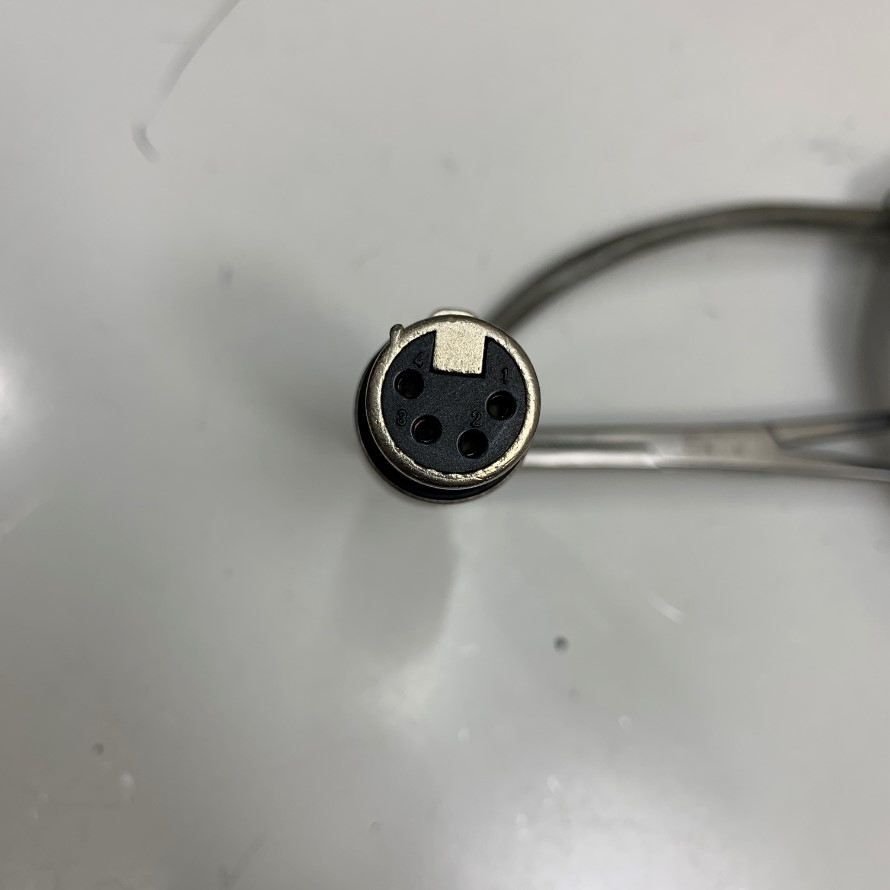

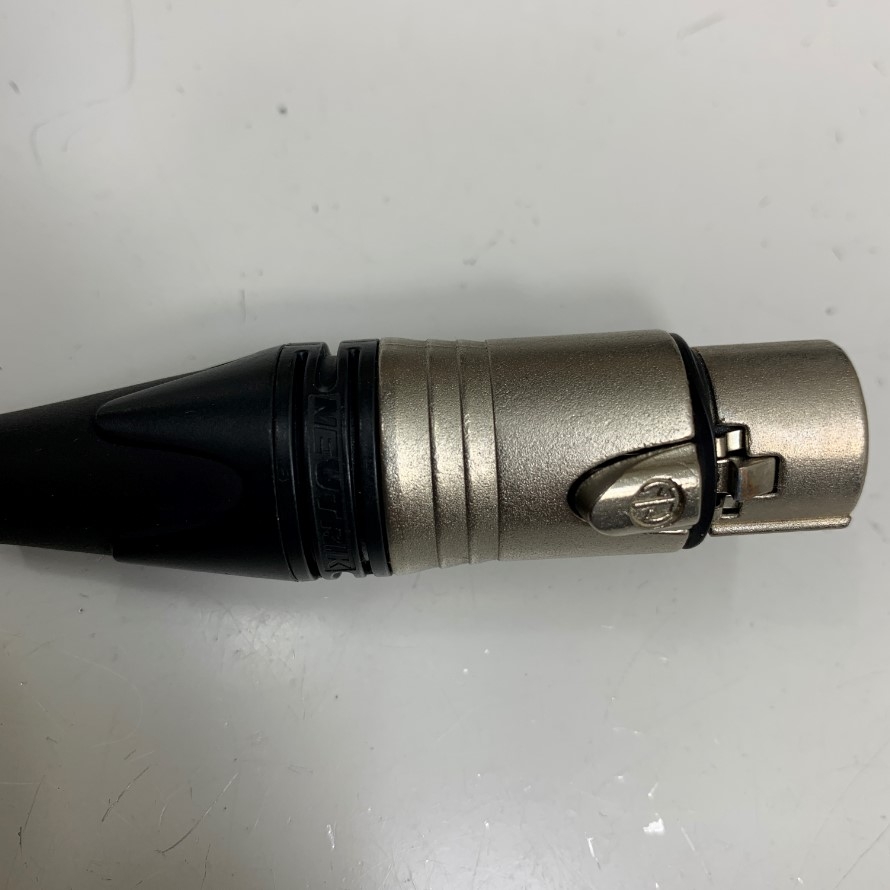

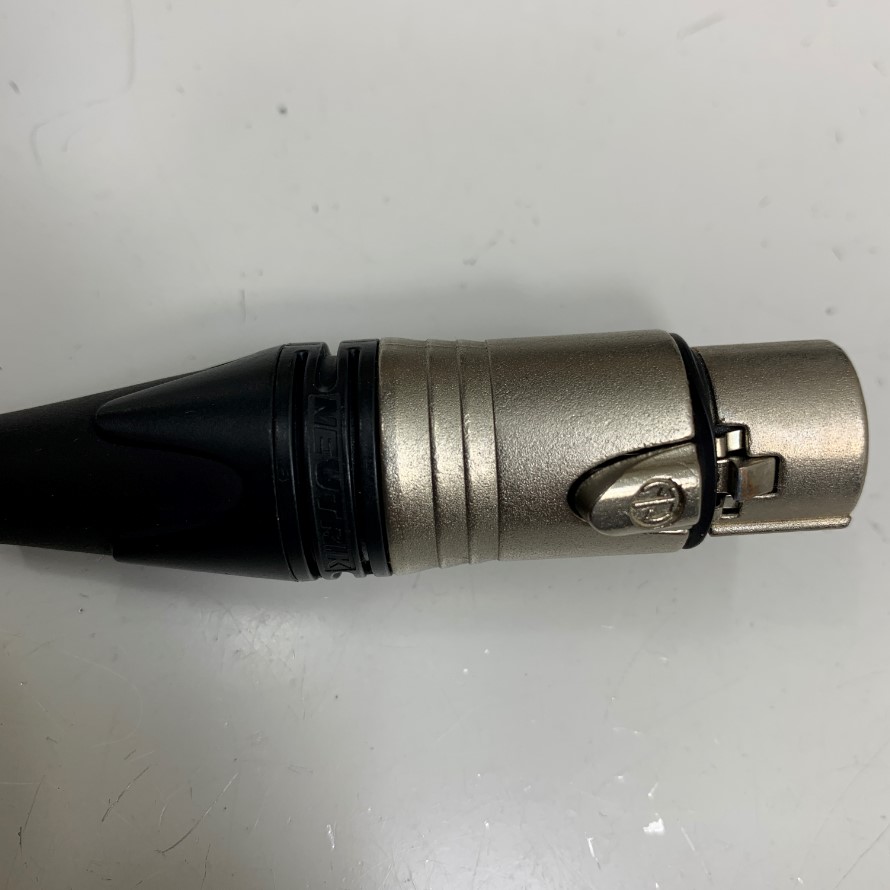

Đầu Jack NEUTRIK Connector NC4FX XLR 4 Pin Female For Medical Hospital, Microphone

Mã SP: 11045

Thương hiệu: NEUTRIK

Loại sản phẩm: 4 Way Female XLR

Đánh giá

:

Giá

:

150.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/NEUTRIK XLR Connector
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online

Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
: vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800

‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

NEUTRIK Connector NC4FX XLR 4 Pin Female and NEUTRIK Connector NC4FX XLR 4 Pin Male

Technical Information
Product
Title: NC4FX
Connection Type: XLR
Gender: Female
Electrical
Capacitance between contacts: ≤ 7 pF
Contact resistance: ≤ 3 mΩ
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 10 A
Rated voltage: < 50 V
Mechanical
Cable O.D.: 3.5 - 8.0 mm
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wiresize: max. 1.5 mm²
Wiresize: max. 16 AWG
Wiring: Solder contacts
Locking: device    Latch lock
Material
Boot: Polyurethan
Contact plating: 2 µm Ag over 2 µm Ni
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA66)
Locking element: St3K32 (latch) / Ck 67 (spring)
Shell: Zinc diecast (ZnAl4Cu1)
Shell: plating    Nickel
Strain relief: Polyacetal (POM)
Environmental
Approvals: UL
Flammability: UL 94 V-0
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
Đầu Jack NEUTRIK Connector NC4FX XLR 4 Pin Female For Medical Hospital, Microphone
