Đầu Jack Lumberg Automation Connector M12 A-Coded 5 Pin Female Straight IP65, IP67, RSC Series For Industrial Sensor Cable M12 Connector Circular

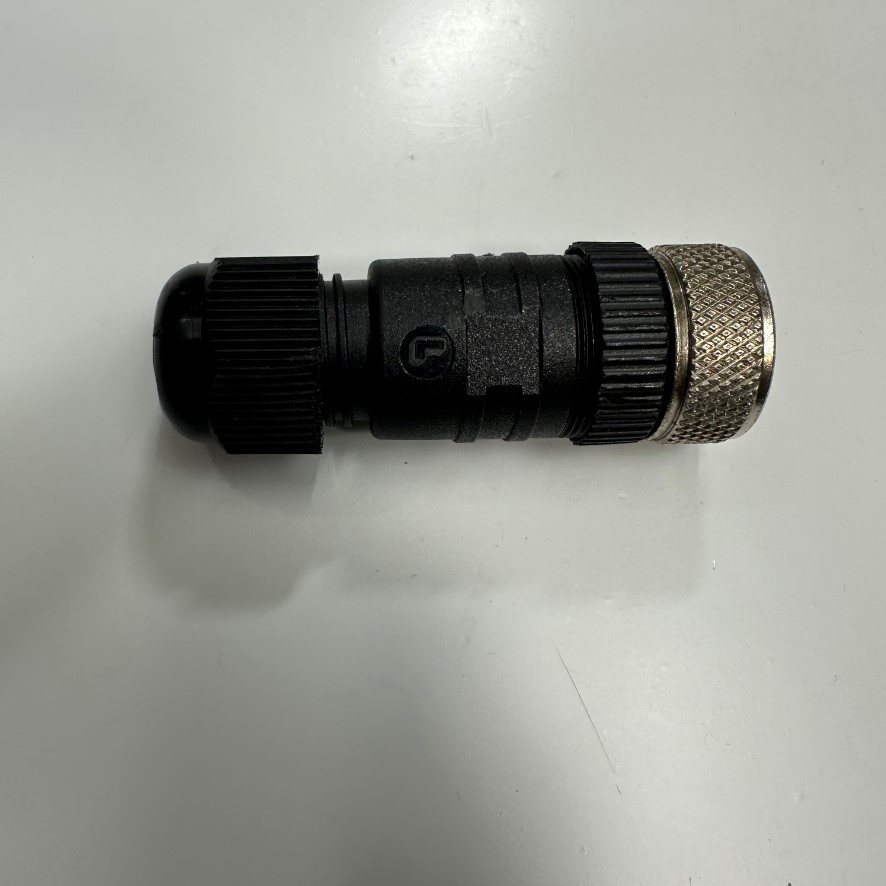

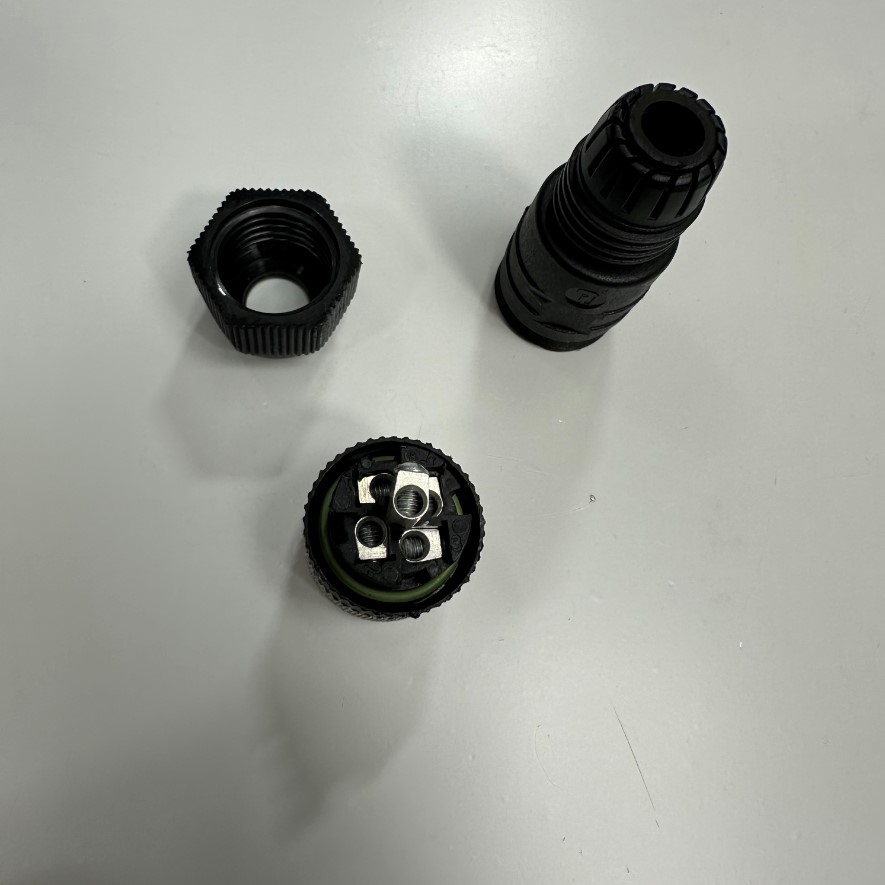

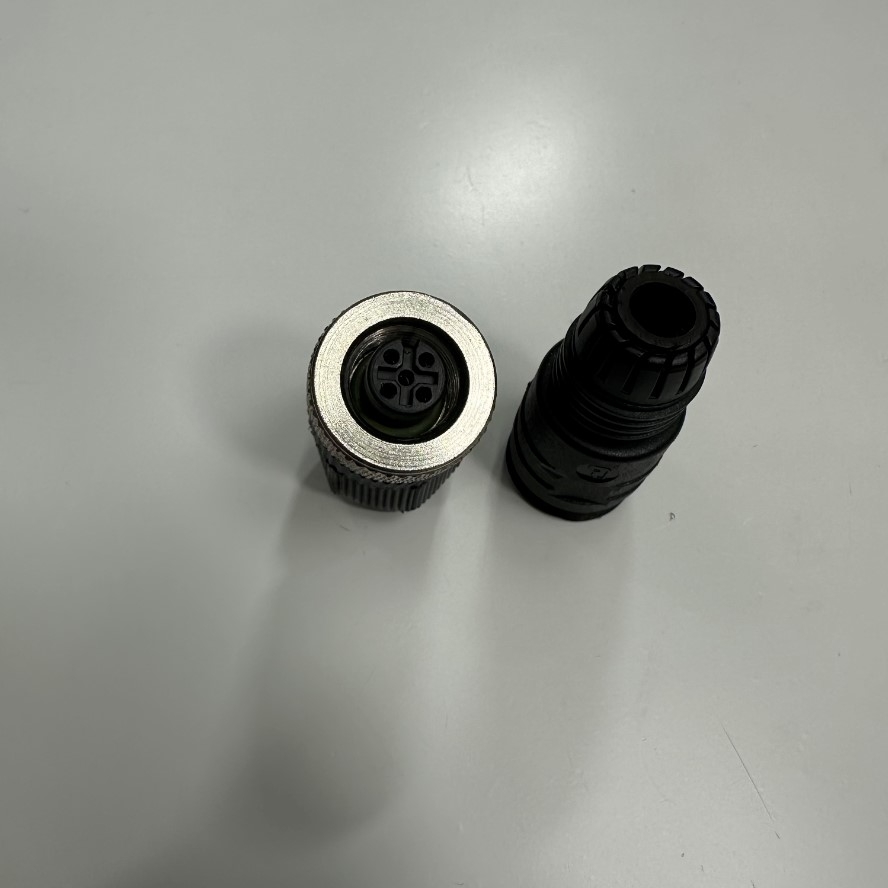

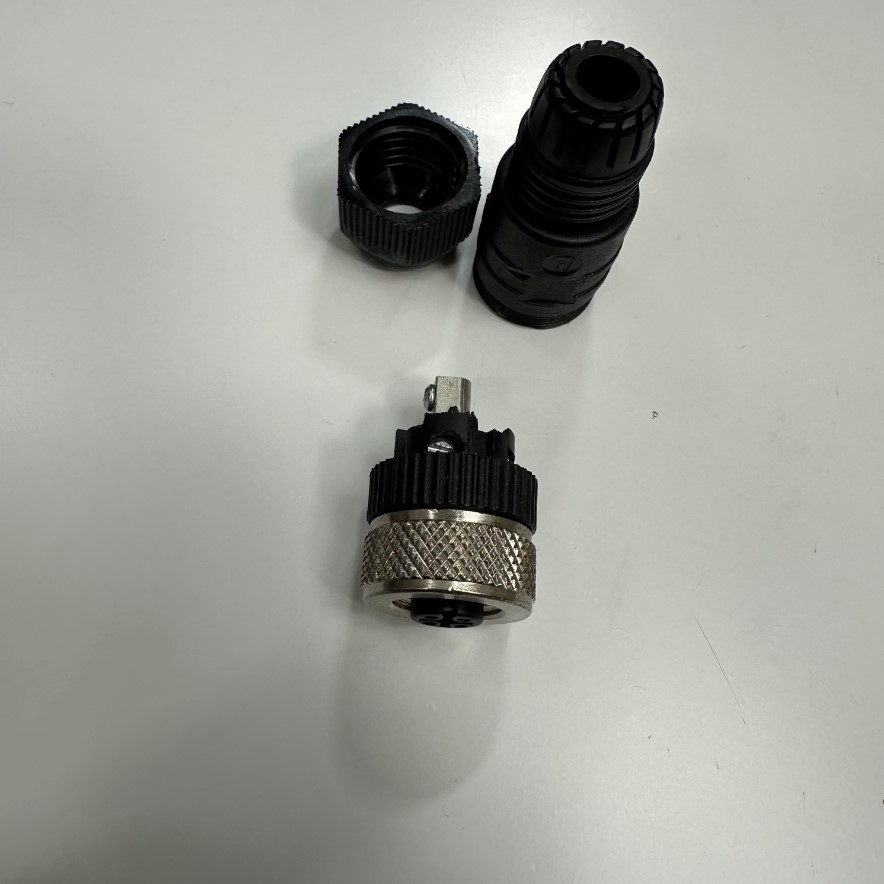

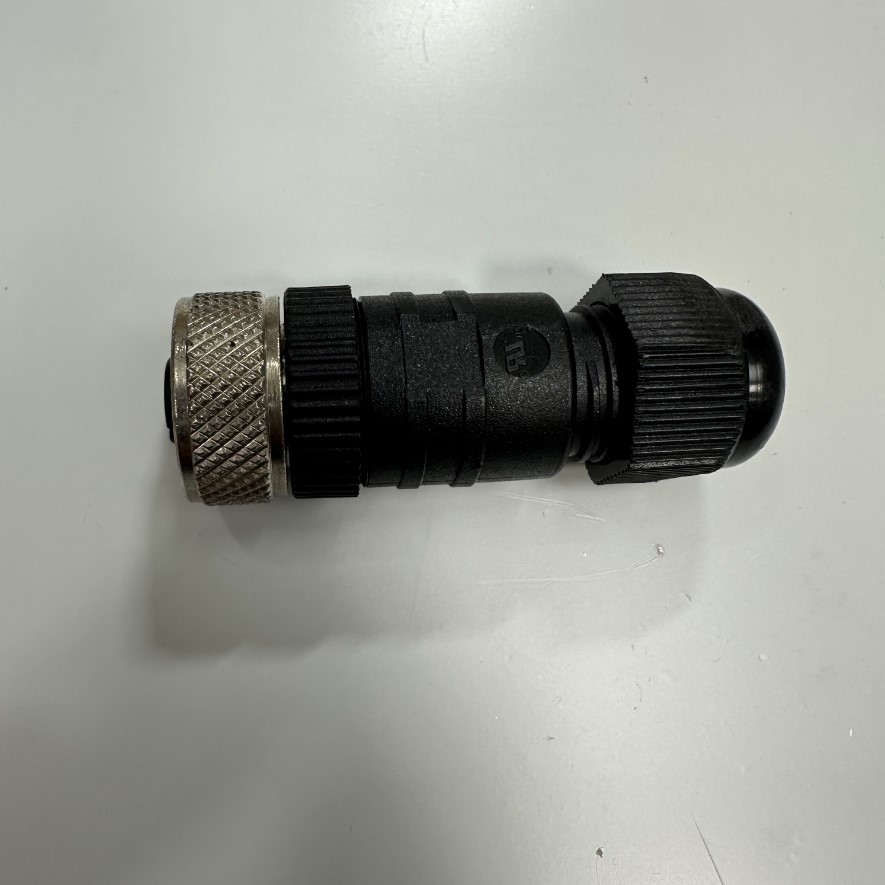

Lumberg Automation M12 A-Coded Connector 5 Pin Female Straight

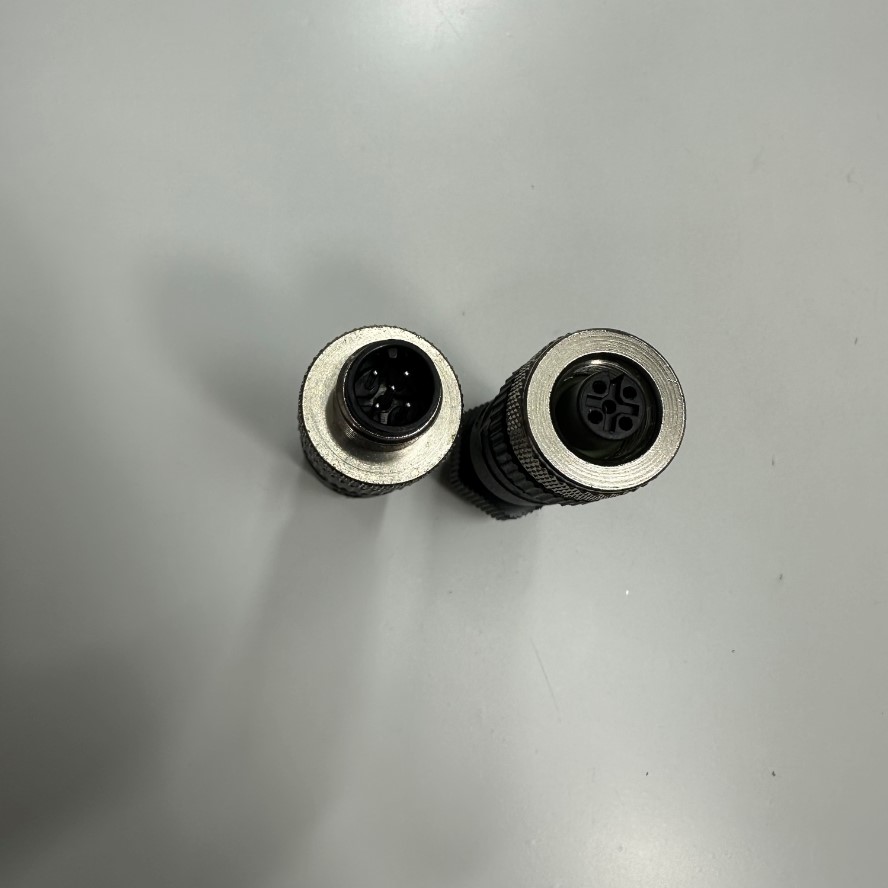

Lumberg Automation Connector M12 A-Coded 5 Pin Male + Female

Specifications
Dimensions- 52.5 mm Length x 20 mm Diameter (2" x 0.78")
Type of Contact- Female Straight

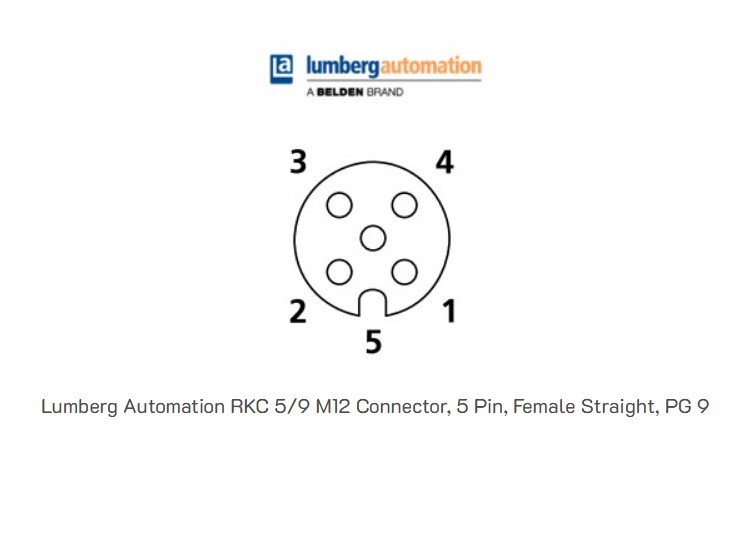

Number of Pins- 5
Rated Voltage- 63 V
Nominal Voltage- 60 V
Nominal Current- 4 Amps
Conductor Size- 0.75 mm2
Cable Diameter Range- 4-8 mm
Protection Class- IP 67 (Totally protected from dust & temporary immersion in water at a depth of 1 meter for 30 min) / NEMA 6P
Housing Material- PBT (Polybutylene terephthalate thermoplastic)
Insert Material- PBT (Polybutylene terephthalate thermoplastic)
Contact Material- CuZn (Brass) pre-coppered, CuSnZn (Copper-Tin-Zinc)
Receptacle Shell- CuZn (Brass), nickel plated
O-Ring Material- FKM (Fluro-Elastomer rubber)
Type of Connection- Screw Terminals
Contact Resistance- </= 5 mOhm
Insulation Resistance- > 109 Ohm
Operating Temperature- -25 C to 90 C (-13 F to 194 F)
