Đầu Jack Connector Solder Type Hirose 20 Pin Female Connector HR25-9TP-20S(73) 20 Positions Circular Meta Silver

Mã SP: 11226

Thương hiệu: Hirose Electric

Loại sản phẩm: Connector Hirose 20 Pin Female

Đánh giá

:

Giá

:

1.100.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Japan/Hirose Electric Connector
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

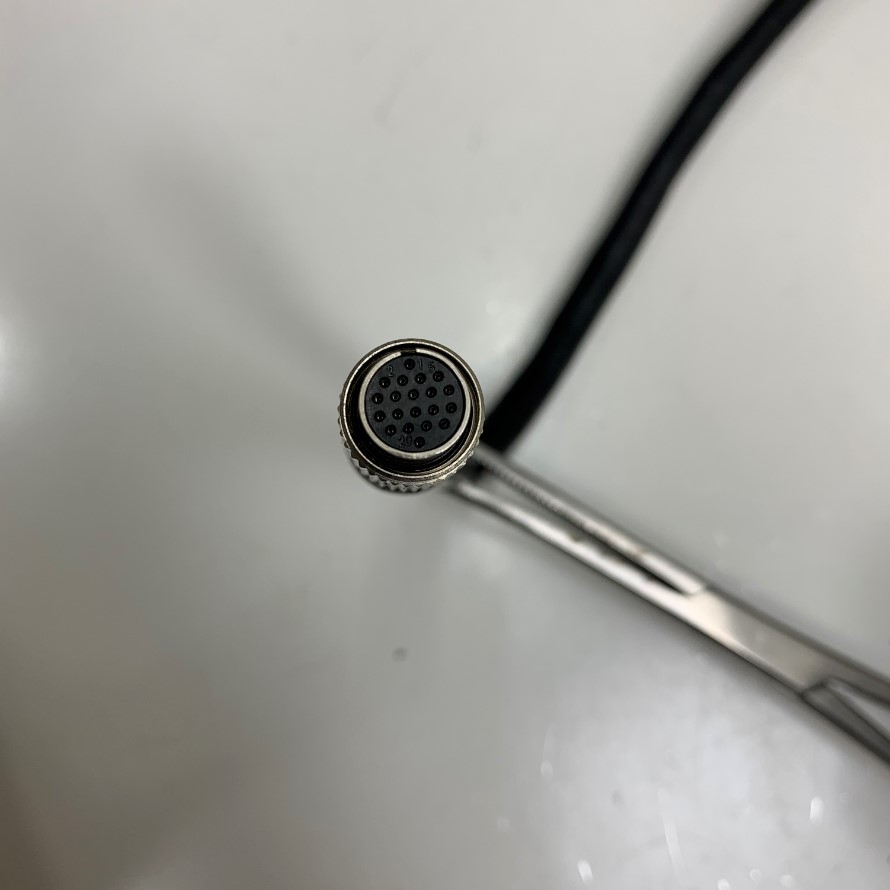

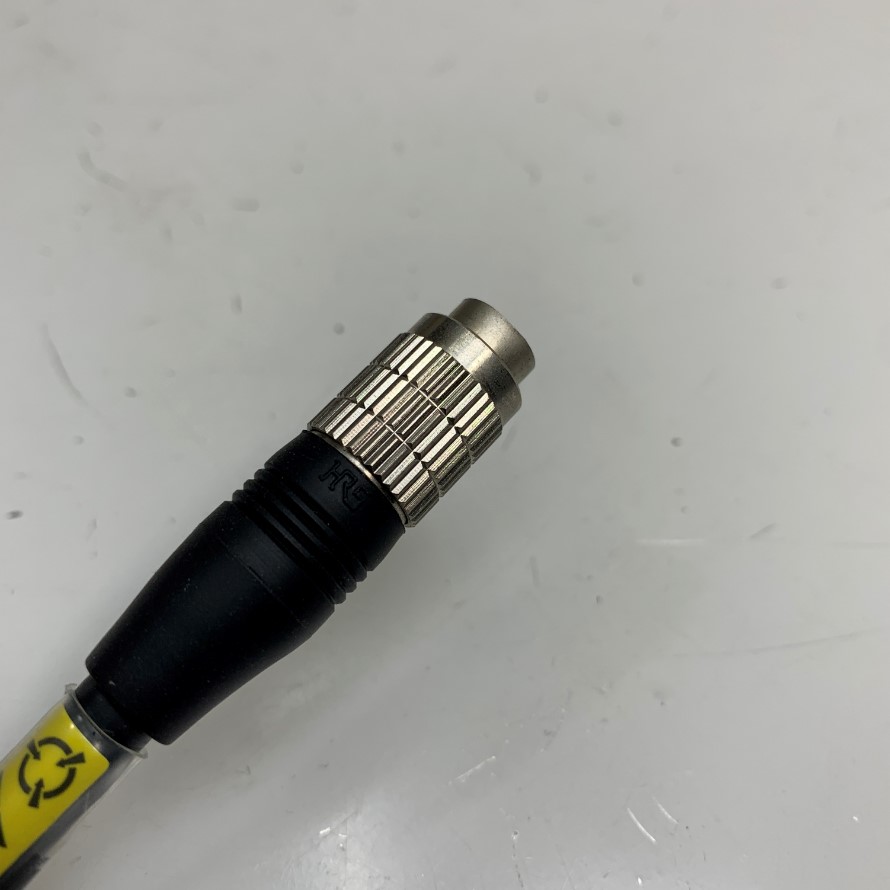

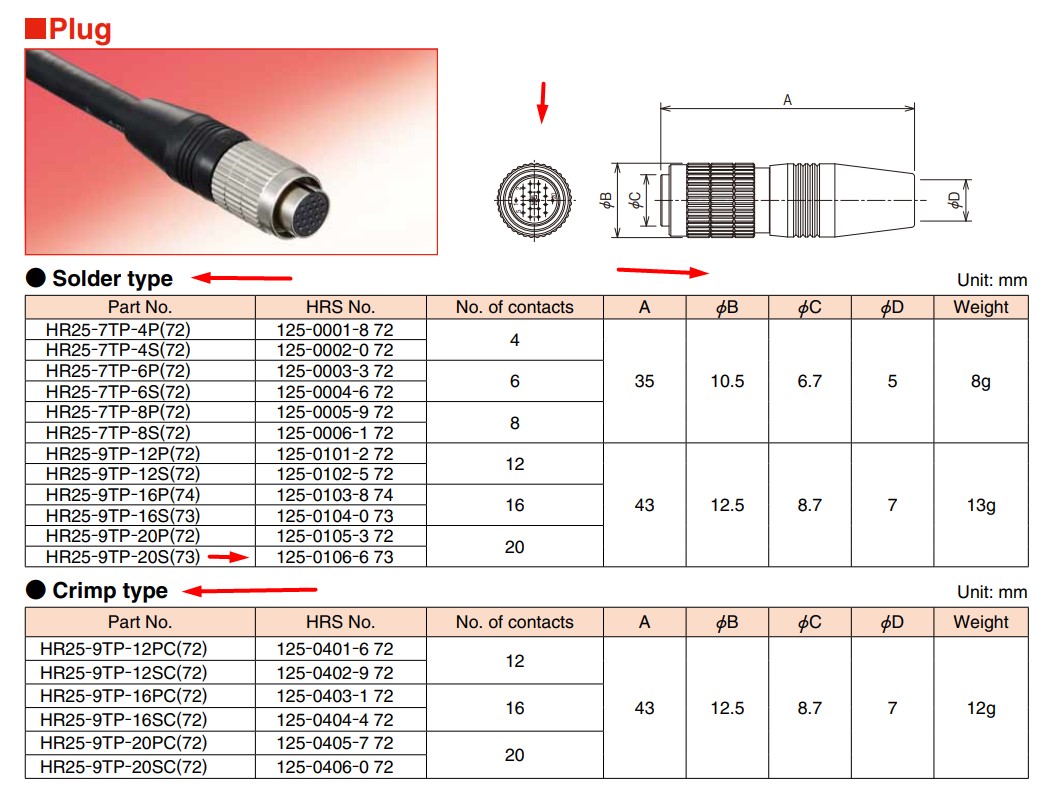

Connector Hirose 20 Pin Female HR25-9TP-20S(73) 20 Positions Circular Meta Silver

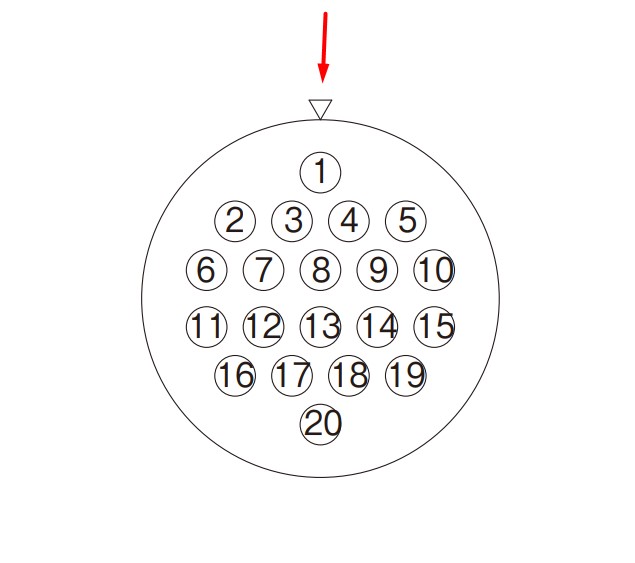

Contact confi guration Number of contacts

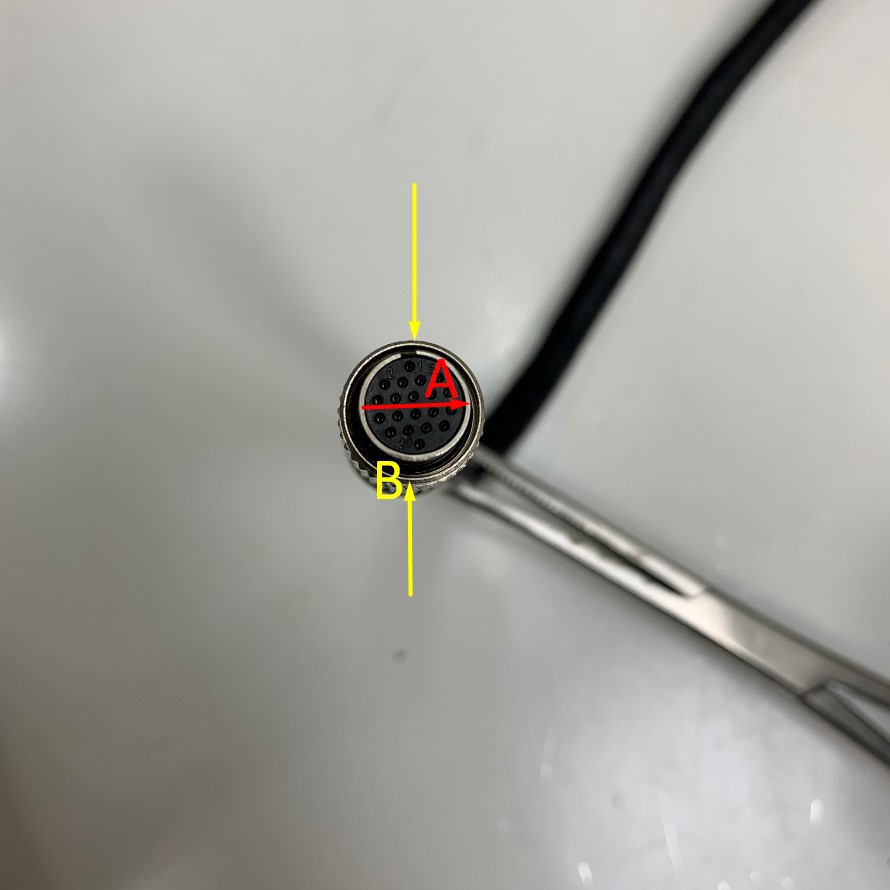

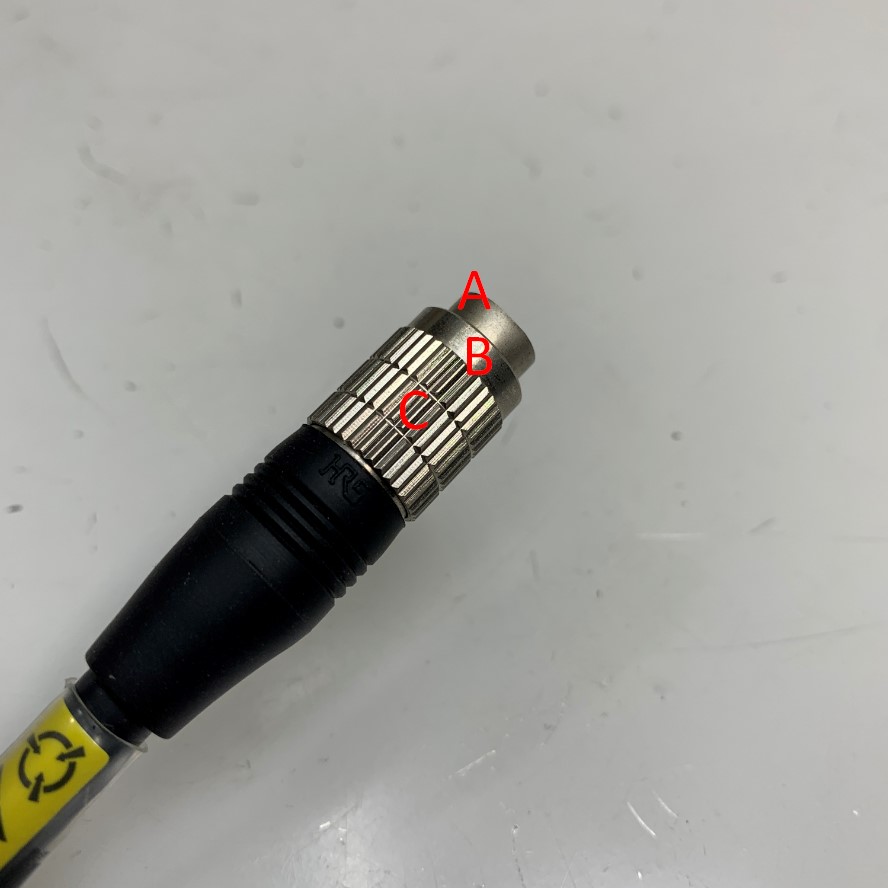

Dimension(mm) ΦA=8.7, ΦB=12

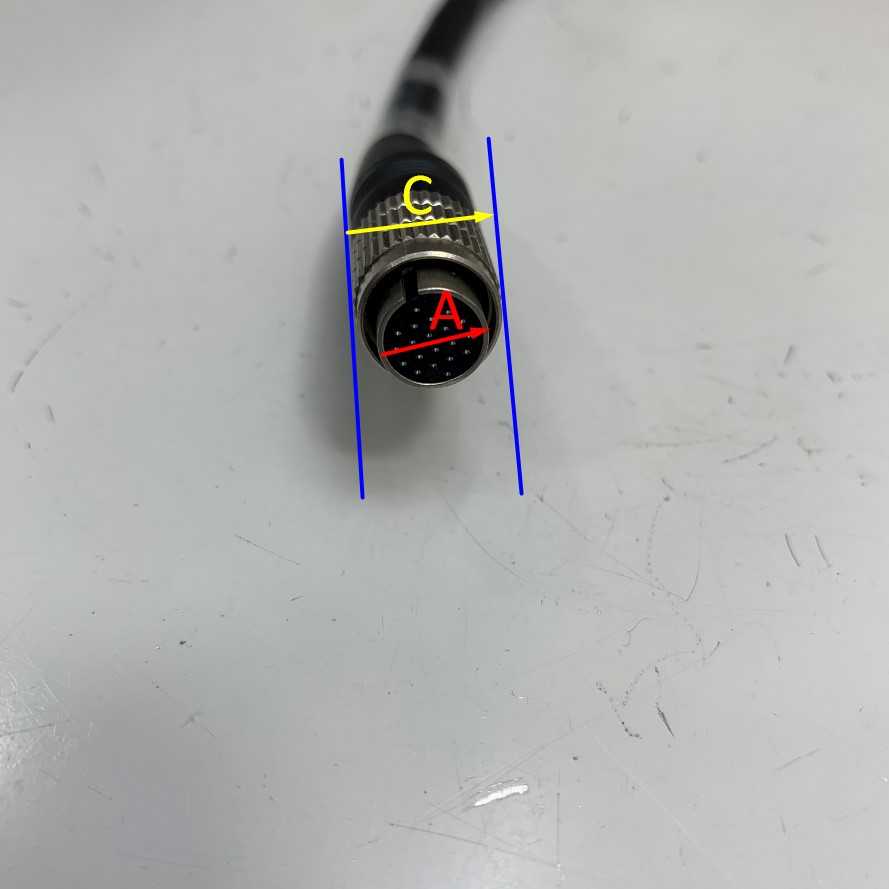

Dimension(mm) ΦA=8.7, ΦC=12.5

20 Core Open End

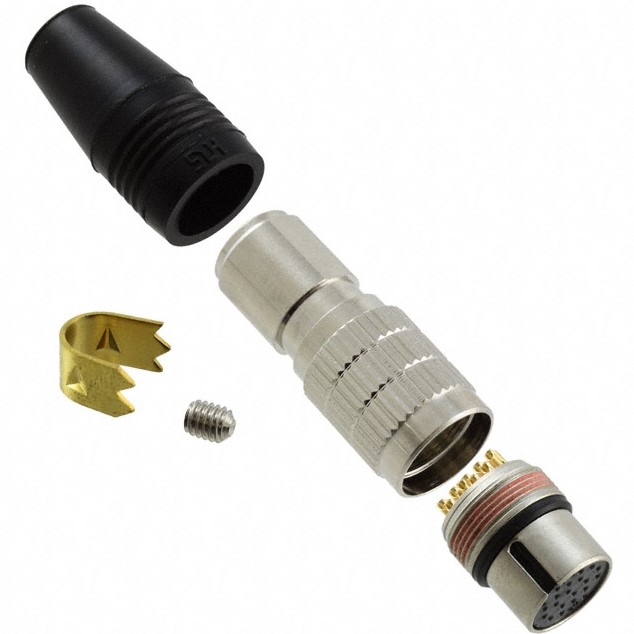

Hirose HR25 Series Circular Connectors

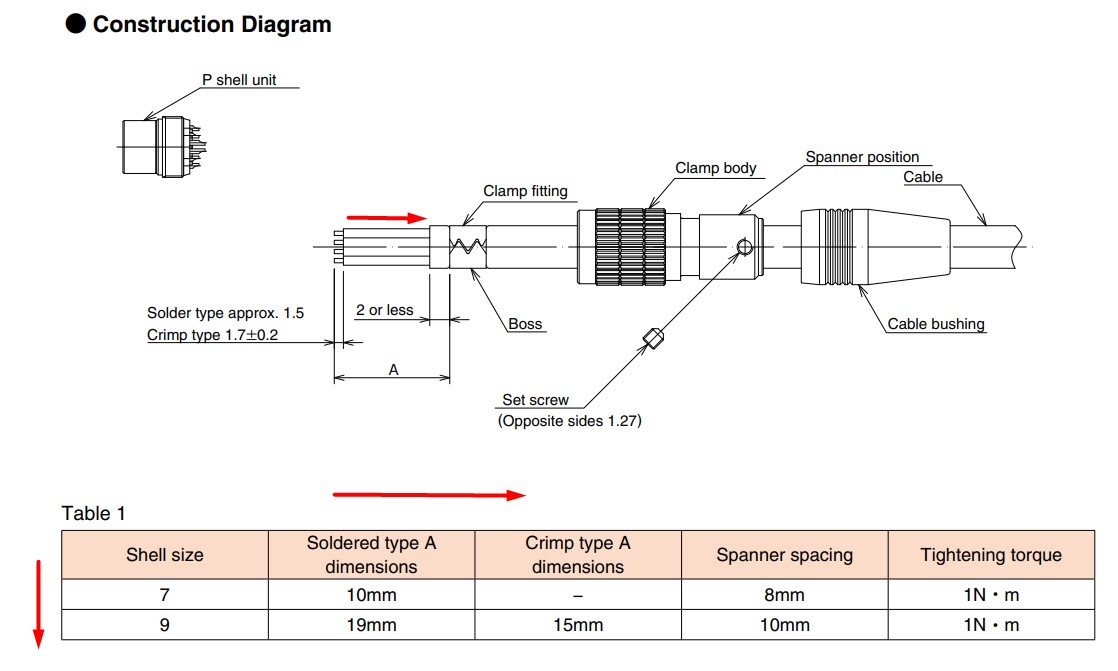

Construction Diagram

Specifications
Brand: Japan/Original Hirose Electric Connector
Hirose Electric Co Ltd
Series: HR25
Models: HR25-9TP-20S(73)
Connector Type: Plug, Female Pins
Number of Positions: 20
Shell Size - Insert: 9
Termination: Solder Cup
Contact Finish - Mating: Gold
Color: Black, Silver
Shielding: Unshielded
Current Rating (Amps): 1A
Voltage Rating: 30VAC, 42VDC
Operating Temperature: -25°C ~ 85°C
Đầu Jack Connector Solder Type Hirose 20 Pin Female Connector HR25-9TP-20S(73) 20 Positions Circular Meta Silver
