Đầu Jack Connector Binder M16 6 Pin Male A-code Screw Contacts 300V 5A Type Gold Plated For Servo Drive Encoder, Control Cable and Data Power, System Sensor

Đầu Jack Connector Binder M16 6 Pin Male A-code Screw Contacts 300V 5A Type Gold Plated For Servo Drive Encoder, Control Cable and Data Power, System Sensor

Mã SP: 10852

Thương hiệu: BINDER

Loại sản phẩm: M16 6 Pin Male A-Code

Đánh giá

Giá

600.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/Original Binder M16 Connector
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

Chi Tiết Sản Phẩm

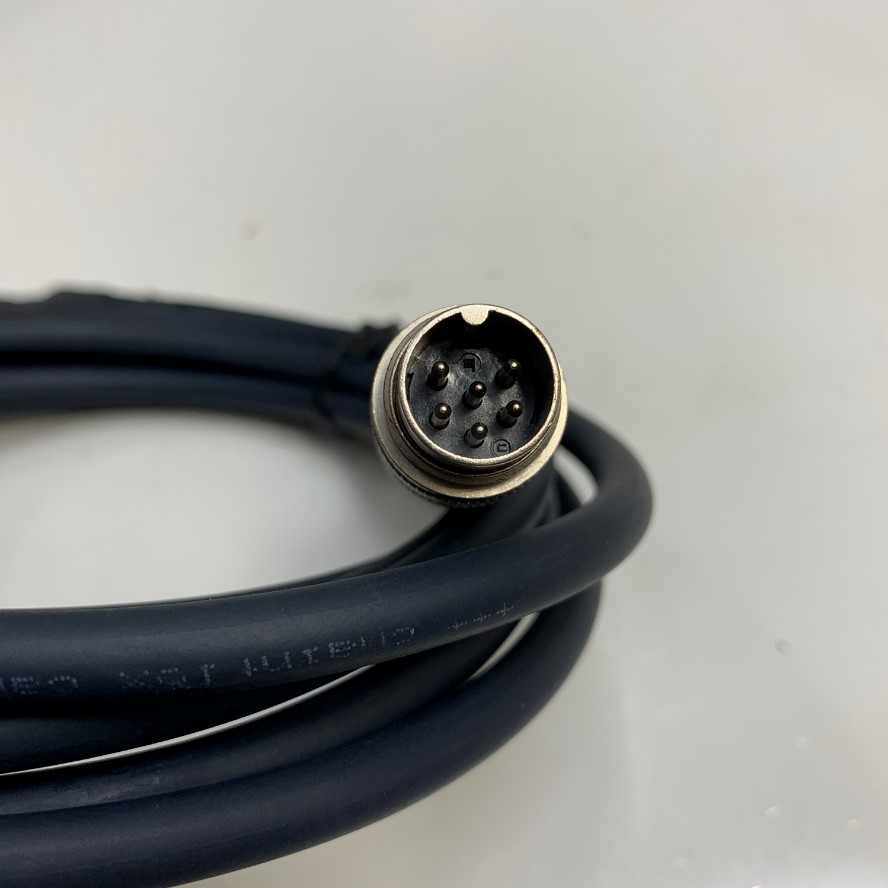

Connector Binder M16 6 Pin Male A-code Screw Contacts 300V 5A IP67

Connector Binder M16 6 Pin Male

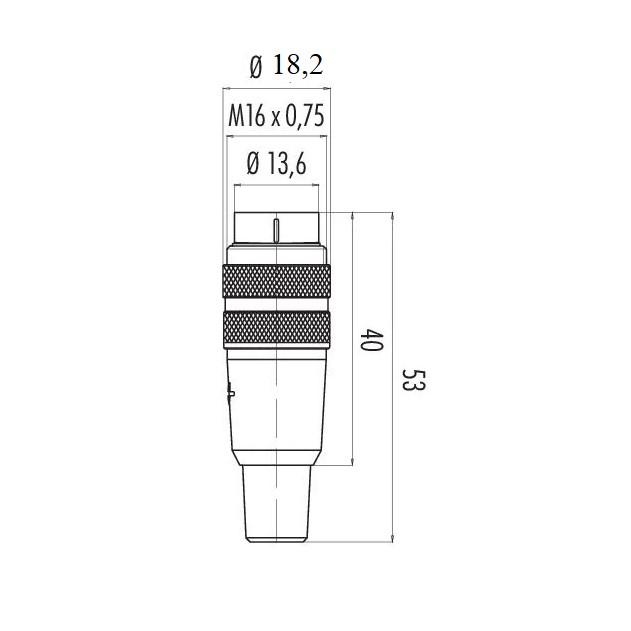

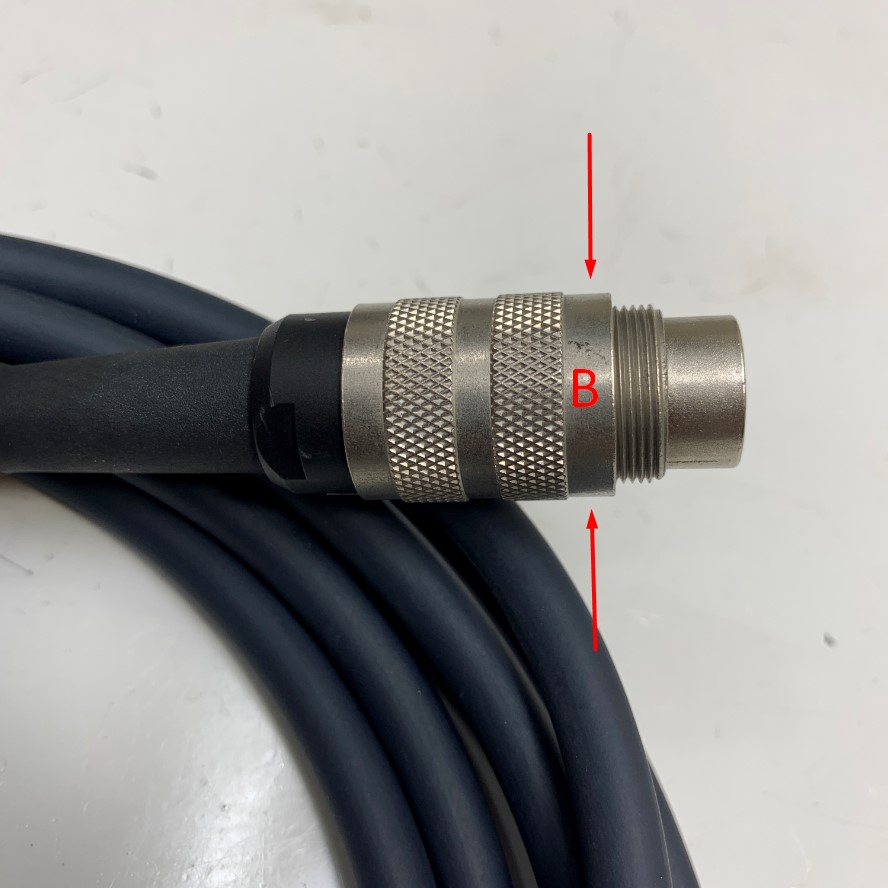

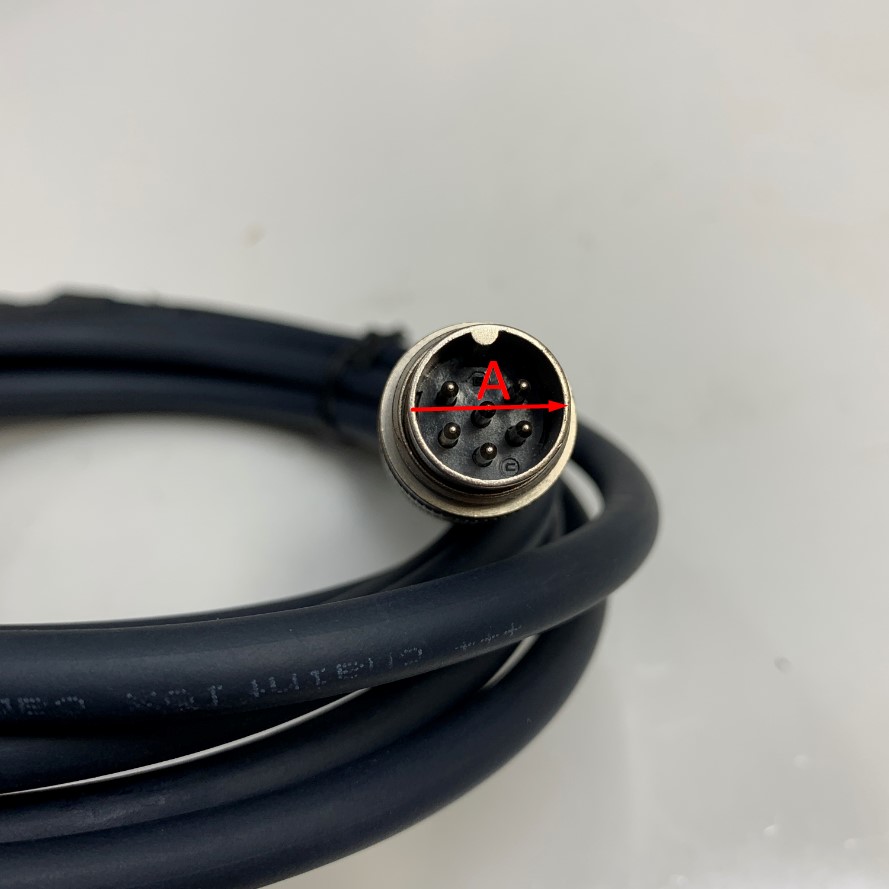

Dimension(mm) ΦA=13.6, ΦB=18.2

Specifications
Number of Contacts: 6
Gender: Male
Mounting Type: Cable Mount
Connector Size: M16
Mating Type: Screw On
Termination Method: Solder
Body Orientation: Straight
Current Rating: 5A
Voltage Rating: 300 V ac/dc
IP Rating: IP67
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +100°C
Contact Plating: Silver
