Đầu Bấm Mạng CAT6A CAT7 RJ45 8P8C Modular Shielded Connector 50 Pcs

Mã SP: 0901

Thương hiệu: China Connector CAT6A CAT7

Loại sản phẩm: RJ45 8P8C Modular Shielded

Đánh giá

:

Giá

:

800.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/Connector RJ45
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online

Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
: vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800

‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

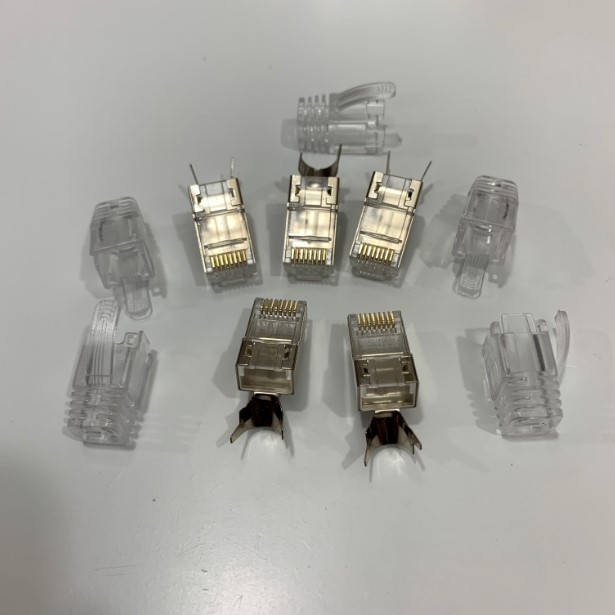

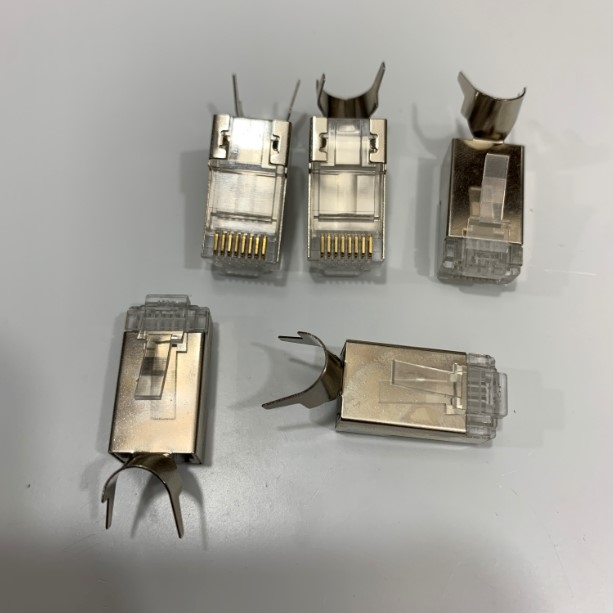

Black Copper CAT-7 Connector

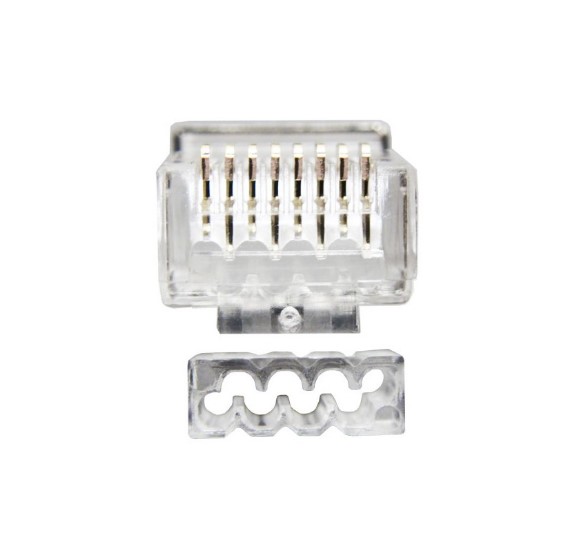

These RJ45 connectors are designed to work specifically with CAT 6, CAT 6A, and CAT 7 cable. These RJ45 connectors are gold plated and work with solid and stranded cable. They have 8 pins and 8 conductors (8p8c). The inserts are also included—they’re part of the design. The wire alignment insert provides an efficient cable assembly.
Features
Ideal for creating superior high performance CAT6A patch cables in 10Gigabit Ethernet applications where high density routers and switches are employed
Meets CAT6a performance requirements per ANSI/TIA-568-B.2-10
Robust shield termination and strain relief allow for one-step termination process

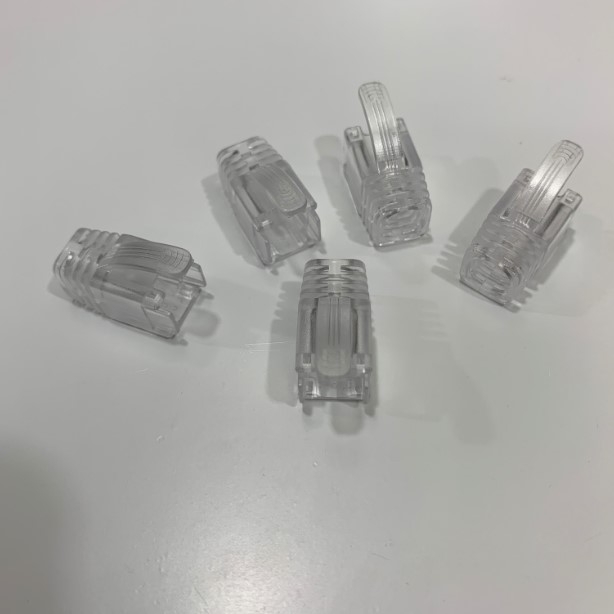

Optional slim line boot features integrated strain relief and latch protection
Selectively plated contacts with 50 micro-inches of gold
UL 94-V0 plastic components
RoHS compliant
Electrical Specifications
• UL Applications: 250 Volts AC Max., at 2 AMPS
• Dielectric With Standing Voltage: 500 Volts AC
• Insulation Resistance: 100 M Ω
• Termination: Resistance 20m Ω Max After
Đầu Bấm Mạng CAT6A CAT7 RJ45 8P8C Modular Shielded Connector 50 Pcs
