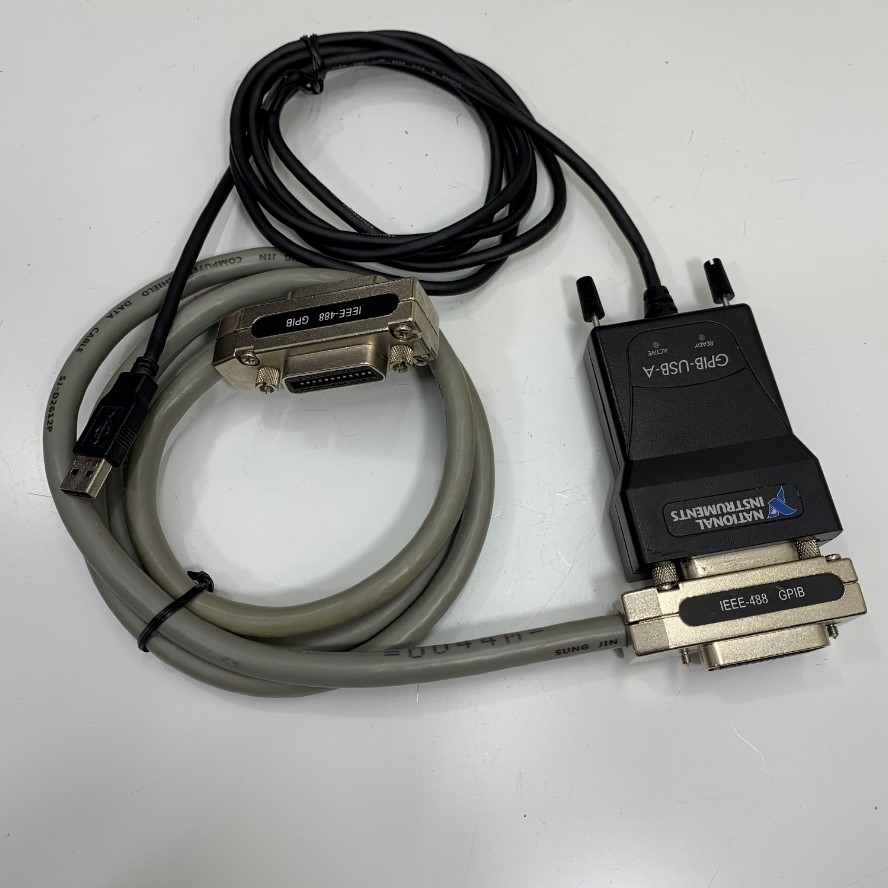

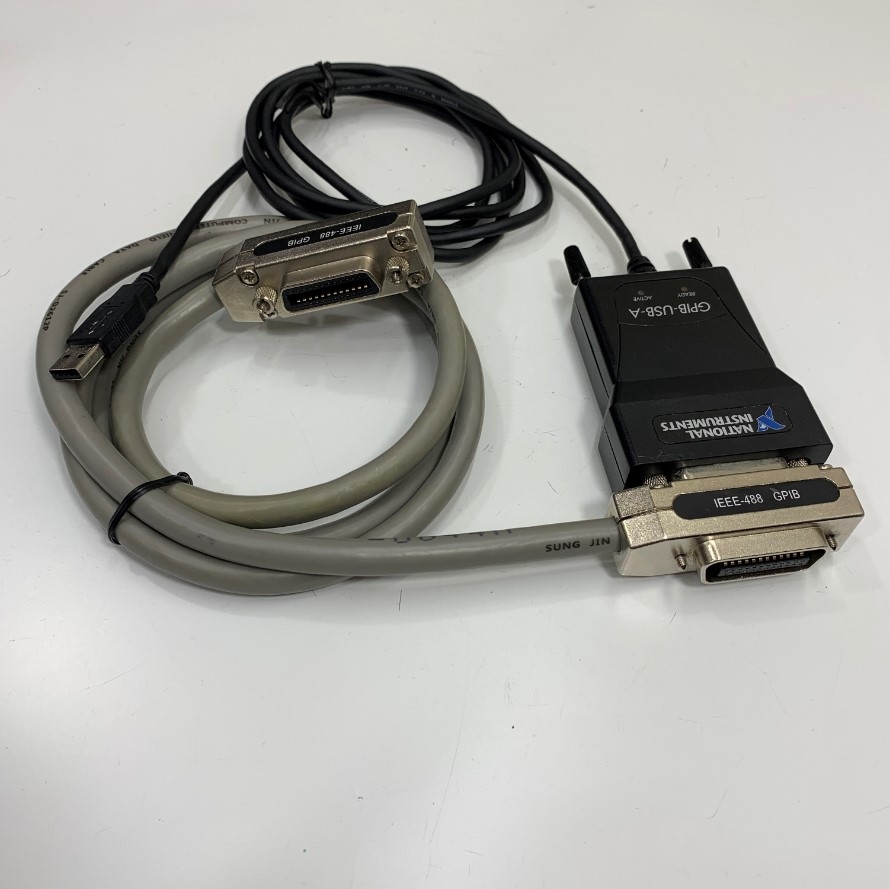

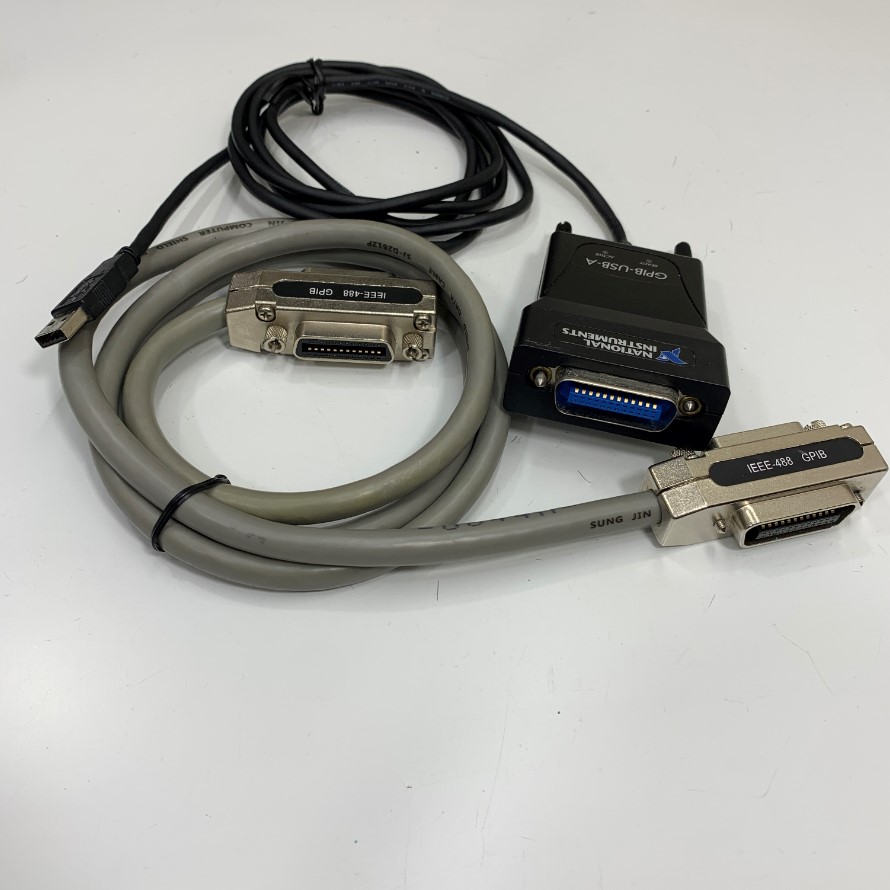

Combo GPIB-USB-A National Instruments GPIB Adapter Dài 2M 6.5ft + Cáp SUNG JIN IEEE 488.2 GPIB CN24 Pin Male to Female Cable Dài 1M 3.3ft

Cáp Chuyển USB to National Instruments GPIB-USB-A Controller Dài 2M

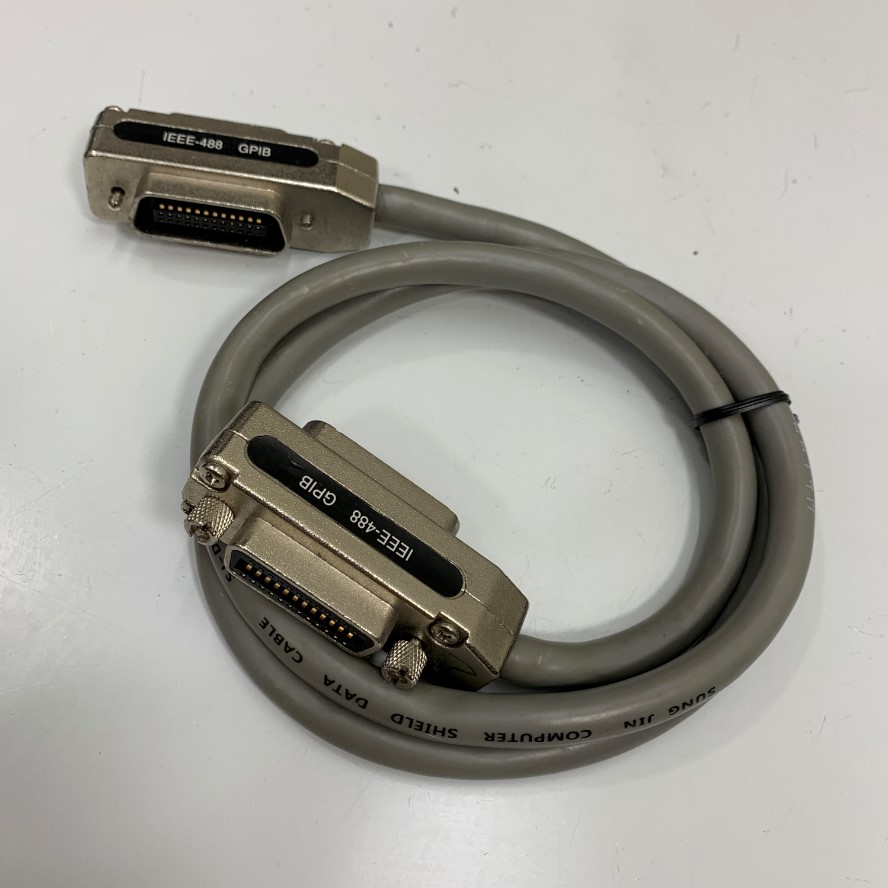

Cáp SUNG JIN IEEE 488.2 GPIB CN24 Pin Male to Female Cable Dài 1M 3.3ft in Korea For GPIB Instrument PCI/GPIB or PCIe/GPIB Card and LAN/GPIB/USB

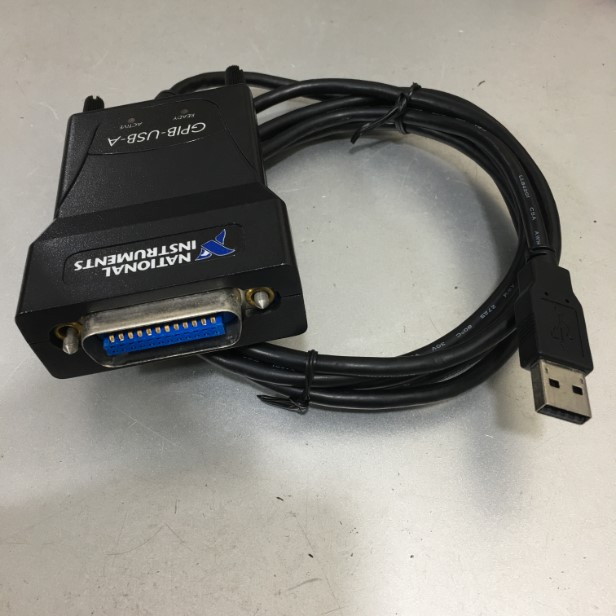

GPIB-USB-A National Instruments GPIB Adapter
Supported in version 2.2 of NI-488.2 or earlier
Not supported in versions later than 2.2
Completely IEEE 488.2 compatible
Controls up to 14 GPIB instruments
Compact size and light weight
Plug and Play configuration
USB 2.0 full-speed signaling – 12 Mb/s
650 kB/s maximum transfer rate
No external power required
Built-in 2 m USB cable
No GPIB cable required to connect to instruments
Operating Systems
Windows window7/2000/XP/Me/98
Recommended Software
LabVIEW
LabWindows/CVI
Measurement Studio
Specifications:
USB Port
Full-speed USB signaling: 12 Mb/s
IEEE 488 Compatibility
IEEE 488.1 and IEEE 488.2 compatible
Maximum IEEE 488 Bus Transfer Rates
Standard IEEE 488 handshake: 650 kB/s
External Indicators
USB configured, USB active
Power Requirement
USB self-powered device
Maximum power consumption: 200 mA
Physical
Dimensions: 10.7 by 6.6 by 2.6 cm (4.2 by 2.6 by 1.0 in.)
I/O Connectors
GPIB: IEEE 488 standard 24 pin
USB: USB standard series A plug
Operating Environment
Temperature: 0 to 55 °C
Relative humidity: 10 to 90%, noncondensing
Storage Environment
Temperature: -20 to 70 °C
Relative humidity: 5 to 95%, noncondensing
On a Windows operating system, NI-488.2 versions 2.0 - 2.3 support both the GPIB-USB-A and the GPIB-USB-B. There is no support for GPIB-USB-A on a Linux operating system.
The compact National Instruments GPIB-USB-A transforms any computer with a USB port into a full-function, IEEE 488.2 controller that can control up to 14 programmable GPIB instruments.
The small size and light weight of the NI GPIB-USB-A make it ideal for portable applications using a laptop computer or other applications in which the computer has no available internal I/O slots.
The GPIB-USB-A works with Windows 2000/XP/Me/98 computers with a USB port.
The GPIB-USB-A is easy to install and use because there are no external DIP switches and you do not need to restart your computer for the system to recognize your IEEE 488.2 interface.
The GPIB-USB-A is a plug-and-play interface that the OS automatically recognizes and configures as soon as you physically attach it to the USB port on your computer.
With the GPIB-USB-A, you can get up and running quickly, so you can focus on developing your instrument control applications.
Using a TNT family Talker/Listener/Controller IEEE 488.2 ASIC, the GPIB-USB-A implements the full range of GPIB controller functions, including those required and recommended by IEEE 488.2.
It also implements normal and extended talker and listener, serial and parallel polling, service requests, and pass/receive control functions. Drawing power directly from the USB port,
the GPIB-USB-A requires no external power input. With NI-488.2, you get a robust driver with additional utilities and wizards that help you troubleshoot your applications and decrease your development time.
Furthermore, you maintain compatibility with existing systems. Applications previously written for other National Instruments GPIB controllers can run unmodified with the GPIB-USB-A.
Combo GPIB-USB-A National Instruments GPIB Adapter Dài 2M 6.5ft + Cáp SUNG JIN IEEE 488.2 GPIB CN24 Pin Male to Female Cable Dài 1M 3.3ft
