Cáp SCL26-MS-500 Dài 5M 17ft Camera Link 26 Pin MDR to SDR Cable with Locking Screws For Camera industrial Basler PoCL SDR/MDR Data Cable Sumitomo E41105-Y

MDR 26 Pin Male Connector with Locking Screws Camera industrial

The standard prescribes 26-pin Miniature Delta Ribbon connectors (MDR-26) for use with Camera Link;
[1] the shrunk variant SDR-26 is allowed since standard version 1.2.

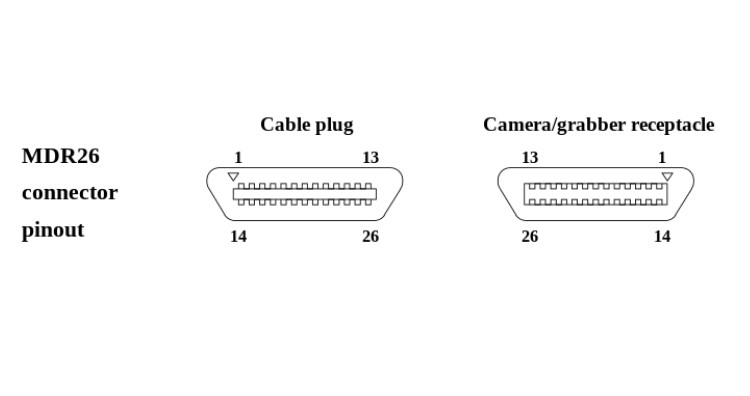

The connector pin assignments are shown in the large figure in the previous section. The connector pinout is the following:

MDR Straight To SDR Straight Cable

Wiring Diagram MDR Straight To SDR Straight Cable

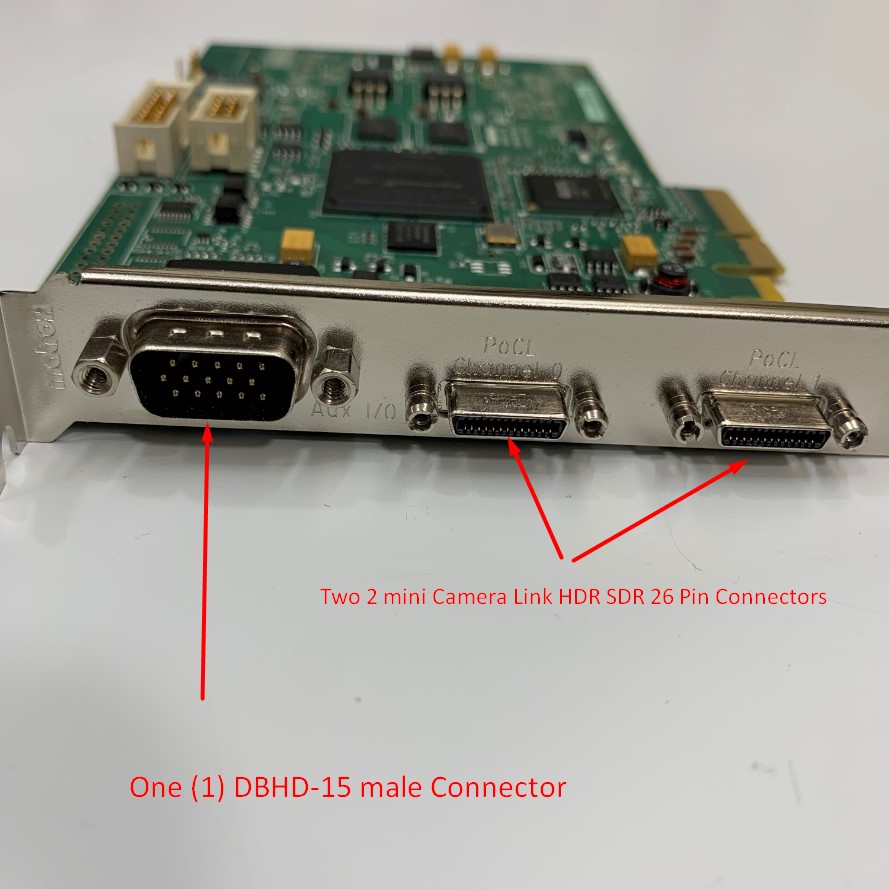

SDR 26 Pin Male Connector with Locking Screws Camera industrial and Matrox Camera Link Frame Grabber

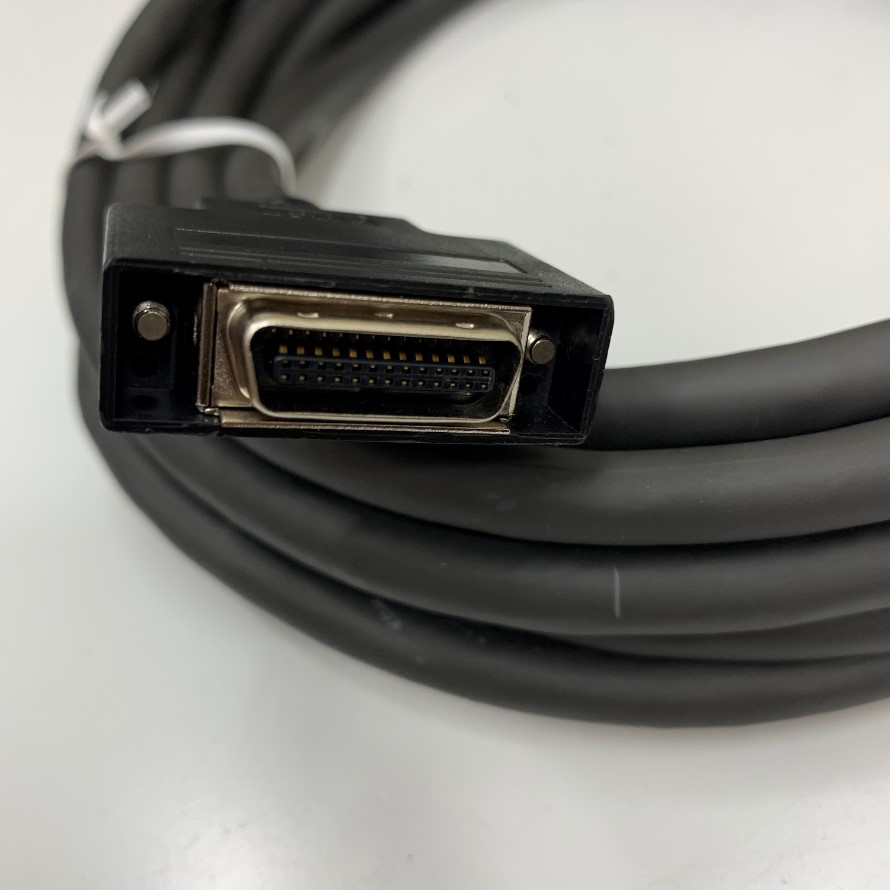

SCL26-MS-500 Cable Camera industrial

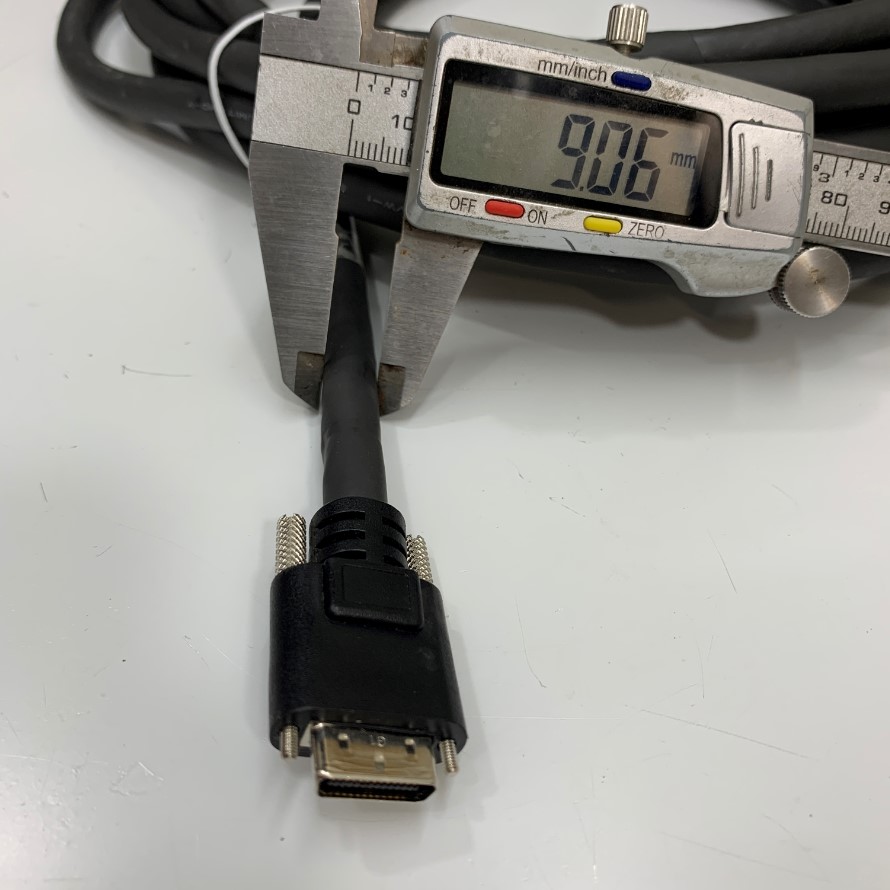

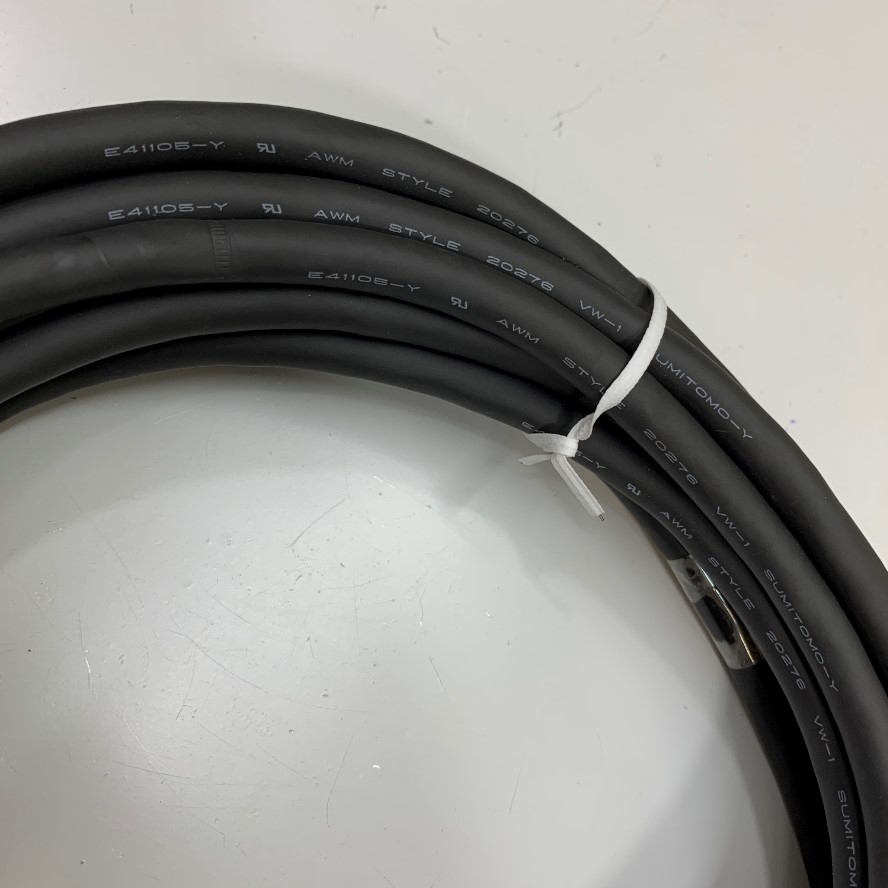

Cable Shielded E41105-Y AWM STYLE 20276 VW-1 Sumitomo-Y 26 Core OD 9.0mm

SCL26-MS-500 Cable Camera industrial - Compatible Camera List

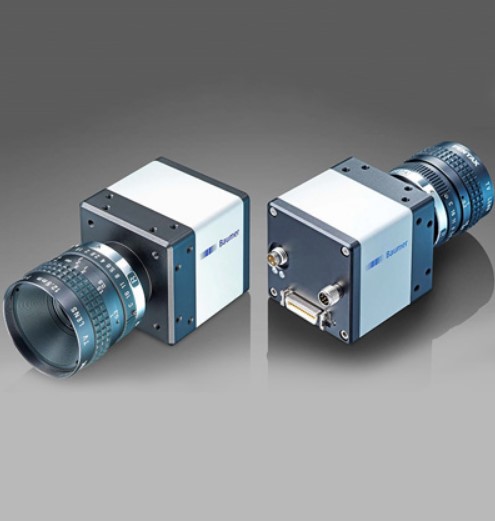

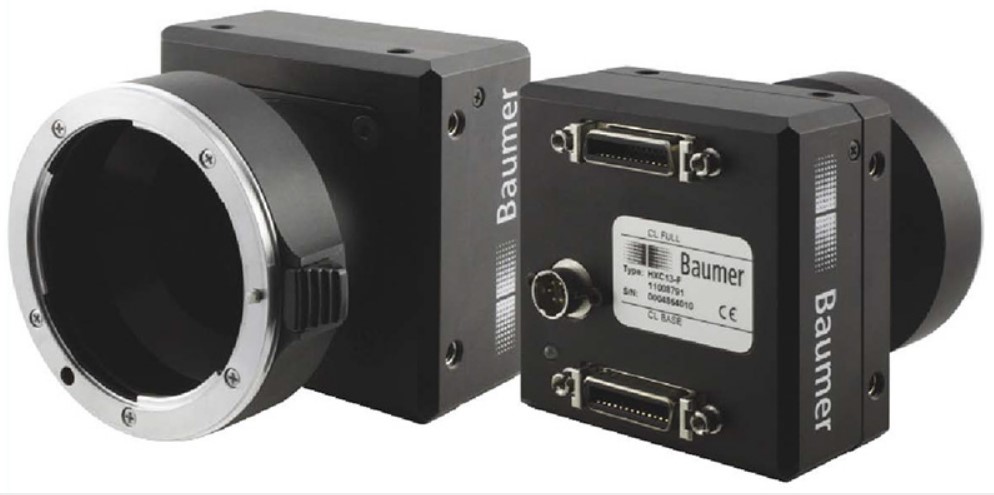

Baumer HXC13 Camera - Digital Monochrome High Speed, 1.3 Megapixel, CameraLink

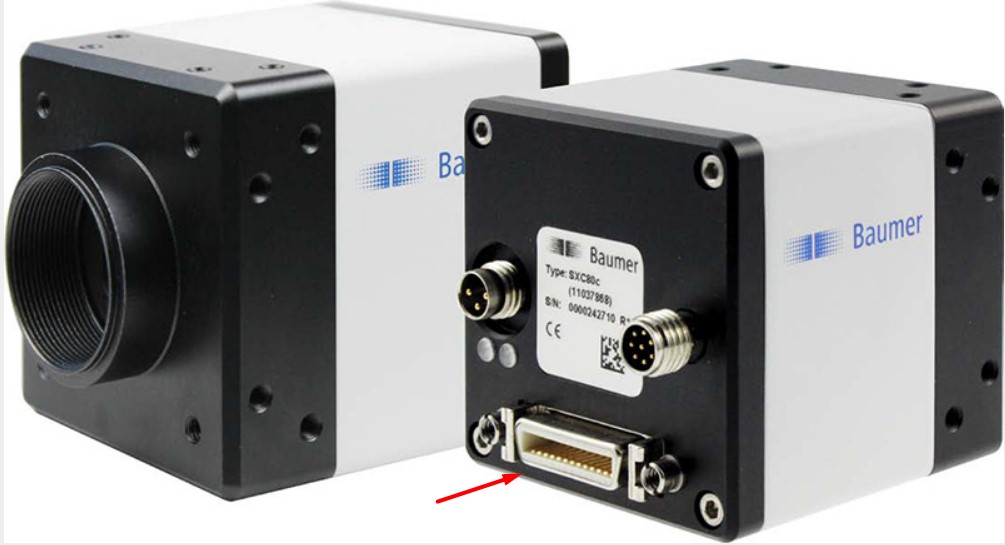

Baumer SXC20 Camera - Digital Monochrome Matrix, 2 Megapixel, CameraLink®

CIS VCC series cameras CIS VCC-12CL1M Camera, CameraLink SEIWA Optical

JAI PMCL series, CL series Apex Series AP-3200T-PMCL Camera

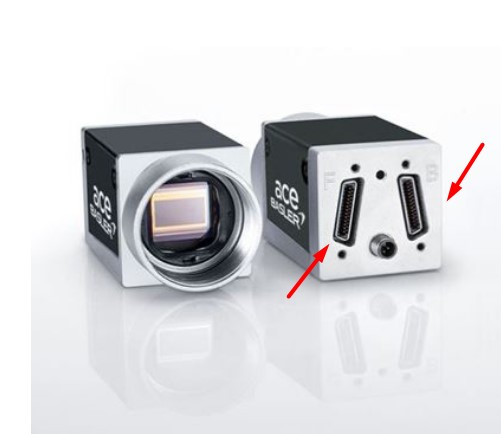

Basler Camera ace Camera Link acA2040-180kc

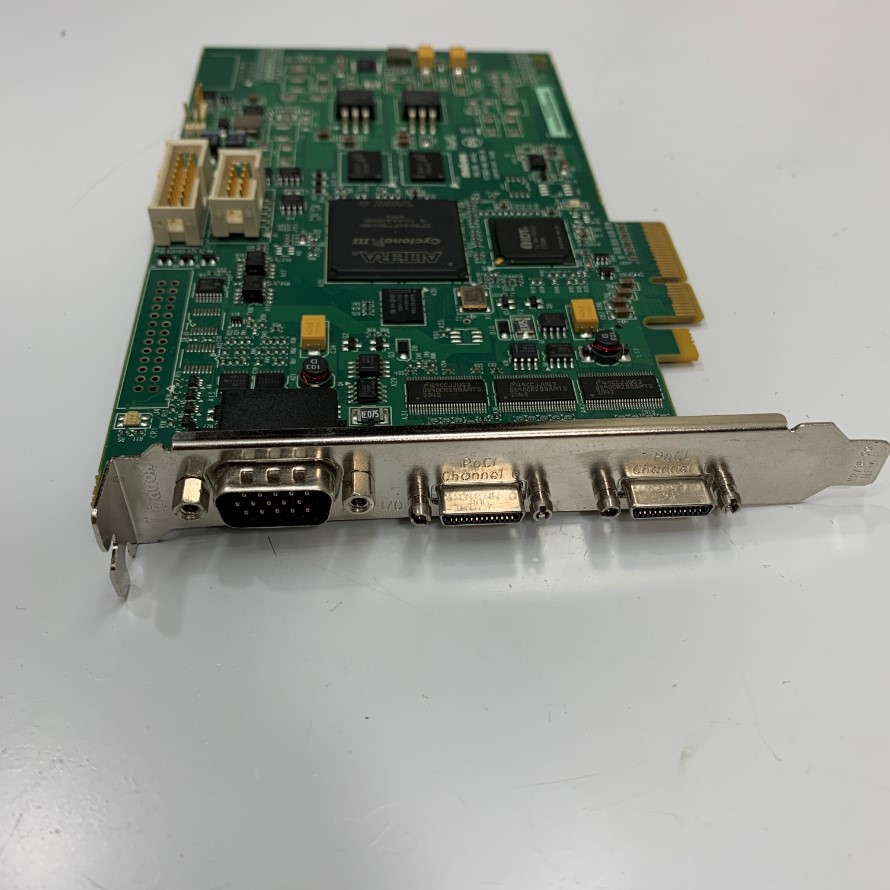

Card PCIe x4 Matrox SOL2MEVCLF Solios EV-CL Y7367-00 REV.B Camera Link Frame Grabber For Industrial Camera

Card Camera Link PCIe x4 Matrox Solios EV-CL Y7367-00 REV.B SOL2MEVCLB For Camera Link Frame Grabber Card Industrial Camera

Product Details
The Camera Link MDR to SDR/HDR cable has a larger MDR male connector and a smaller SDR/HDR male connector. MDR stands for Mini D Ribbon, which many frame grabbers interface with. SDR stands for Shrunk Delta Ribbon, most slim industrial cameras have this smaller interface.
Specification:
Connectors:

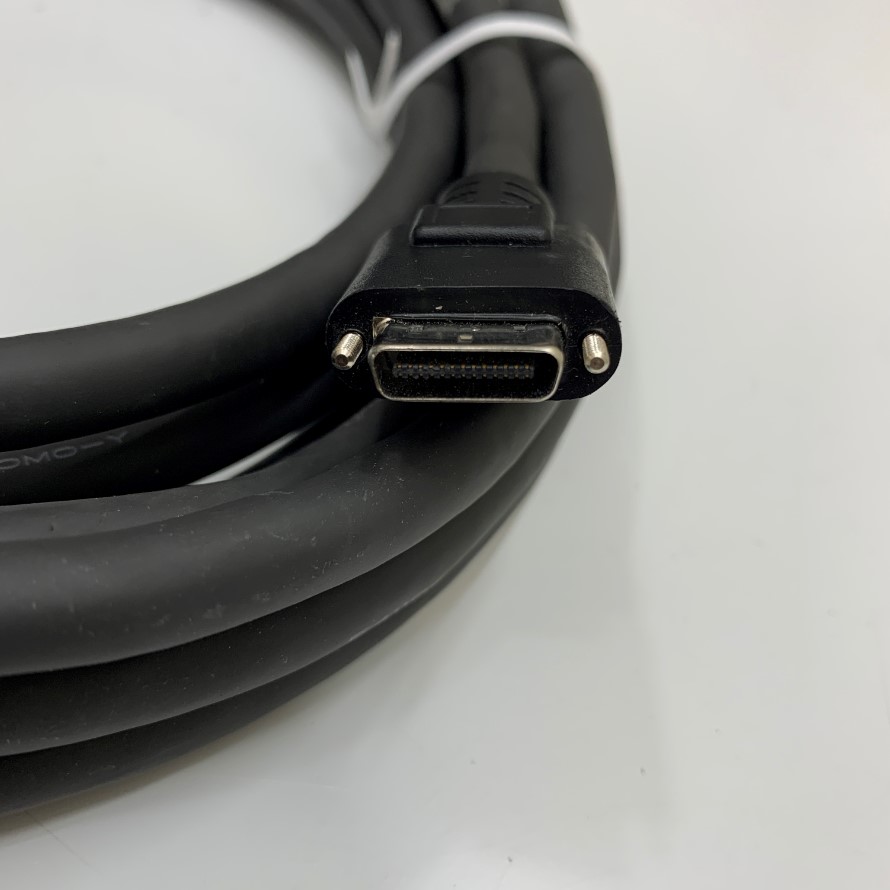

1 x MDR 26 Pin Connector Male Plug with screws

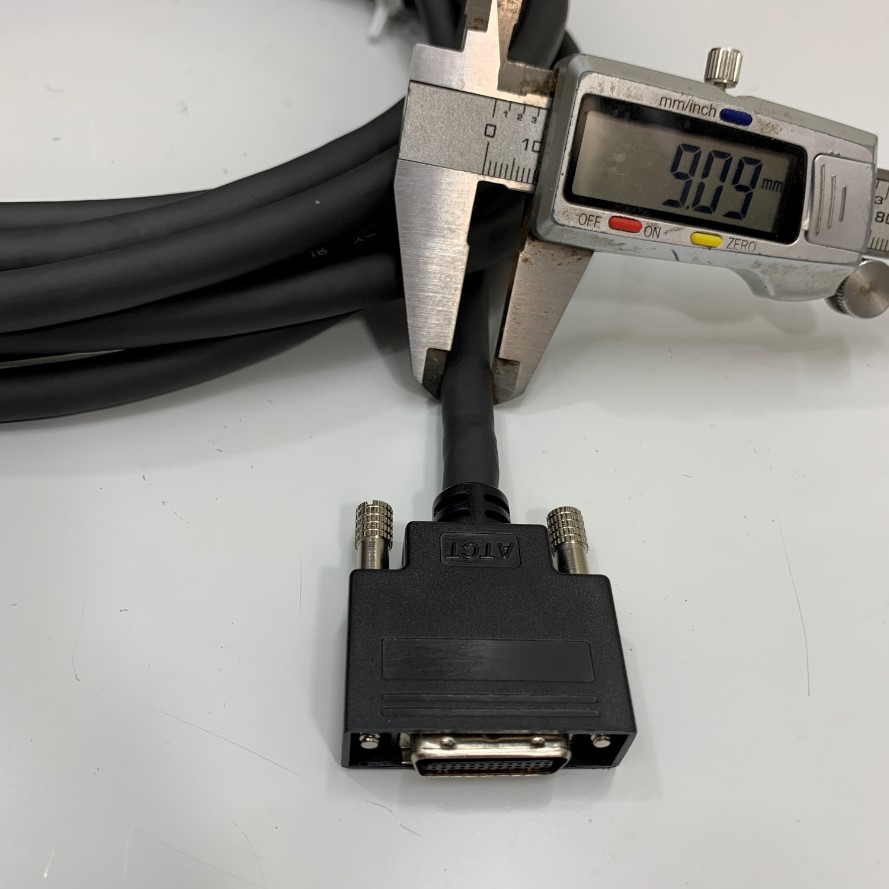

1 x SDR 26 Pin Connector Male Plug with screws
Camera Link 1.2 specification
Supports Power over Camera Link (PoCL)
Voltage: 12V
Cable gauge: 28 AWG Data line
Cable diameter: 9.0mm
AWG: (28AWG*1P+AM)*11PCS+24AWG*2C+2D.
Data transfer rate up to: Base Configuration 2.04 Gb/s
Medium Configuration 4.08 Gb/s
Full Configuration 5.44 Gb/s
Colour: Black
PoCL: Yes
Length: 5M
Cáp SCL26-MS-500 Dài 5M 17ft Camera Link 26 Pin MDR to SDR Cable with Locking Screws For Camera industrial Basler PoCL SDR/MDR Data Cable Sumitomo E41105-Y

Compatible Camera List

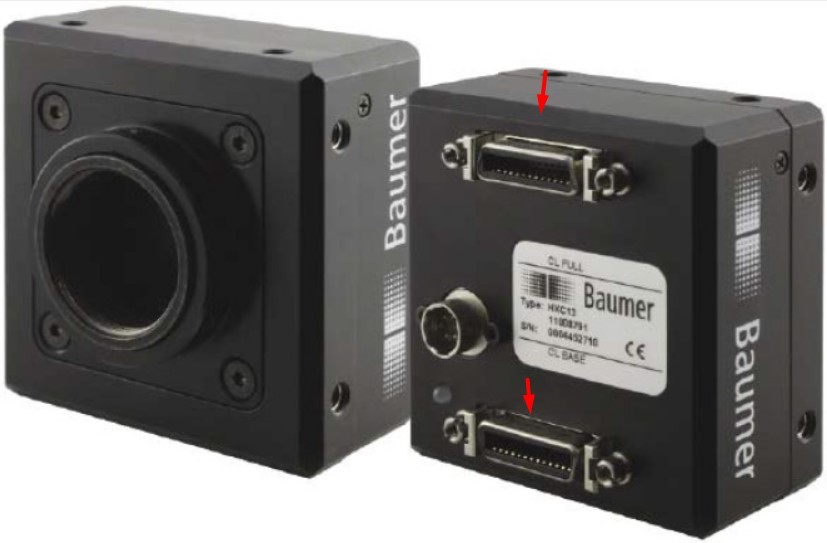

Baume HXC series, SXC series. For example: HXC13, SXC20.
CIS VCC series cameras. For example: CIS VCC-12CL1M camera.

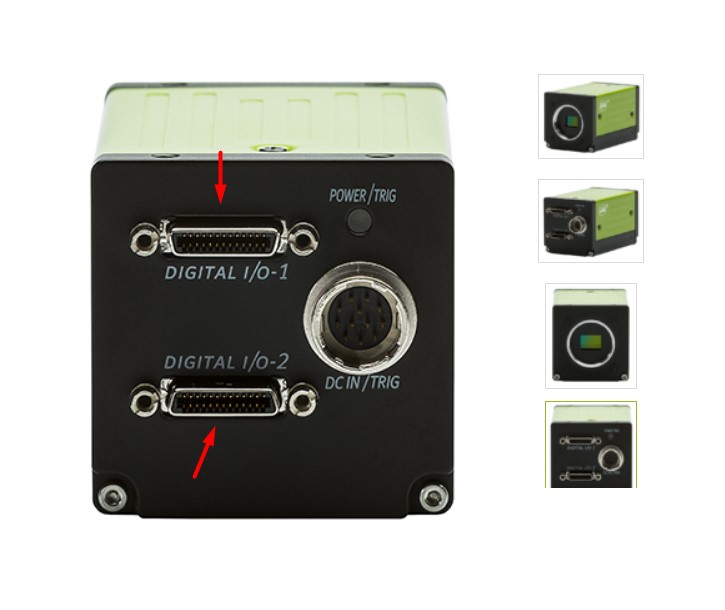

JAI PMCL series, CL series, such as AP-3200T-PMCL.

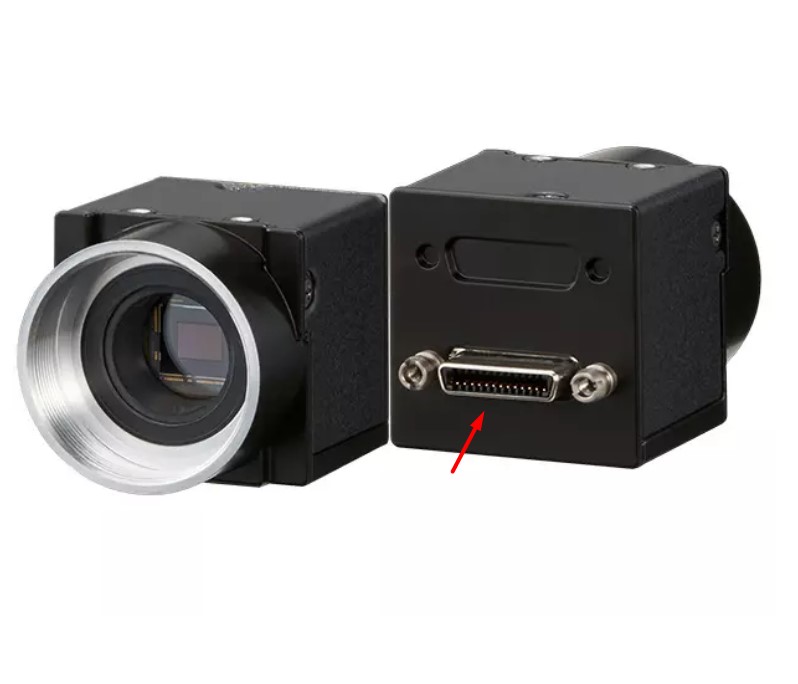

Sony XCL series cameras, such as the XCL-U1000.
ILLUNIS CMV series cameras, such as the CMV50C-CL.
Allied Vision Goldeye CL series, such as CL-008 Cool TEC1.
FLIR TAU2 camera link card.
FLIR Boson Camera Link Accessory Kit (421-0063-00).
Imperx NEW Tiger Series, such as T2040.
Imperx Bobcat Camera Link series, such as the B1040.
Opto-e COE HR AS series, such as COE50MCLIR-K.
Dalsa AViiVA series, ELiiXA+ series, Genie Nano-CL series, Linea Mono series, Piranha4 series, Piranha HS series.
JAI Apex series, Go series, Spark series, Sweep+ series, Wave series, such as SW-4000TL-PMCL. The model number ends with PMCL or CL.
Basler ace classic series area scanning cameras, such as the acA2040-180kc.
Basler beat series area scanning cameras, such as the beA4000-62kc.
Basler racer series line scan cameras, such as the raL4096-80km.
