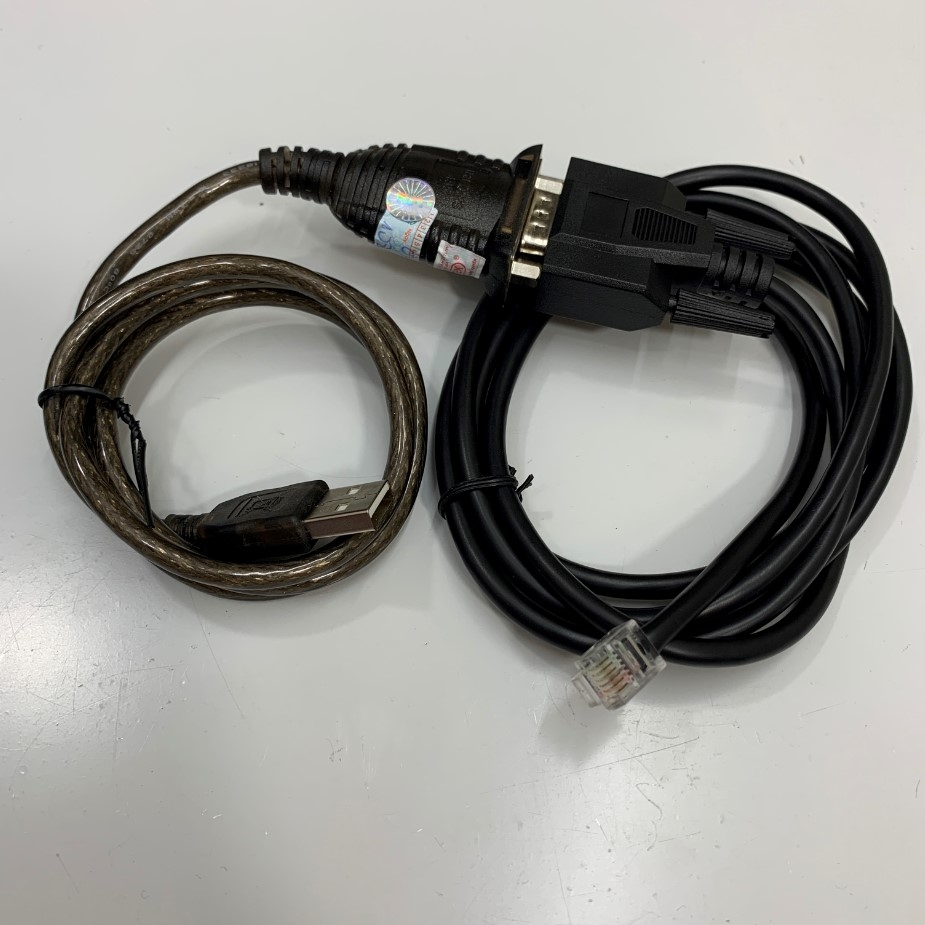

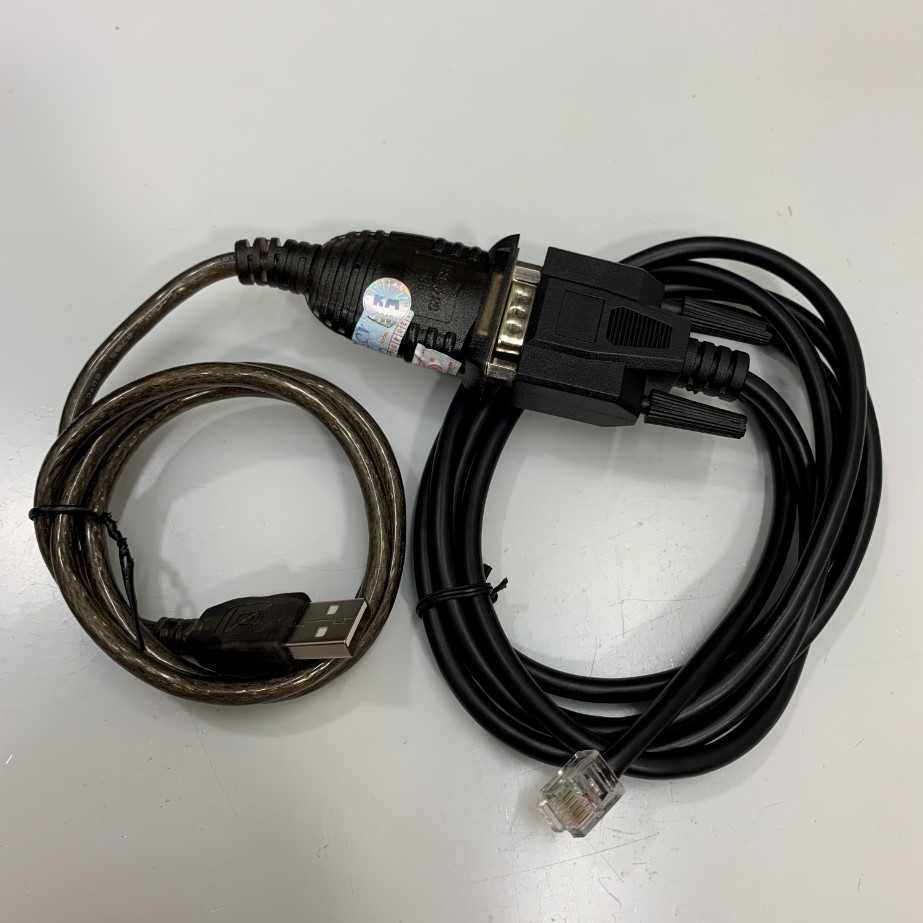

Cáp Lập Trình 1004010064 10Ft Dài 3M USB to RS485 Converter + RJ12 to DB9 Female For CoolDriver EtherCAT RC3 RC6 X10 Port Special

Mã SP: 8430

Thương hiệu: KTT Cable Servo Drive/PLC

Loại sản phẩm: Cable RJ12 to DB9 Female

Đánh giá

:

Giá

:

650.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

‬ Mr Đức: ‭‭‭034.694.3558‬
: vuvietduc8586

Mr Khanh: 091.301.5851
:khanh81b

Mr Khoa: ‭‭‭098.131.9702

‬ Mr Lam: ‭085.514.0226

Mr Khôi: ‭‭‭037.308.1800

RS485 communication debugging cable 1003020059 Port X10

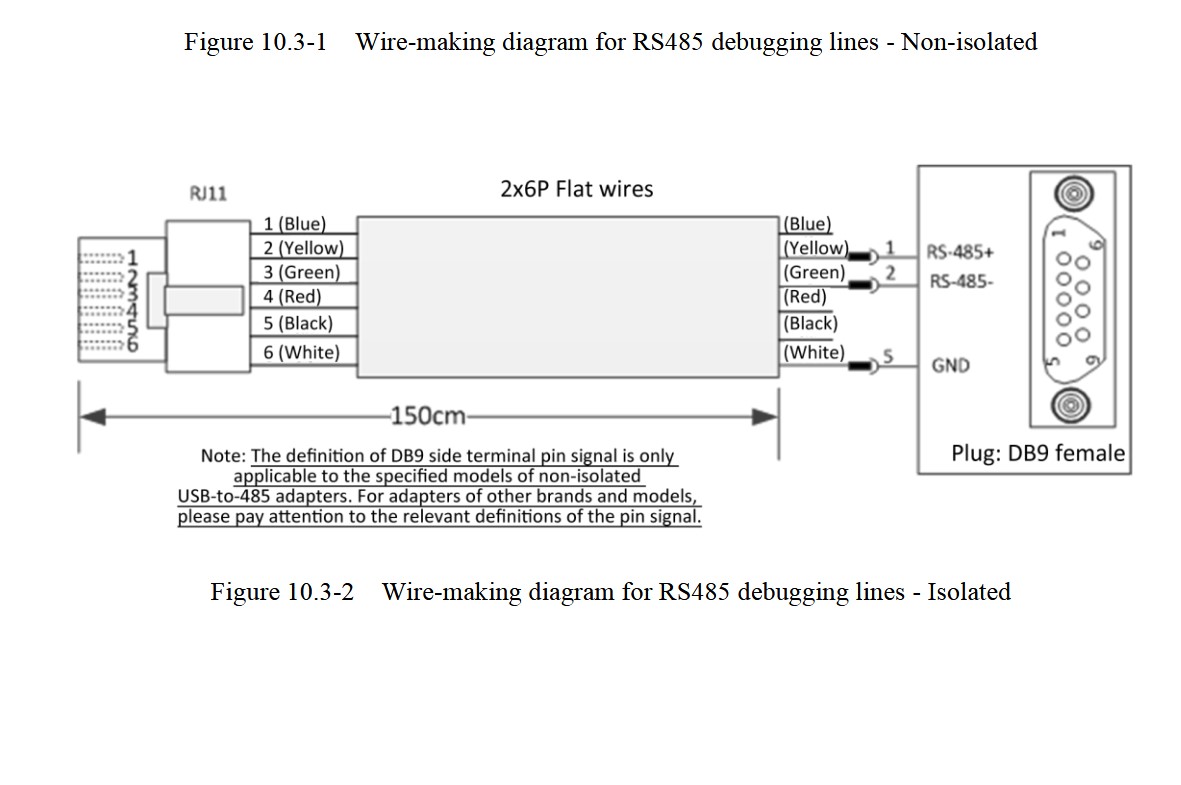

Wire-making diagram for RS485 debugging lines

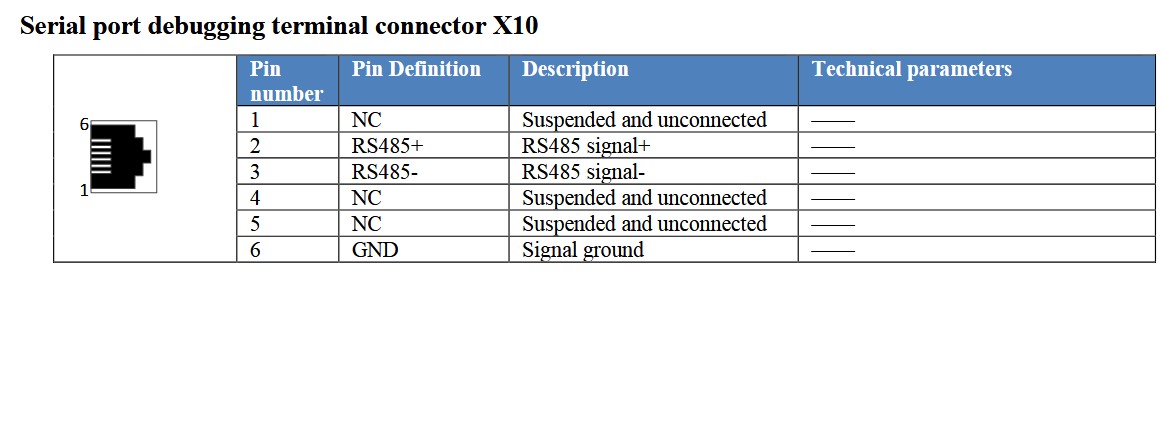

Serial port debugging terminal connector X10

CoolDrive RC6 Series Servo Drive

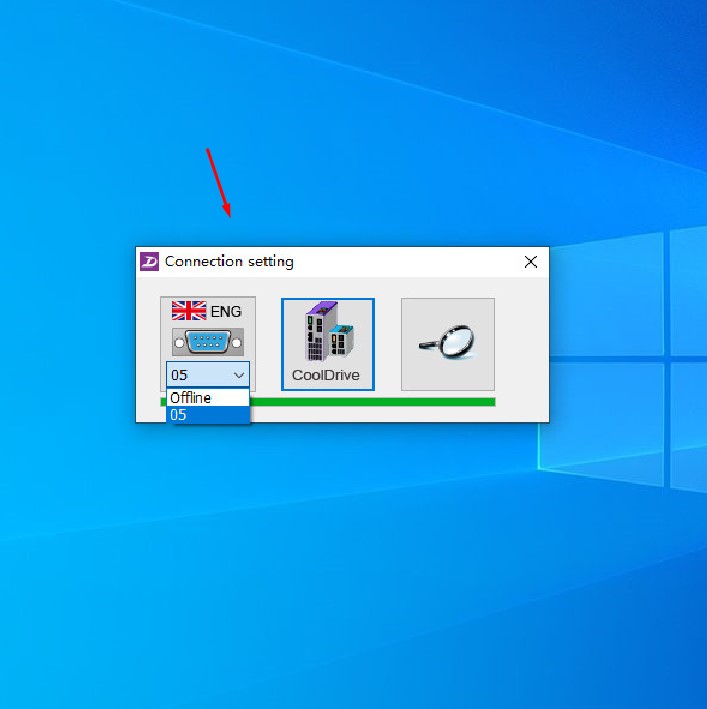

Connection Setting CoolDrive

Specifications
Brand: ViệtNam/Thientruongpc

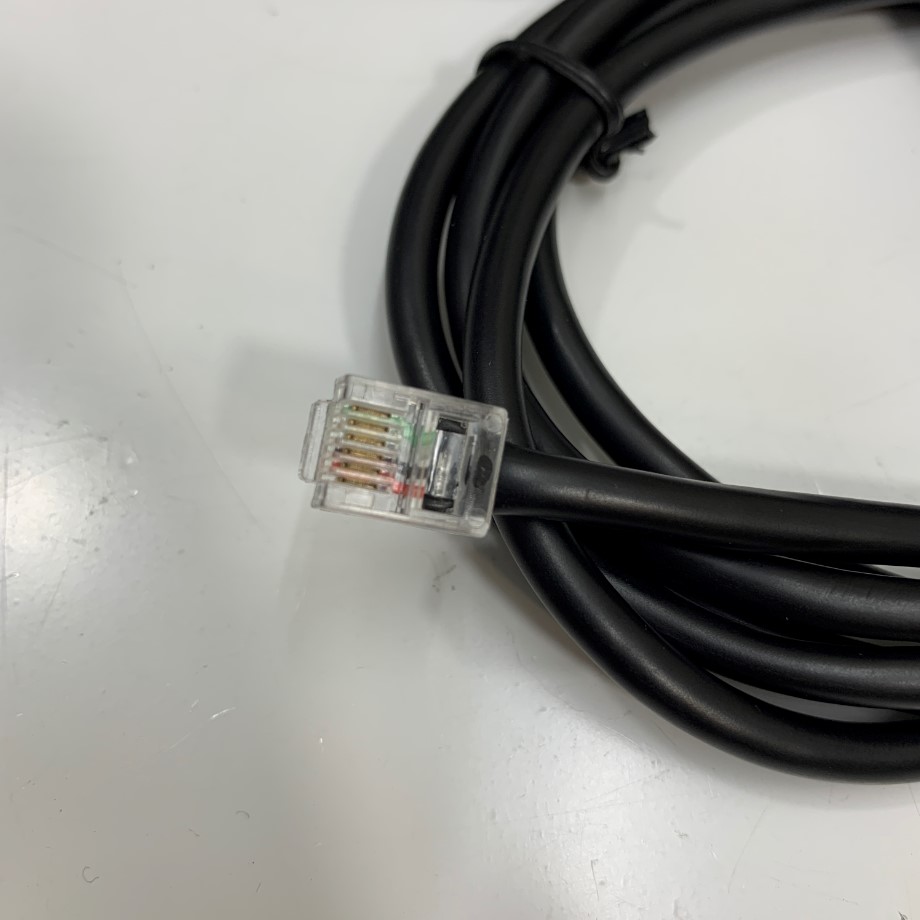

Connector CoolDrive RC Series Servo Drive X10 Port 1: RJ12 6P6C Male
Connector Computer 2: DB9 Female
Cable Type: RS485 Communication interfaces Data Transfer Cable
Connectors: RJ12 to DB9 Female
Wire Gauge (AWG): 28 AWG
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 4.1mm
Shielding: Yes
Length : 1.8M
Color: Black
Cáp Lập Trình RS485 Communication Debugging Cable 1003020059 6Ft Dài 1.8M RJ12 to DB9 Female For CoolDrive RC Series Servo Drive X10 Port Special Connection Setting Computer
Cáp Lập Trình 1004010064 10Ft Dài 3M USB to RS485 Converter + RJ12 to DB9 Female For CoolDriver EtherCAT RC3 RC6 X10 Port Special

Thiên Trường nhận cung cấp cáp theo độ dài khách hàng yêu cầu 1.5M, 3M...100M, khách hàng chỉ cần cung cấp đúng hãng, Model của PLC/HMI Port kết nối.
Chúng tôi có thể sẵn sàng đáp ứng nhu cầu của bạn với việc vận chuyển hàng luôn trong ngày khi nhận được đơn đặt hàng.
