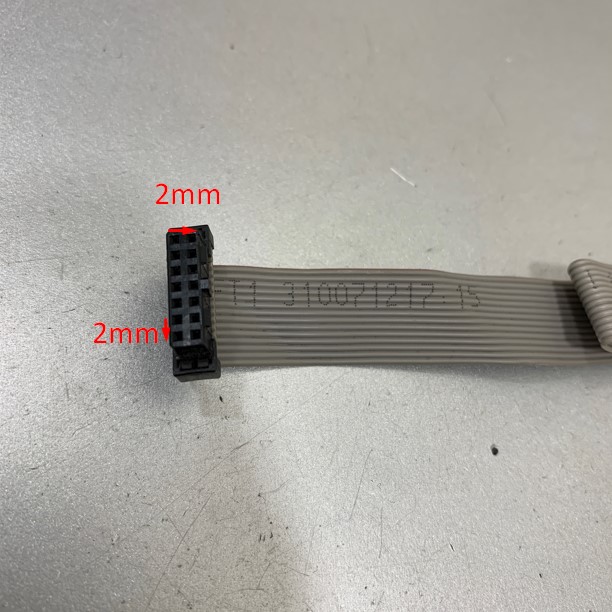

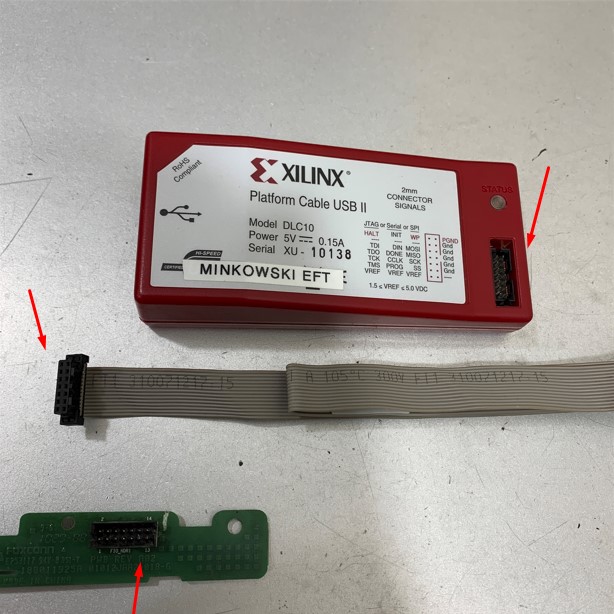

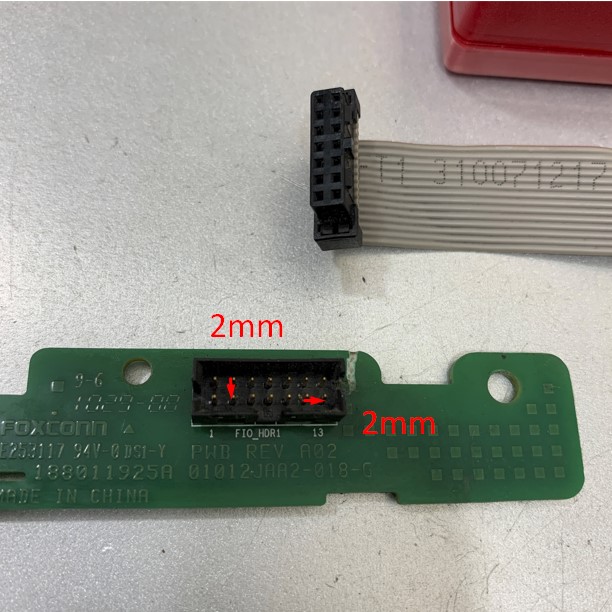

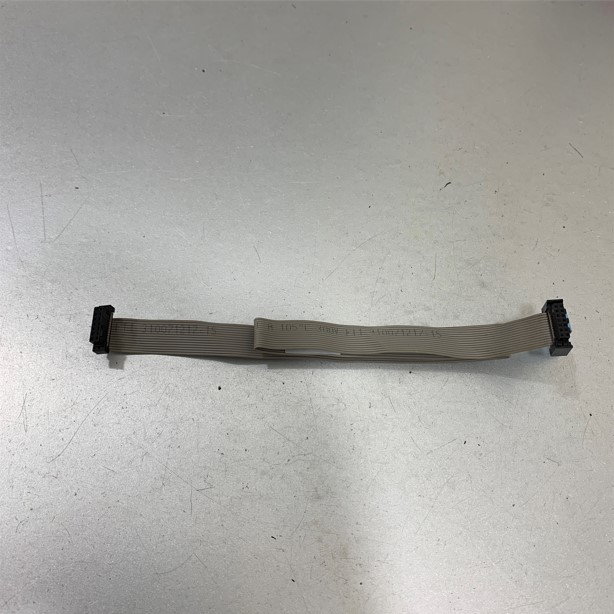

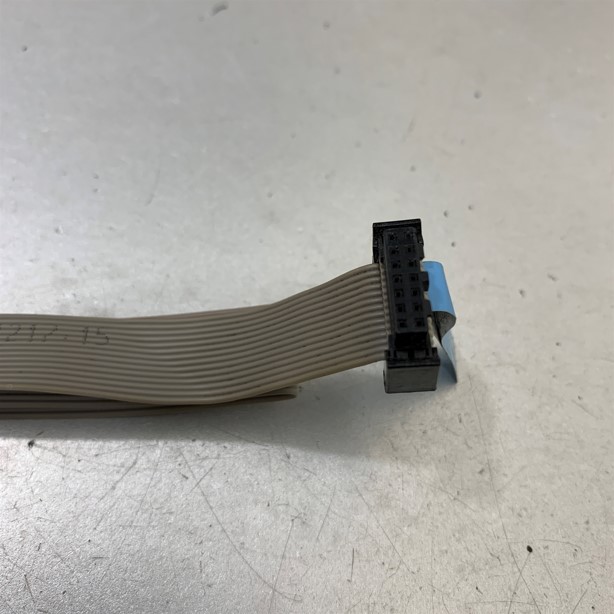

Cáp Kết Nối IDC 14 Pin Flat Ribbon Cable Female to Female 2.0mm With 2 Connectors 40Cm For Xilinx DLC10 Platform Cable USB II Module With CA2440 Evaluation Board DC590 DC2026 DC2086

Features
Download speed to 5 Megabits per second (Mb/s) Over eight times faster than Parallel Cable III using Xilinx ISE® iMPACT download software Embedded Development Kit (EDK) compatible ChipScopeTM Pro Analyzer compatible In-system configures the following Xilinx devices:

Automatically senses and adapts to correct I/O voltage Interfaces to devices operating at 5V (TTL), 3.3V (LVTTL), 2.5V, 1.8V, and 1.5V In-system programs serial-access flash PROMs via the serial peripheral interface (SPI) Supports IEEE 1149.1 (JTAG), Xilinx slave-serial mode, and serial peripheral interface (SPI) J-Drive IEEE 1532 Programming Engine compatible Includes high-performance ribbon cable Compliant with IEEE 1284 Level 2 Electrical Specification Externally powered using keyboard/mouse splitter cable or AC power brick Compatible with ECP-compliant I/O controllers for highspeed, bidirectional communication Intended for development not recommended for production programming

Virtex® series FPGAs Spartan® series FPGAs XC9500/XC9500XL/XC9500XV CPLDs CoolRunnerTM (XPLA3)/CoolRunner-II CPLDs XC18V00 ISP PROMs XC4000 series FPGAs Platform Flash XCF00S/XCF00P/XL PROMs

The Xilinx Parallel Cable IV (PC4) (Figure is a high-speed download cable that configures or programs all Xilinx FPGA, CPLD, and ISP PROM devices. The cable takes advantage of the IEEE 1284 ECP protocol and Xilinx iMPACT software to increase download speeds over eight times faster than existing solutions. The cable automatically senses and adapts to target I/O voltages and is able to accommodate a wide range of I/O standards from PC4 is designed for use in a desktop environment. Note: Xilinx also offers the Platform Cable USB II with a USB 2.0

interface to the host PC and similar capabilities as the Parallel Cable IV. See DS593, Platform Cable USB II, for details.

The cable is externally powered from either a power brick or by interfacing to a standard PC mouse or keyboard connection. A bi-color status LED indicates the presence of operating and target reference voltages.

PC4 supports the widely used industry-standard IEEE 1149.1 boundary-scan (JTAG) specification, the Xilinx slave-serial mode for Xilinx FPGA devices, and serial peripheral interface for serial-access flash PROM programming. PC4 supports indirect programming of select flash memories including the Platform Flash XL configuration and storage device (via an FPGA JTAG port). The cable interfaces to target systems using a ribbon cable that features integral alternating ground leads to reduce crosstalk and improve signal integrity.

© 2001­2008 Xilinx, Inc. All rights reserved. XILINX, the Xilinx logo, Virtex, Spartan, ISE and other designated brands included herein are trademarks of Xilinx in the United States and other countries. All other trademarks are the property of their respective owners.

Xilinx Parallel Cable IV error-free connection. A very small footprint, keyed mating connector is all that is required on the target system. Refer to Figure 4 for the appropriate connector pin assignments and sample vendor part numbers. Figure 5 shows the POD and its dimensions. The Parallel Cable IV can also interface to target systems using flying lead wires. However, these are not included with PC4. The flying lead wires and additional ribbon cables can be purchased separately from the Xilinx Online Store.

The PC4 connects to any PC using Microsoft® Windows® 2000, Windows XP, or Linux(1) operating systems through the built-in, standard IEEE 1284 DB25 parallel (printer) port connector.(2) To fully utilize the higher speeds of this cable, the host PC must have a parallel port that is enabled to support extended capability port (ECP) mode.(3) If ECP mode is not enabled, the PC4 defaults to compatibility mode and does not run at the optimum speeds listed.

1. 2. See the System Requirements section in the ISE software manual for more specific operating system requirements. Xilinx makes no representations about compatibility with thirdparty IEEE 1284 add-on adapters and does not support the addon adapters. Refer to host PC BIOS to see if ECP mode is enabled.

An insulation displacement connector (IDC) ribbon cable is supplied and recommended for connection to target systems. See Figure 2 and Figure 3. This cable incorporates multiple signal-ground pairs and facilitates

Notes: 1. Ribbon Cable - 14 conductor, 1.0 mm centers Round Conductor Flat Cable, x 36) stranded copper conductors; gray PVC with pin #1 edge marked. 2. mm Ribbon, Female Polarized Connectors - IDC connection to ribbon, contacts are beryllium copper plated with 30 micro inches gold plating over 50 micro inches nickel, connectors mate 0.5 mm square posts 2 mm centers.

Slave Serial JTAG INIT NC DIN DONE CCLK PROG VREF NC TDI TDO TCK TMS VREF 12 10
Notes: 1. Pin 1 is not a true digital ground. It must be connected to digital ground at the target system. See pin assignment descriptions (Table 2) for more information. 2. Connecter is (14 position) 2 mm surface-mount version for ribbon cable, Molex part no. 87832-1420, also available in through-hole mounting.

Figure 4: Target Interface Connector Signal Assignments
CONNECTOR SIGNALS 0.1 inch 2 mm JTAG or Serial Gnd Vref JTAG or Serial Gnd TCK --TDO TDI TMS CCLK INIT DONE DIN PROG

--INIT Vtst TDI DIN TDO DONE TCK CCLK TMS PROG Vref
Figure 5: Diagram of POD with Dimensions Table 1 provides some third-party sources for mating connectors that are compatible with the Parallel Cable IV ribbon cable. Table 1: Mating Connectors for 2-mm Pitch, 14-Conductor Ribbon Cable

1. 2. Some manufacturer pin assignments may not conform to Xilinx pin assignments. Please refer to the manufacturer's data sheet for more information. Additional ribbon cables can be purchased separately from the Xilinx Online Store.
