Cáp Điều Khiển UPS OEM APC with PowerChute Smart Signaling Serial Cable BLACK 940-0024C Serial 9Pin Extension Male to Female RS232 DB9 9 Pin M-F Length 1.8M

Mã SP: 1447

Thương hiệu: KTT

Loại sản phẩm: Cáp Điều Khiển UPS

Đánh giá

:

Giá

:

200.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/KTT
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

‬ Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
: vuvietduc8586

‬ Mr Lam: ‭085.514.0226

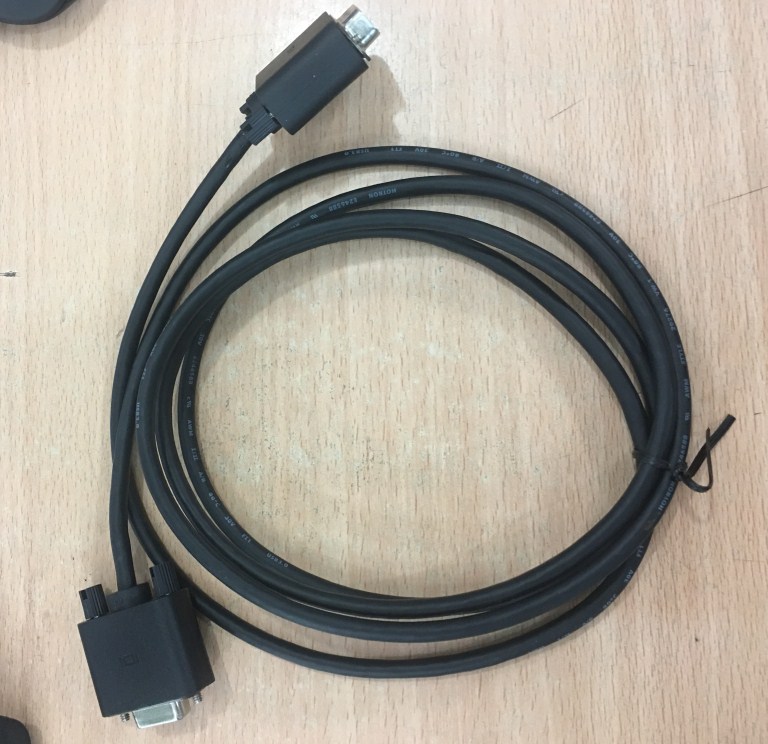

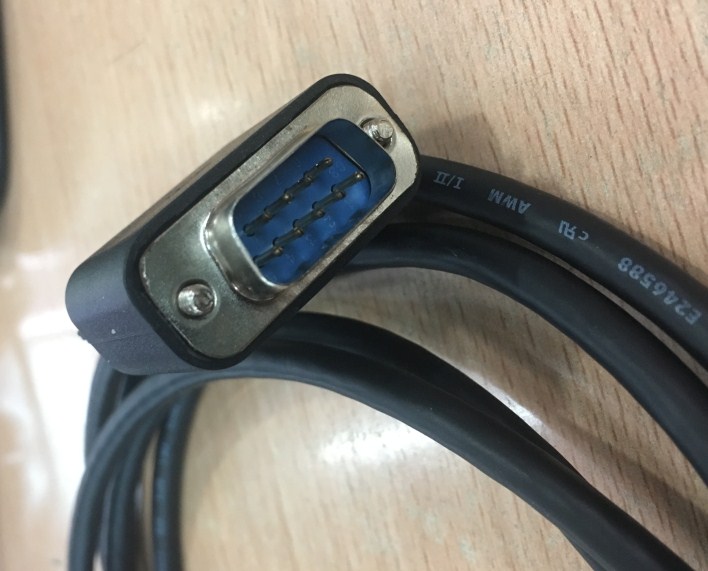

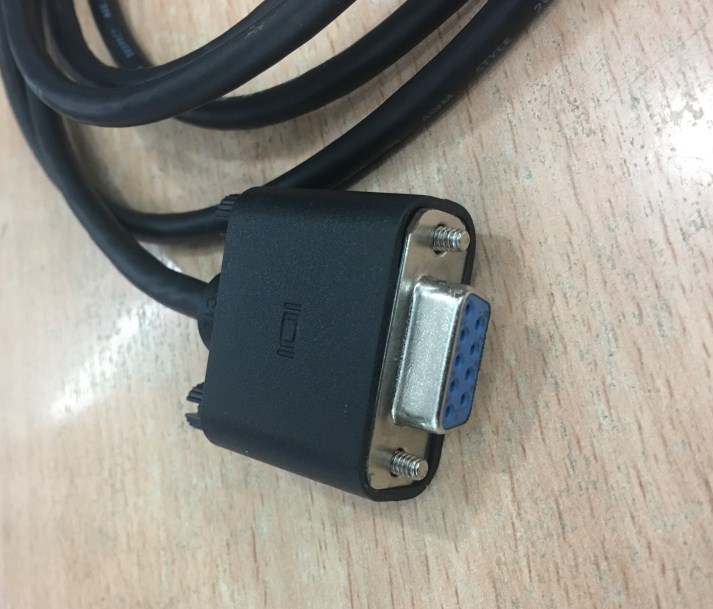

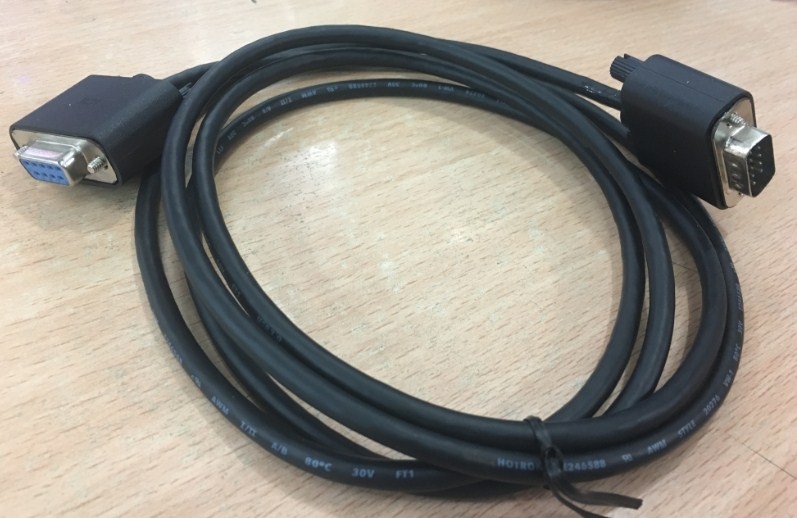

Cáp điều khiển UPS OEM APC with PowerChute Smart Signaling Serial Cable (BLACK) 940-0024C (Serial 9Pin Extension) Male to Female RS232 DB9 9 Pin M-F Length 1.8M

SKU  OEM  940-0024C

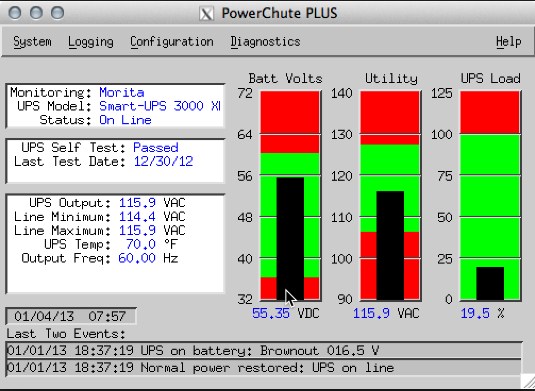

APC Part# 940-0024C, # 940-0024B, # 940-0024D or 940-1524(black cable). Compatible with most APC UPSs that have a DB9 serial port. Should work with APC PowerChute or Apcupsd(UPS Server for Linux)
Should be compatible with:

Back-UPS Pro    BP650, BP650S, BP650SC, BP420, BP420S, BP420SC, BP280S (also compatible with  940-0095B cable)
Smart-UPS 3G    SU420NET, SU620NET, SU700NET, SU1000NET, SU1400NET, SU2200NET, SU3000NET, SU2200XLNET, SU2200XLTNET, SU3000TNET, SU5000T, SU1400RMXL3U, SU2200RM3U, SU2200RMXL3U, SU2200RMXLNET, SU2200RMXLTNET, SU3000RM3U, SU3000RMNET, SU3000RMT3U, SU3000RMXL3U, SU5000, SU5000RMT5U
Smart-UPS 3.5G    SU700RM2U, SU1000RM2U, SU1400RM2U
Smart-UPS 3.6G(Serial)    SUA1000, SUA1500, SUA750XL, SUA1000XL
Smart-UPS 4.0G(Serial)    SUA2200, SUA2200RM2U, SUA3000, SUA3000RM2U, SUA3000RMT2U
Smart-UPS SC    SC420, SC620
Matrix    MX3000, MX5000, MX3000XR, MX5000XR

APC Part# 940-0024A, 940-0024B, 940-0024C, 940-0024D, 940-1524  cable scheme
According to APC forum, letter suffix is related to (change of?) manufacturer or revision, not wiring, and cables are electrically interchangable.

'Simple scheme' diagram further below looks correct for 940-0024 & A,B,C or D revisions and 940-1524 which is 15' long cable; and matches what viewed on a third-party site.

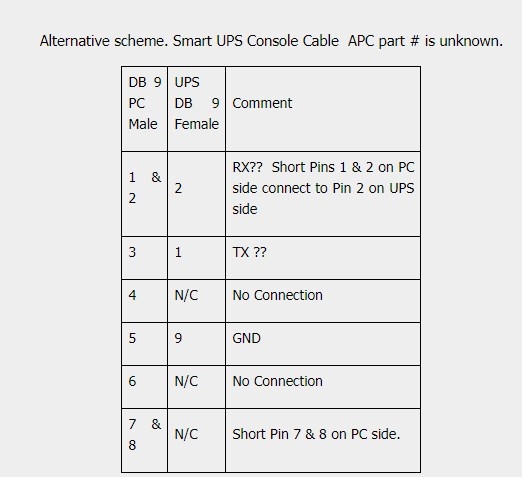

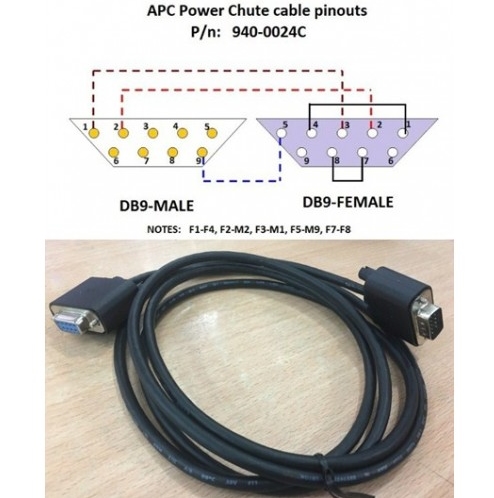

Simple scheme (APC 940-1524D cable)

UPS
Signal Name
DB-9 Male
(UPS end)
DB-9 Female
(PC end)
PC
Signal Name
TX / AC Fail 2 2 Rx, Received Data
RX / Shutdown 1 3 Tx, Transmitted Data
Common 9 5 GND

At the PC end: pins 1,4 (DCD, DTR) shorted; pins 7,8 (RTS, CTS) shorted.
DB-9 shells are also connected.



Connector(s)

Connector A

1 - DB-9 (9 pin, D-Sub) Female

Connector B

1 - DB-9 (9 pin, D-Sub) Male

Physical Characteristics

Cable Length

6 ft [1.8 m]

Color

Black

Product Length

6 ft [1.8 m]
