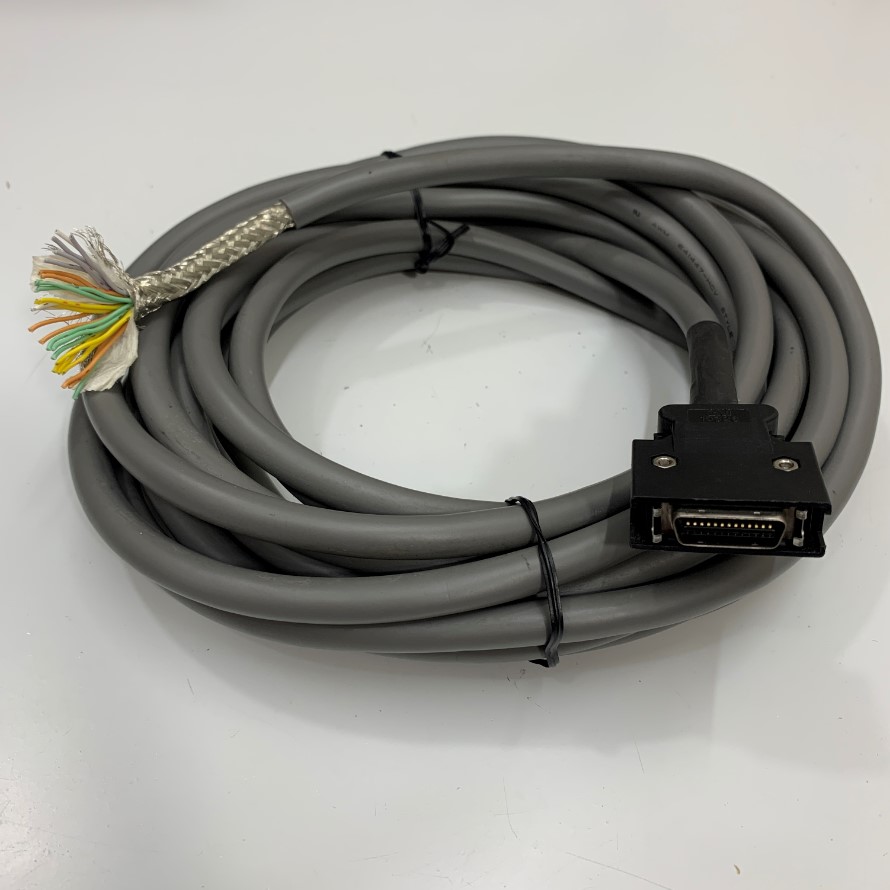

Cáp CSVR-S-015F 50Ft Dài 15M I/O Connection Cable MDR 26 Pin Male to 26 Core For Motor Drive Ezi-Servo II-Plus-R, Ezi-Servo II-Plus-E and TB-Plus Interface Board

Xuất xứ/Nguồn hãng: Việt Nam/Thiên TrườngPC- KTT
Brand: Thiên TrườngPC- KTT (hàng chất lượng cao theo tiêu chuẩn japan/Korea-Drive Servo Cable)
Model No. CSVR-S-015F
Product Details:
Input/Output signal CN1 MDR 26 Pin System Data Cable
Item: MDR 26 Pin Male to 26 Core Connector Breakout Board Cable
Connector 1: MDR 26 Pin Male I/O CONNECTOR CN1 (3M 10326-52F0-008 3M 10126-3000PE)
Connector 2: 26 Core I/O CONNECTOR TB-Plus Interface Board
Gender: MDR 26 Pin Male to 26 Core
Conductor Size AWG: 28 AWG
Voltage Rating: 300V
Cable Jacket Color: Grey
Cable Outer Diameter (OD): 9.5mm
Cable Type: Round Cable HITACHI 13PR 26 Core x 0.15mm² E41447-HCV STYLE 2464 I/II A/B 80℃ 300V FT1 LF OD 9.5mm 26x0.15SQ
Cable Length (ft.): 50 ~ 15M
Cáp CSVR-S-015F 50Ft Dài 15M I/O Connection Cable MDR 26 Pin Male to 26 Core For Motor Drive Ezi-Servo II-Plus-R, Ezi-Servo II-Plus-E and TB-Plus Interface Board
