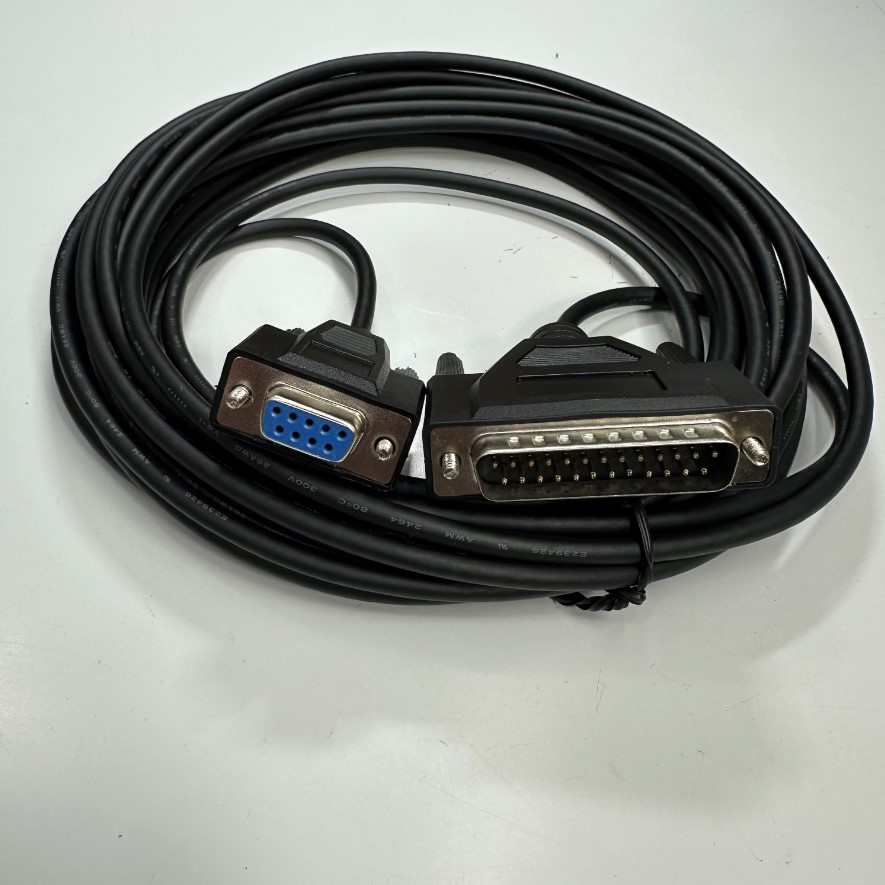

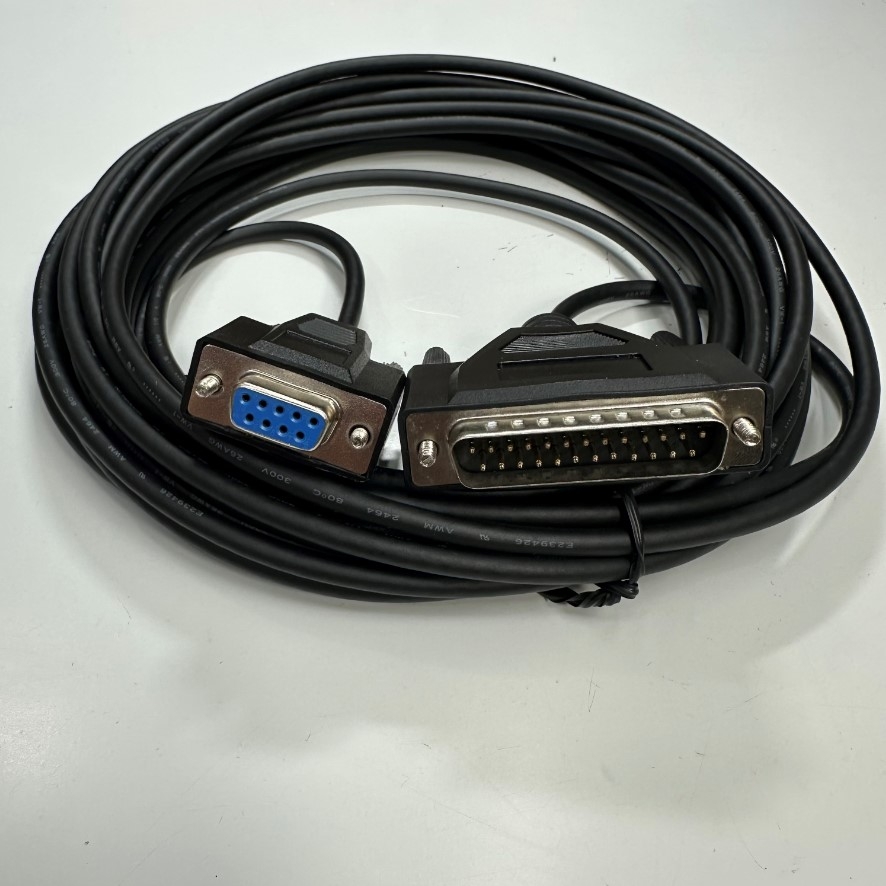

Cáp 7M 23.3ft DB25 Male to DB9 Female Shielded Cable RS-232C Communication For FANUC NC601A & CNC witch DNC Transfer/Computer Serial Data

Mã SP: 12616

Thương hiệu: KTT CNC Machine Cable

Loại sản phẩm: RS-232C Cable 25P-9P

Đánh giá

:

Giá

:

1.700.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Việt Nam/KTT CNC Machine Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

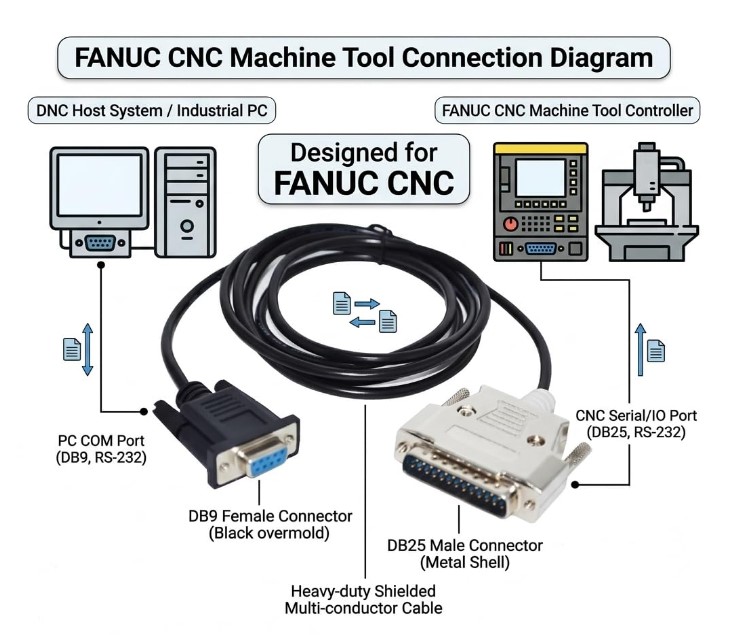

RS-232C Serial Communication DB9 Female to DB25 Male Cable For FANUC NC601A & CNC RS-232C Serial Switch to Machine Communication Data Cable

Shielded Cable E239426 AWM 20276 26AWG 80°C 300V OD 5.0mm Balck

Specifications
Brand: ViệtNam/Thientruongpc CNC Cable
Model number: CNC Cable With Software Fanuc 6/10/11/12/15 Series

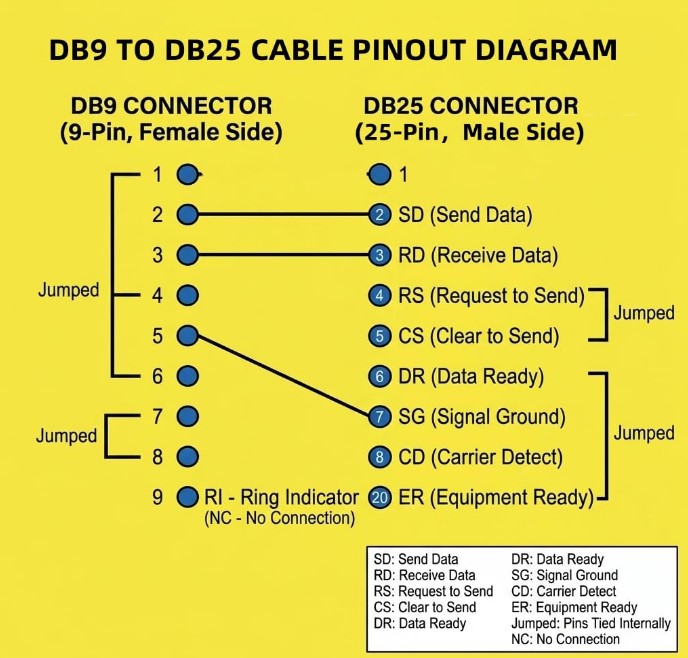

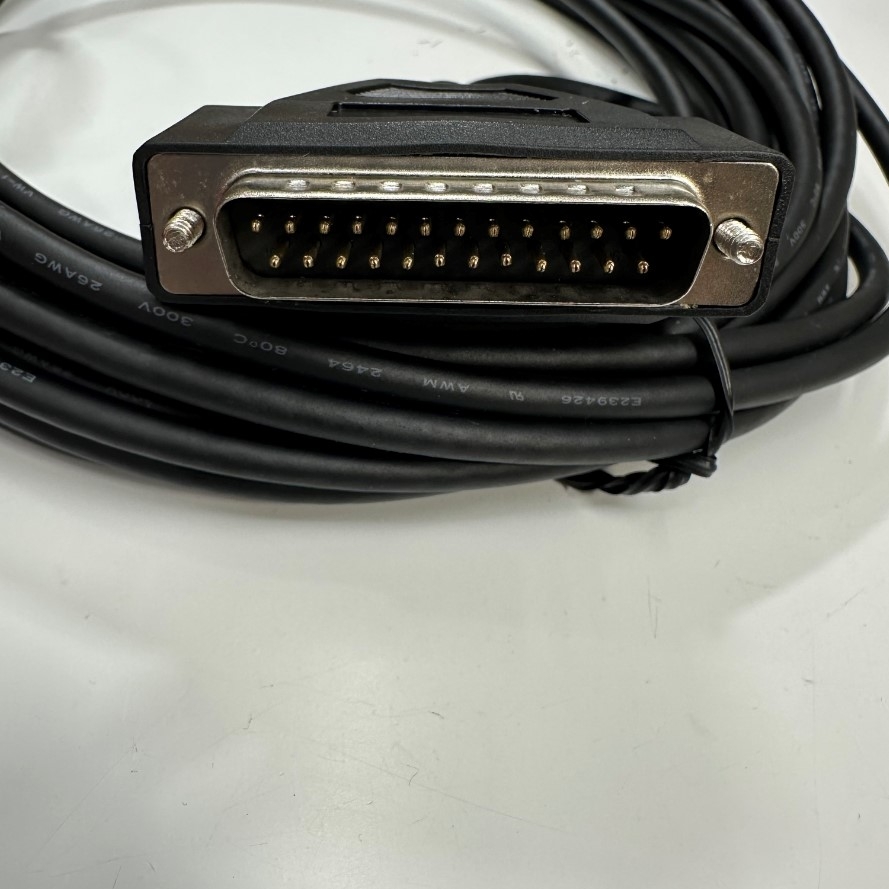

Connector Type 1: DB25 Male D-Sub Type Solder Connector (Fanuc DNC 6 10 11 12 15 Series)

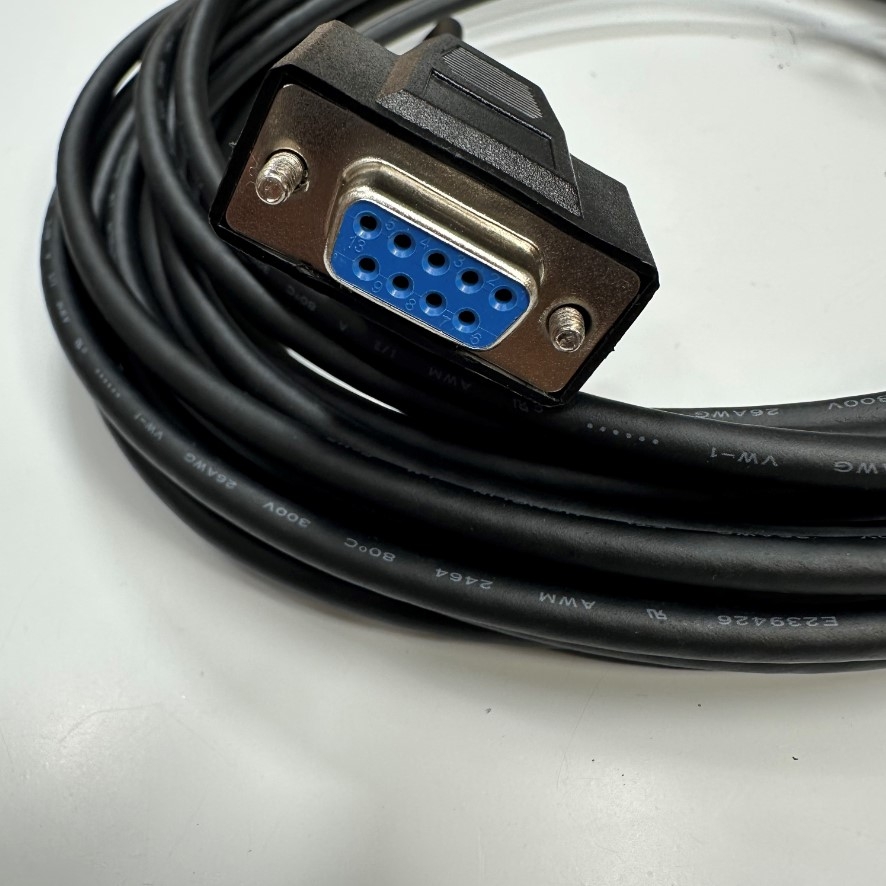

Connector Type 2: DB9 Female D-Sub Type Solder Connector (Computer)
Connector plating: Nickel Plated
Number of Conductors: 3 x 0.15mm²
Conductor Size AWG: 26AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Outer diameter: 5.0mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Cable Length: 7M ~ 23.3ft
Cáp 7M 23.3ft DB25 Male to DB9 Female Shielded Cable RS-232C Communication For FANUC NC601A & CNC witch DNC Transfer/Computer Serial Data
