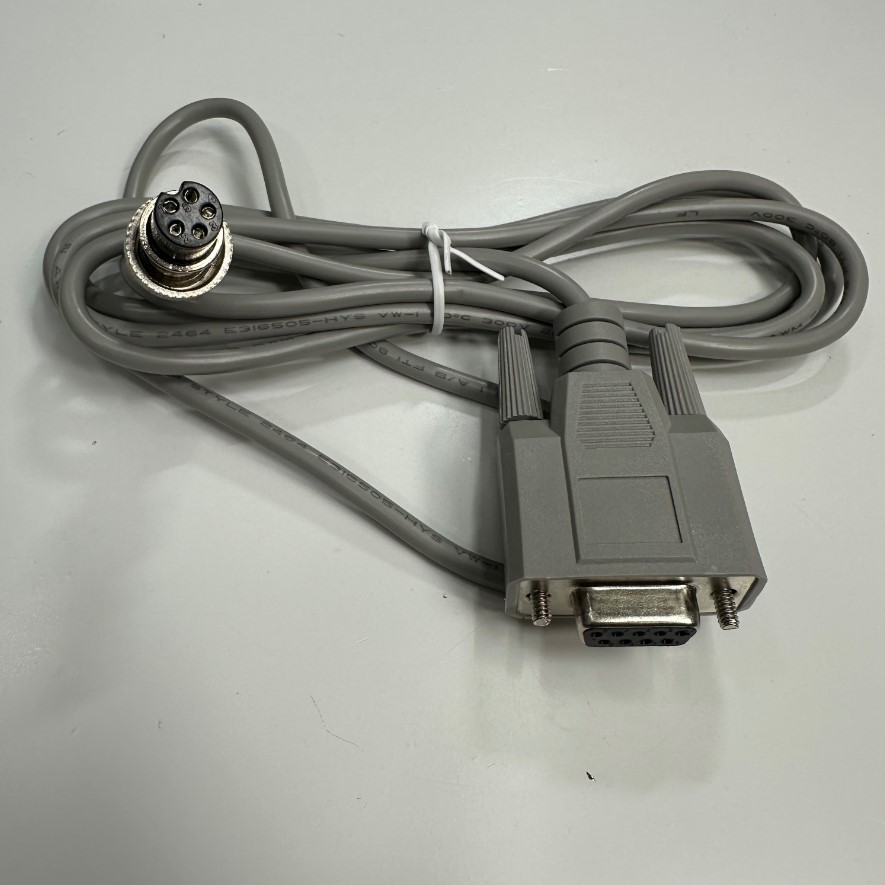

Cáp 3M 10ft RS232 Truyền Dữ Liệu Cân Đến Máy Tính Cable Connector GX12 5 Pin Female to DB9 Female For Weighing measuring indicator KELI ХK3118Т1 with Computer Data Communication Cable

Cáp truyền dữ liệu cân điện tử đến máy tính thông qua giao diện RS232
Weighing interface RS-232 Port Connector GX12 5 Pin Female to DB9 Female For Weighing measuring indicator ХК3118Т1 KELI Sensor

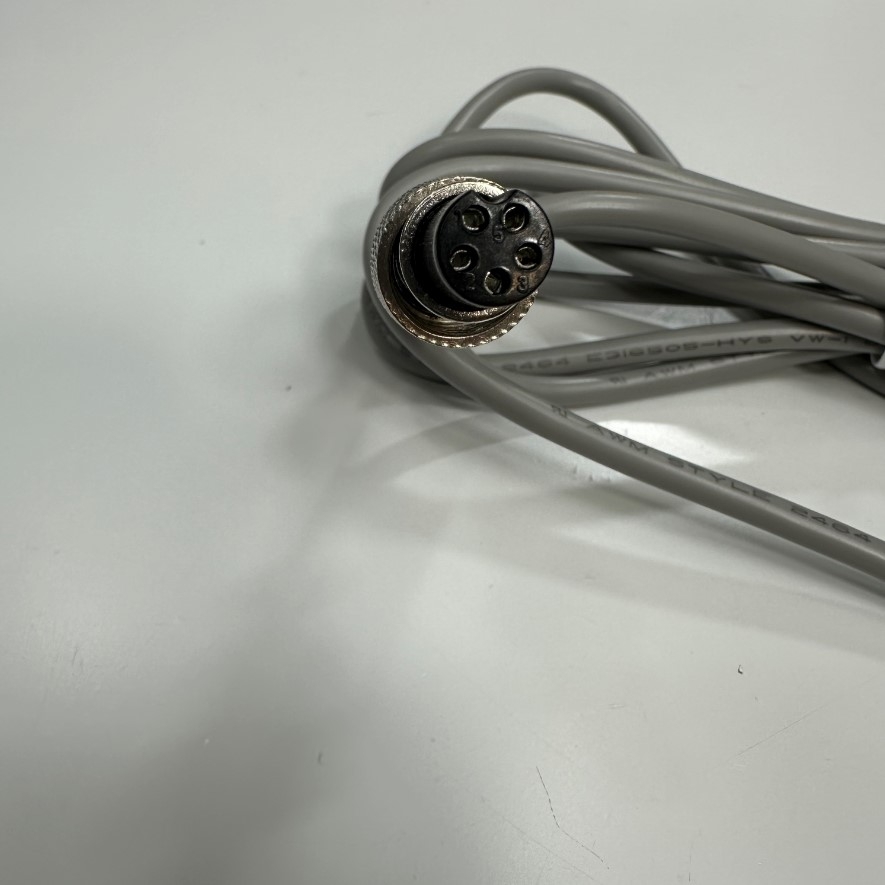

Connector GX12 5 Pin Female with Weighing Measuring Indicator ХK3118Т1 KELI Sensor

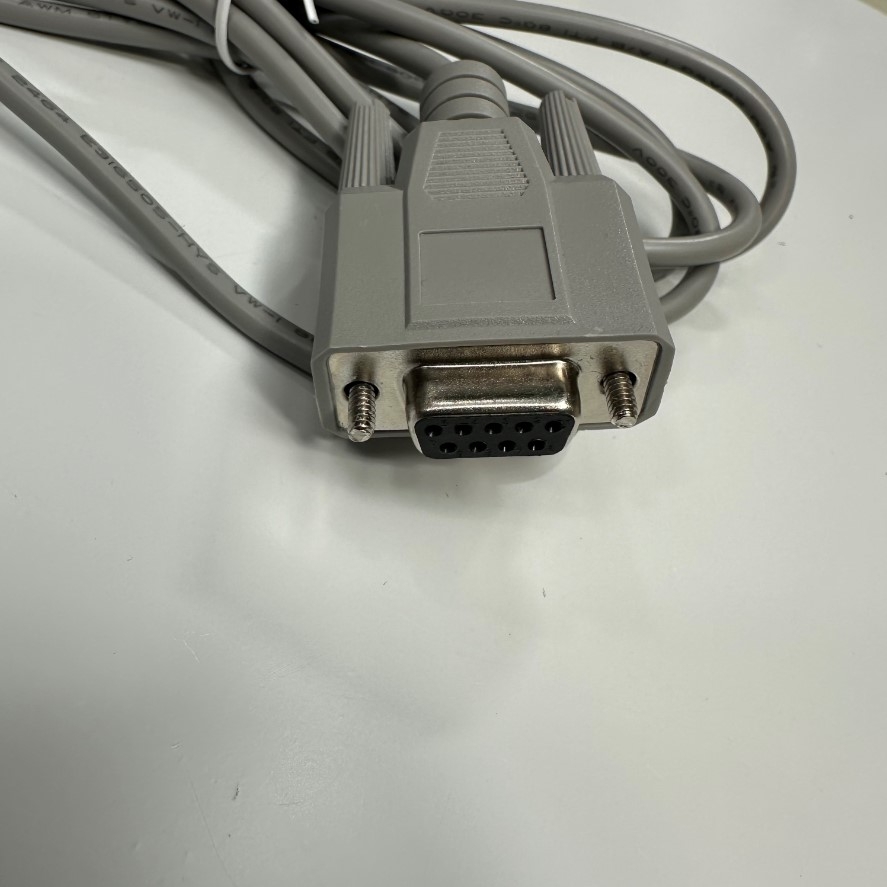

Connector RS232 DB9 Female with Computer

Digital Scale ХК3118Т1 KELI Sensor

Scale Indicator Keli Weighing Indicator ХК3118Т1 KELI Sensor

RS232 communication interface
interface RS-232 Port GX12 5 Pin Male

Serial Port Cummunication interface RS-232

Specifications
Brand: ViệtNam/Thientruongpc Balance Cable
Model number: interface RS-232 Port GX12 5 Pin Cable
Connector Type 1: GX12 5 Pin Female Circular (KELI ХK3118Т1 Balance)
Connector Type 2: DB9 Female D-Sub Type Solder (Computer)
Number of Conductors: 3 x 0.15mm²
Conductor Size AWG: 26AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Outer diameter: 4.0mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 3M ~ 10ft
Cáp 3M 10ft RS232 Truyền Dữ Liệu Cân Đến Máy Tính Cable Connector GX12 5 Pin Female to DB9 Female For Weighing measuring indicator KELI ХK3118Т1 with Computer Data Communication Cable
