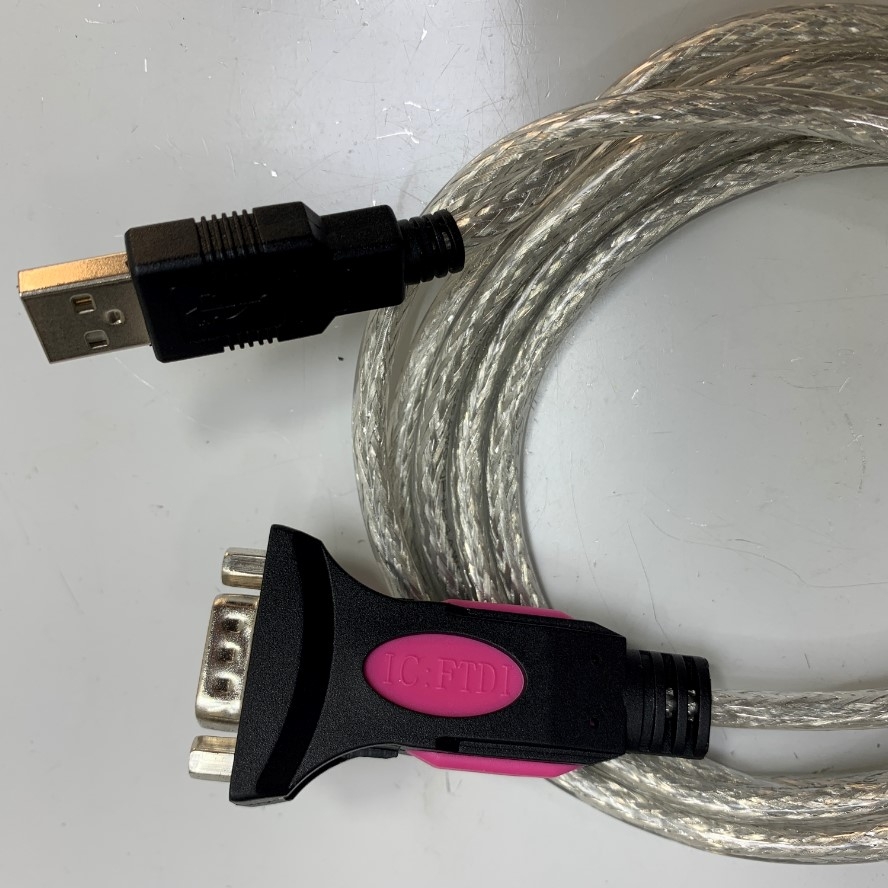

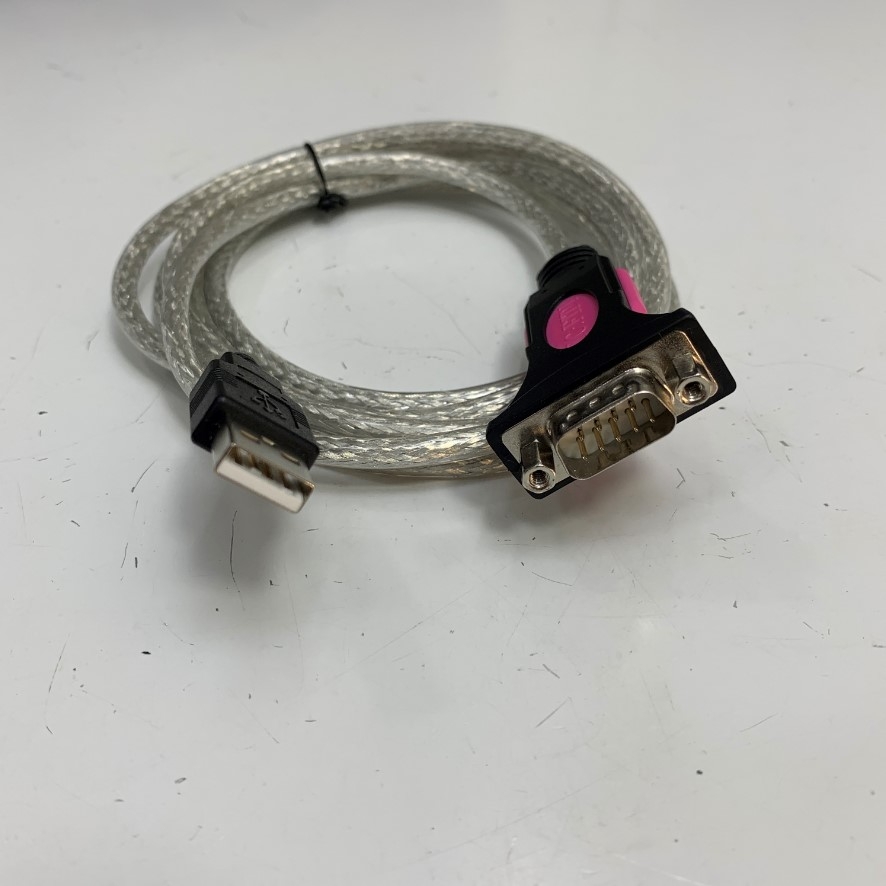

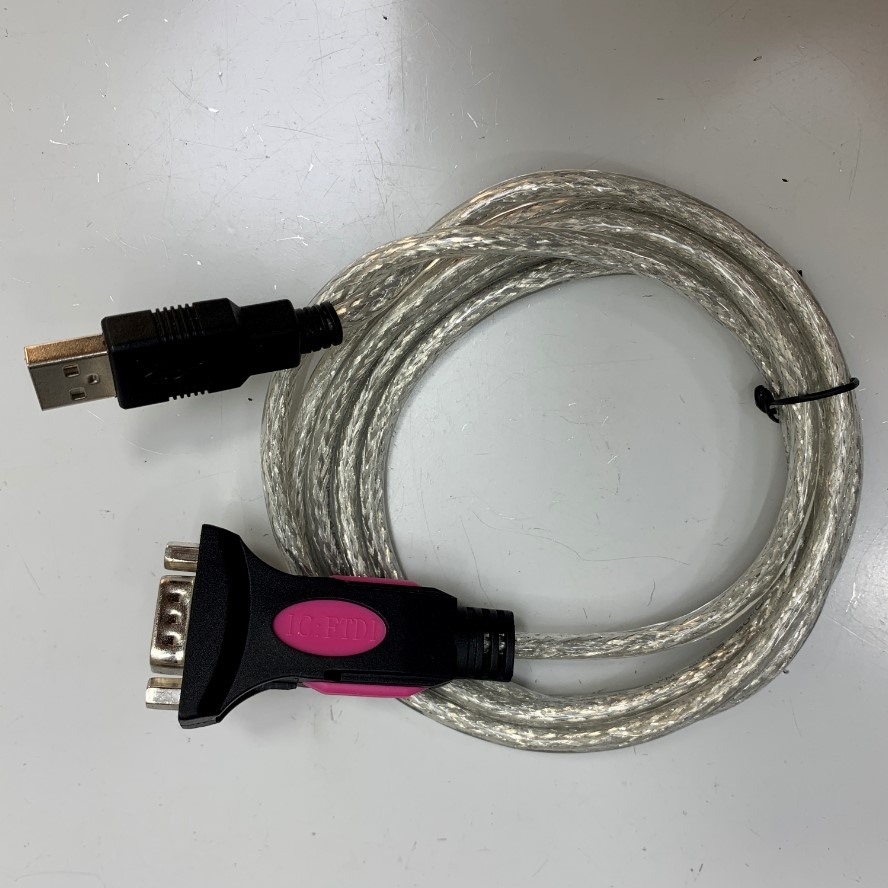

Cáp 1.8M 6ft USB 2.0 to RS232 Male FTDI Chip Cable 1.8 Meter For Motor Servotronix CDHD C7 Serial Cable Communication

Chi Tiết Sản Phẩm

Communication USB to Serial Adapter FTDI Chip

CDHD Servotronix Stepper Driver Controller C7 to PC Config Console Program Cable

Specifications
Connector(s)
Connector Type(s)
1 - USB 2.0 Type-A (4 pin, 480Mbps)
1 - DB-9 Male (9 pin, D-Sub)
Hardware
Ports: 1
Interface: Serial
Bus Type: USB 2.0
Port Style: Cable Adapters
Chipset ID: FTDI
Cable Length (ft.): 1.8M ~ 6ft
Performance
Serial Protocol: RS-232; RS232C
Max Baud Rate: 115.2 Kbps
Data Bits: 7, 8
FIFO: 256 Bytes
Parity: None, Odd, Even, Mark, Space
Stop Bits: 1, 2
Compatibility
Windows® PocketPC 2003, Windows Mobile 5/6, CE 4.2/5.2, Embedded System 2009, POS Ready 2009, 98SE, 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2016, 2019, 2022
macOS 10.6 to 10.15, 11.0, 12.0, 13.0, 14.0
Linux 2.4.x and up - LTS Versions only
Cáp 1.8M 6ft USB 2.0 to RS232 Male FTDI Chip Cable 1.8 Meter For Motor Servotronix CDHD C7 Serial Cable Communication
