Cáp 1.8M 6ft Cable SEL-C234A Serial RS232 Connector DB9 Male to Female Cable Shielded For Rơ Le Bảo Vệ Đường Dây SEL-751 Feeder Protection Relay witch Computer/HMI Data Communication

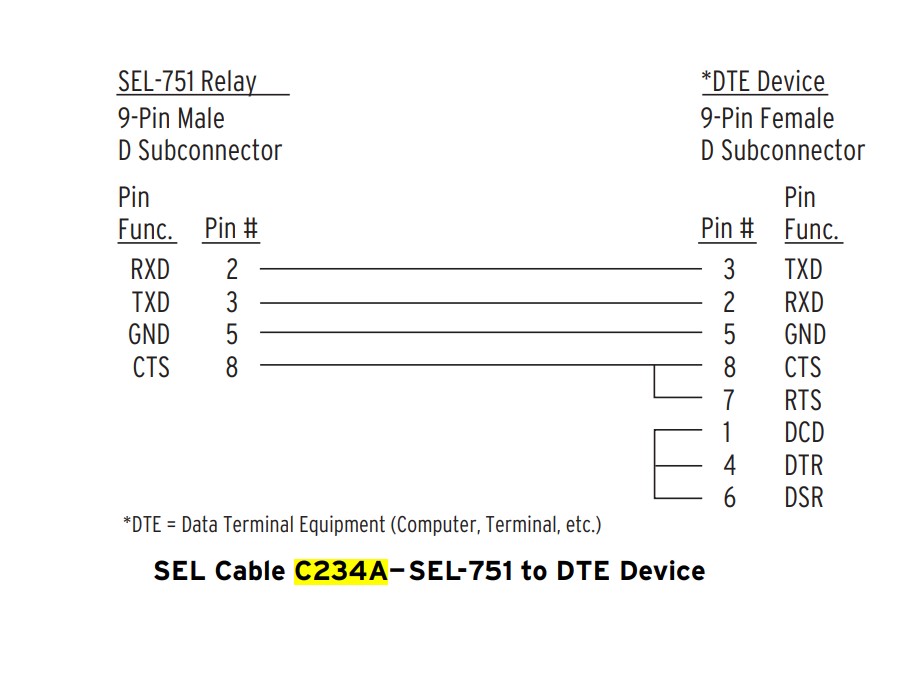

SEL Cable C234A-SEL-751 to DTE Device

Port Connector and Communications Cables

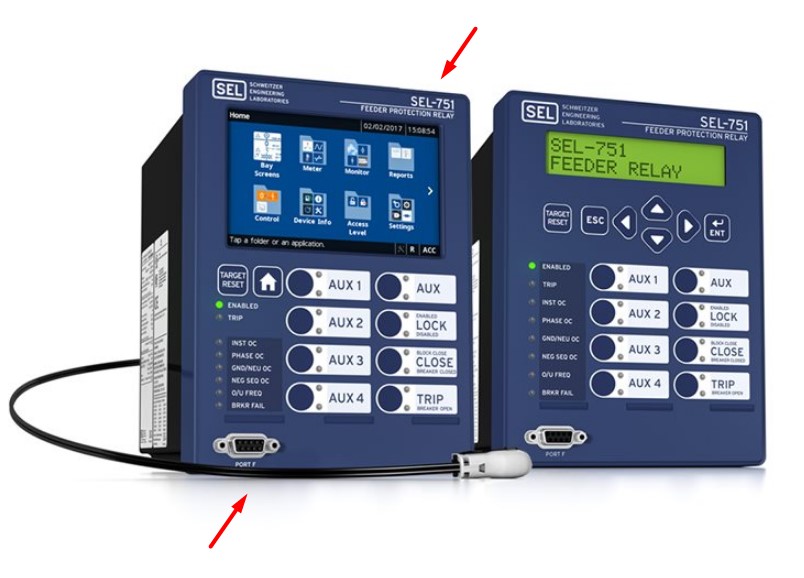

SEL-751 Feeder Protection Relay Schweitzer

SEL-C234 EIA-232 Serial Cable

Specifications
Brand: ViệtNam/Thientruongpc
Hàng theo tiêu chuẩn Việt Nam SEL-751 Feeder Protection Relay Computer or Terminal to a DTE device with a 9-pin female connector Interface Data Communication
PartNumbe: SEL Cable C234A-SEL-751 to DTE Device witch Computer Communication Data Transfer

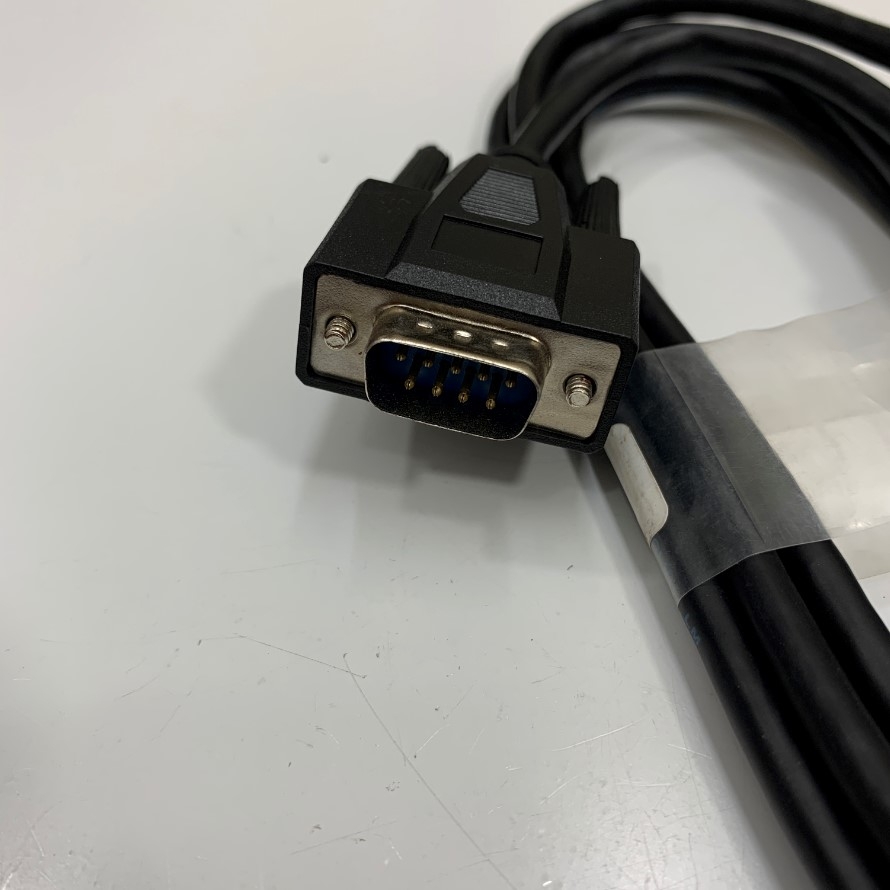

Connector 1: RS232 DB9 Male (SEL-751 Feeder Protection Relay)

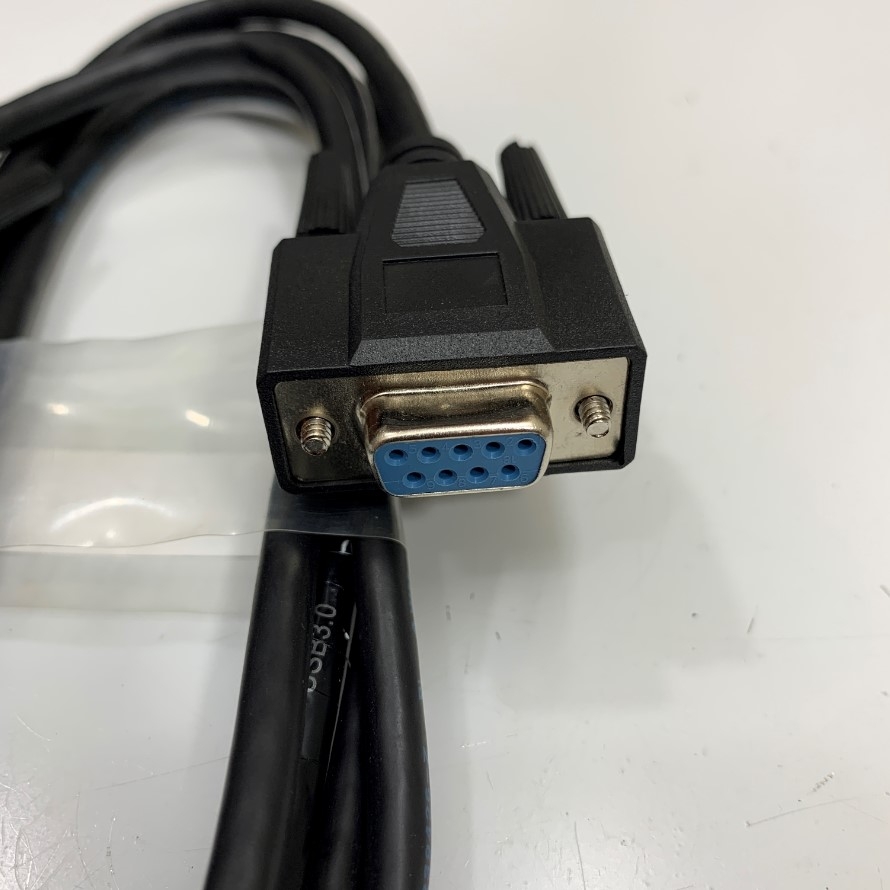

Connector 2: RS232 DB9 Female (Computer/HMI/PLC)

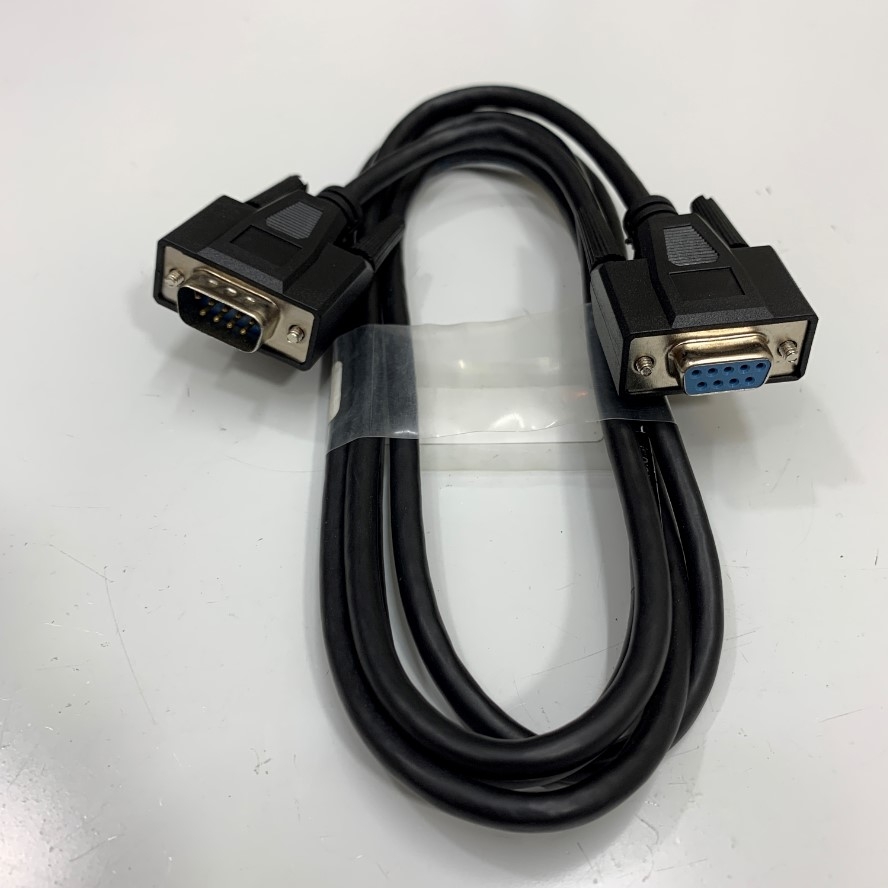

Cable Type: Serial Null Modem RS-232C DB9 Male to DB9 Female Cable
Connectors: RS-232C DB9 Male to DB9 Female
Connector plating: Nickle Plated
Wire: Cable Shielded 28AWG 80°C 30V OD 5.8mm
Wire Gauge (AWG): 28 AWG
Jacket Material: PVC 80C VW-1
Voltage Rating: 30V
Cable Style: Round
Wire Diameter (mm): 5.8mm
Shielding: Yes
Length : 1.8M ~ 6ft
Shield structure: Shielded
Temperature flexible: -5° to +80°
Temperature fixed: -40° to + 80°
Material: Cu
Cáp 1.8M 6ft Cable SEL-C234A Serial RS232 Connector DB9 Male to Female Cable Shielded For Rơ Le Bảo Vệ Đường Dây SEL-751 Feeder Protection Relay witch Computer/HMI Data Communication
