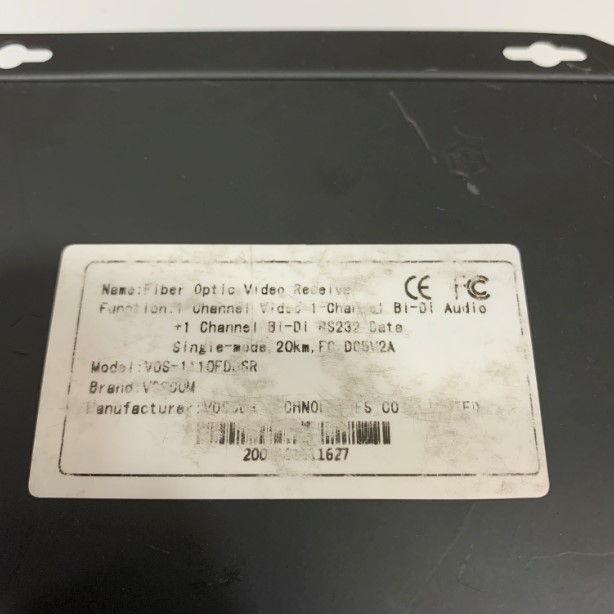

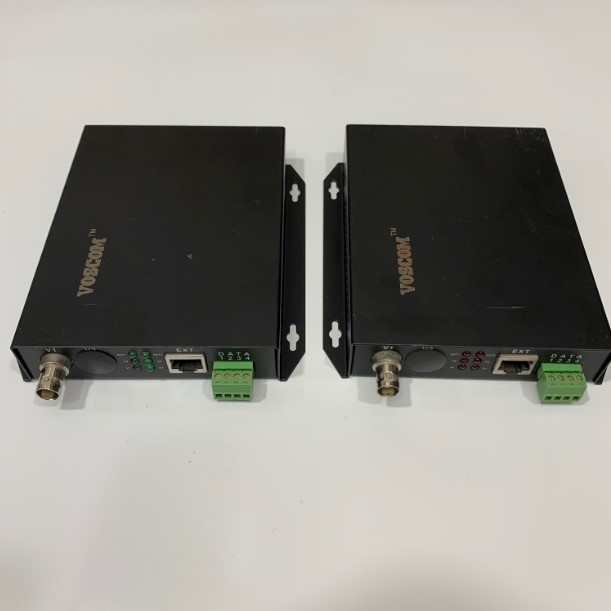

Bộ Chuyển Đổi Quang Đã Qua Sử Dụng Media Converter VOSCOM VOS-111OFDDST VOS-111OFDDSR Single-Mode 20 Km FC/PC or ST/PC Optional

Coaxial to Fiber Optic Converter System Design
Video & Audio & Data Fiber Optic Converter VOS-11101FDDET/R provides for the digital transmission of 1-Channel Composite Video and 1 Duplex audio, 1 duplex data and 10M/100M IP ethernet. Data support RS485, RS232, RS422 protocols. Ideal for Broadcast /Studio, CCTV audio and Professional AV applications.
Stand-alone or rack-mount. All Coaxial to Fiber Optic Converter of VOS-11101FDDET/R come in an insert card version.The cards can be inserted into our 14-slot, 19inch 4U or 6U rack-mountable card cage (VOS-CH04 or VOS-CH06).
Single-Mode or Multi-Mode, VOS-11101FDDET/R can support FC /PC or ST/PC Optical connector, can be used in Daisy-Chain system (Need to customize). The Transmission distance range according to the Optical Budget. Manufacturer's standard is: Single-mode 20km or Multi-mode 2km.
Coaxial to Fiber Optic Converter Features

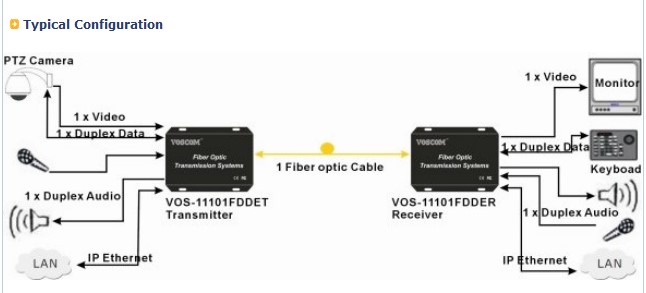

• Support Point-to-Point or Daisy-Chain connection
• Uncompressed Digital Composite Video over one fiber
• 24-Bit Digitally Encoded Analog Audio over one Fiber
• Data support RS485(2-wire or 4-wire),RS232,RS422, Contact Closure
• Compatible with all PAL, NTSC,SECAM Video Systems
• Multimode Fiber Support for Distances up to 2 km
• Single-Mode Fiber Support for Distances up to 100 km
• LED Status Provide Rapid Indication of Operating Parameters
• No EMI or RFI and no ground loops
• Stand alone or rack-mount
Specifications
• Video
Number of Channels: 1 Channel Video
Video input/output impedance: BNC 75 Ω
Video input/output Compatibility: PAL, NTSC,SECAM
Video input/output voltage: 1.0 Volt p-p
Bandwidth: 6.5MHZ
Bit Resolution: 8-Bit Digital Transmission
Differential Gain: < 1.5%
Differential Phase: < 1.5 °
Tilt: < 5%
Signal-to-Noise Ratio(SNR): > 67 dB
• Audio
Number of Channels: 1 Channel Duplex Audio
Audio input/output Level: 6 dBm
Audio input/output impedance: 600 Ω Unbalanced
Bandwidth: 20Hz ~ 20KHz
Bit Resolution:24-Bit
Signal-to-Noise Ratio(SNR): > 80 dB
• Data
Data Formats:    RS485(2-wire or 4-wire),RS232,RS422,Contact Closure
Data Rate: DC to 115.2Kbps
Bit Error Rate: 10E-9
• Ethernet/IP
Standard: Ethernet IEEE 802.3 (Auto-Negotiation)
Data Rate: 10/100 Mbps
Connector: RJ-45, Auto MDI/MDI-X
• Connectors
Video:    75 Ohm BNC (Gold Center Pin)
Audio:     Terminal Block
Data: Terminal Block
Optical: FC/PC or ST/PC Optional

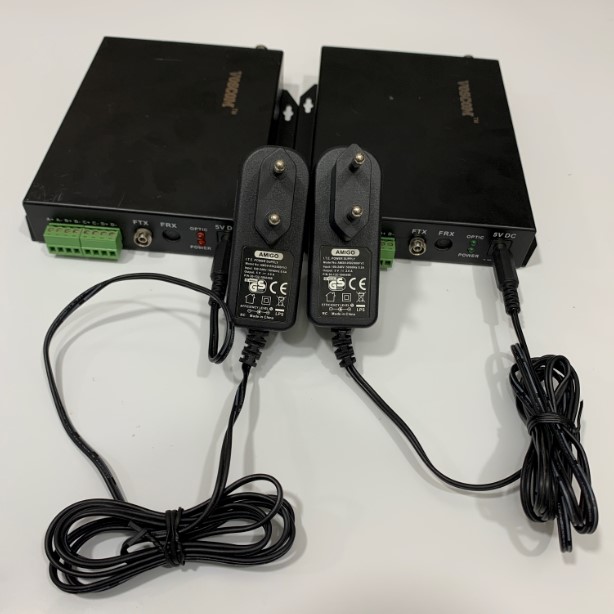

Stand-Alone Power: Screw terminal block
Rack Power:     AC line cord
• Electrical & Mechanical
Input Power Requirements: DC 5V@2A
Power Adapter: AC 100V~240V
Power Consumption:     < 3W
Stand-Alone Dimensions: 142mm × 107mm × 25mm
Card for 4U Rack Dimensions:     145mm × 170mm × 20mm
Shipping Weight: 1.8kg (include Transmitter & Receiver)
