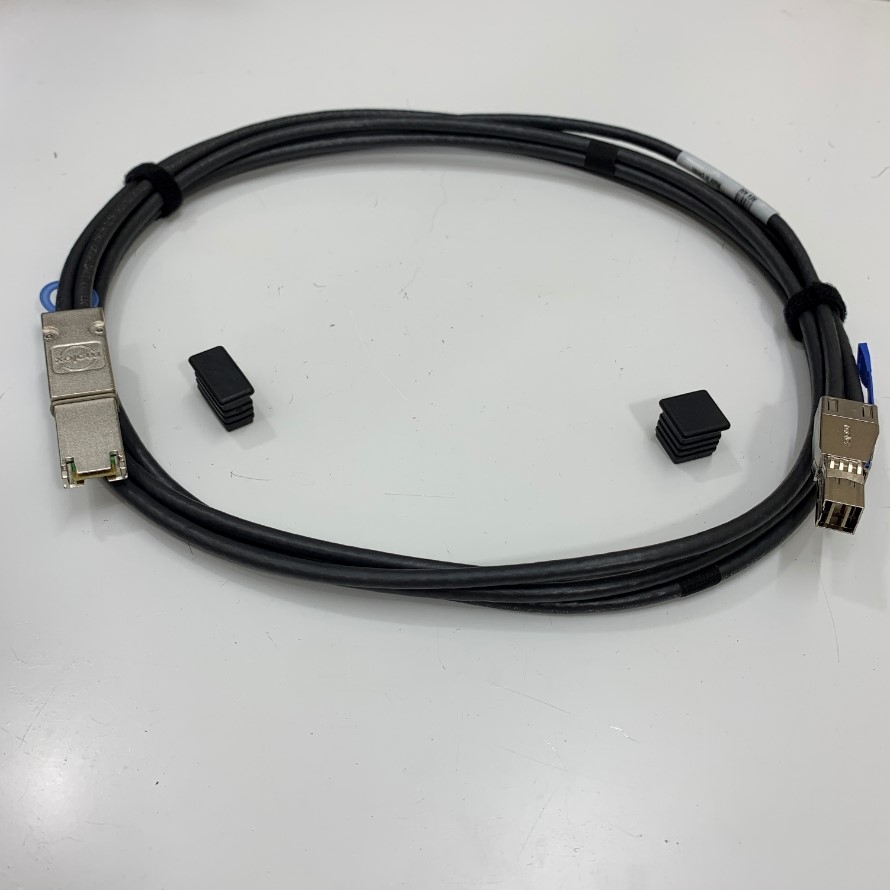

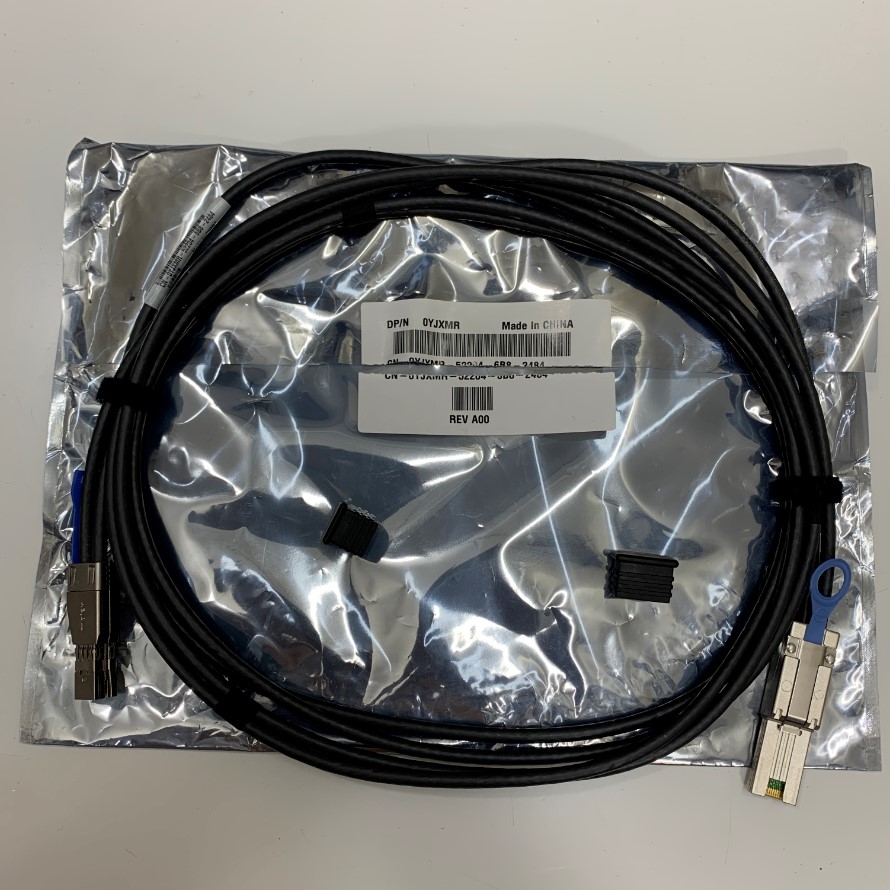

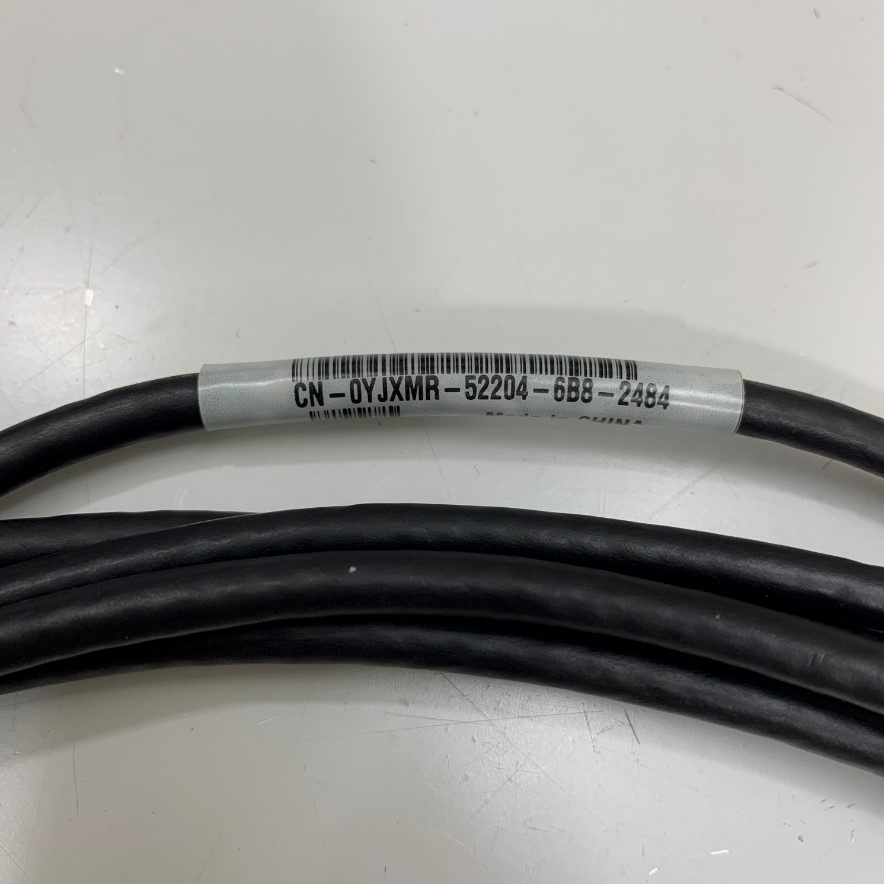

Cáp Dài 2M 6.5ft Dell CN-0YJXMR-52204-6B8-2484 Molex External HD Mini-SAS SFF-8644 to SFF-8088 External Cable

Mã SP: 9193

Thương hiệu: Molex/Dell Cable

Loại sản phẩm: SAS SFF-8644 to SFF-8088

Đánh giá

:

Giá

:

1.200.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/Molex-Dell
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online

Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
: vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800

‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

Dell HD2 Mini SAS SFF-8644 to SFF-8088 External Cable 2M
Product description
Brand: Dell
Part #: 0YJXMR
Manufacturer: Dell/EMC
Connectors

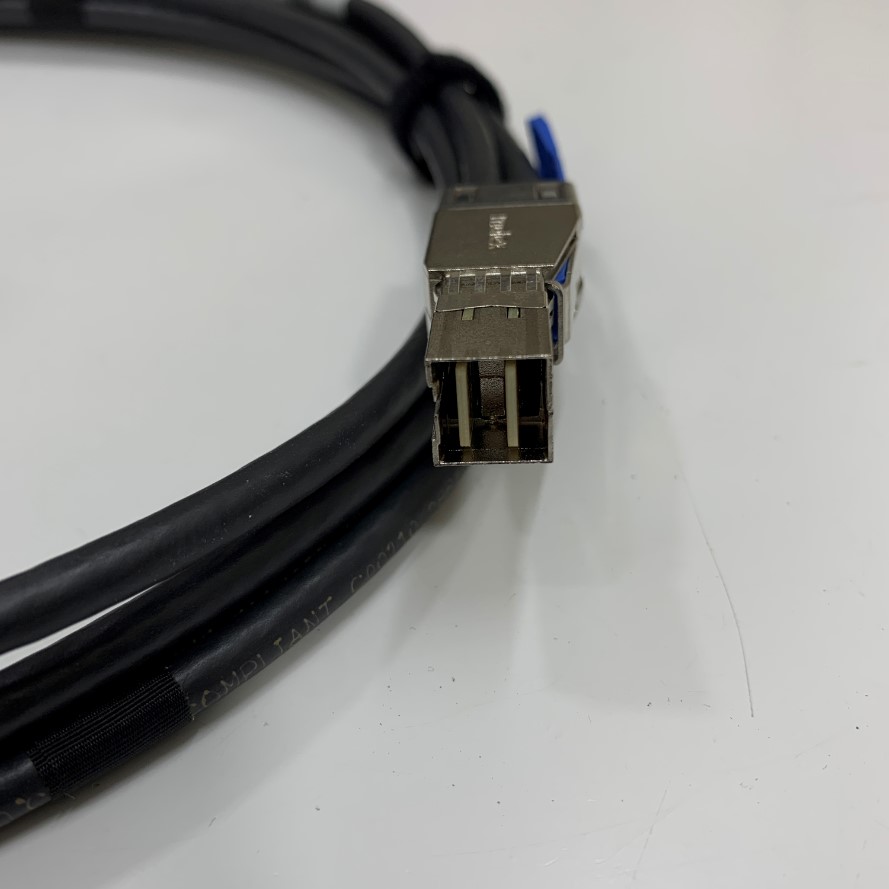

Connector A: SFF-8644 (4x HD Mini SAS - Molex Connector)

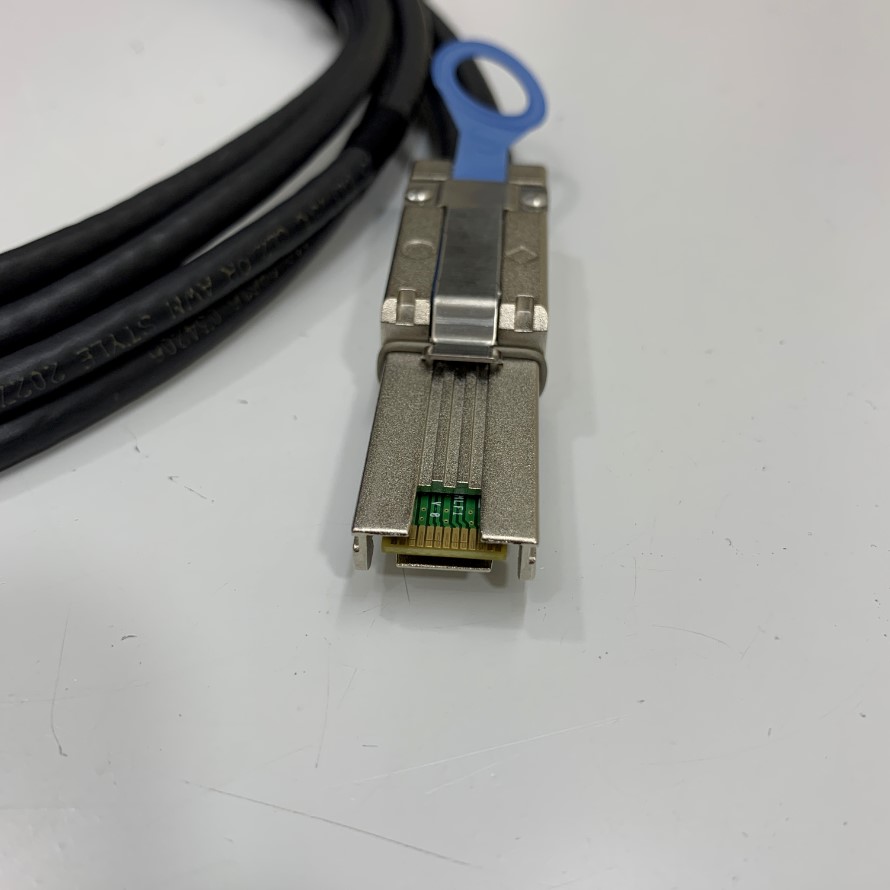

Connector B: SFF-8088 (4x Mini SAS) - Molex Connector)
Plated Connector: Gold
Color: Black
Length: 2M
American Wire Gauge (AWG): 28AWG
Dual Cable Diameter: 2x Ø 5.5 mm
Cable MOLEX 4 PAIR 28 AWG EXF E116273 (UL)  75°C CL2 OR AWM STYLE 20276 80°C 30V ROHS COMPLIANT
Impedance = 100 Ohms
This cable is used to connect SAS 6G to SAS 12G controllers or other SAS devices
Data Rate: 6Gbps per channel
Fully compliant SAS 3.0 interface specifications
Excellent EMI performance
Signal Integrity 1. Mated Connector Impedance: 100 ohm±15%
Cable Absolute Impedance: 100 ohm±10%
Applications:
DATA Center
Servers, Storage racks, RAID systems
External Storage Systems
SAS/SATA HBA interfaces
Direct-attached storage (DAS)
Switches

Cáp Dài 2M 6.5ft Dell CN-0YJXMR-52204-6B8-2484 Molex External HD Mini-SAS SFF-8644 to SFF-8088 External Cable
Cable with SFF-8088 to SFF-8644 (external Mini SAS x4 connector 26-pin to 36-pin external Mini SAS hybrid connector) connection, for connecting hardware in racks and across adjacent racks. Compatible Mini SAS hybrid cables are suitable for connecting SAS devices (such as hard drives, controllers, storage area network hardware, etc.).  Cables support transmission rates of up to 6Gb/s (with 3Gb/s SAS and 6Gb/s SAS protocol)
